36V Ebike tube battery
36V 10AH LiNiCoMnO2 battery
1. Basic Characteristics
Weight ≤3.3kg

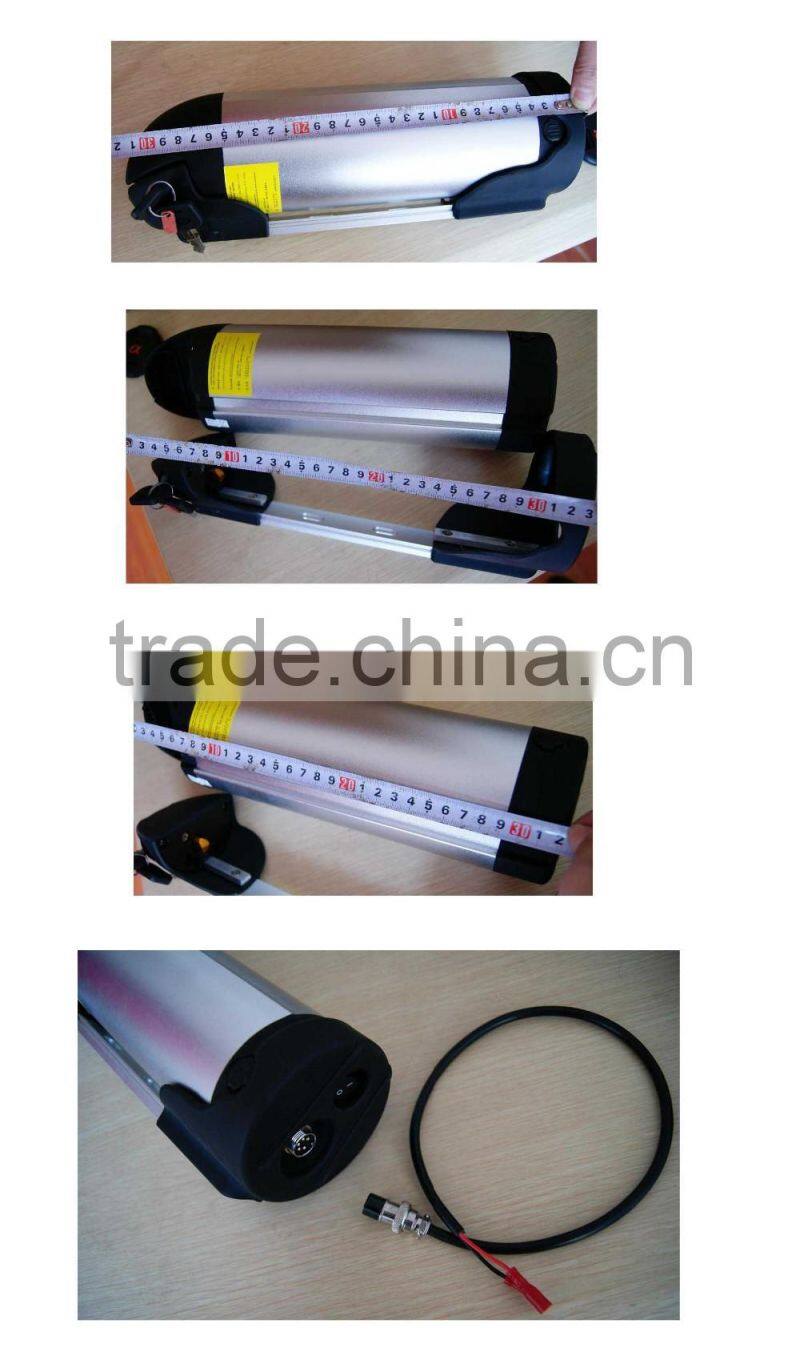

Dimension(D*H):Φ91*415mm
Working temperature :Charge Temperature 0~45°C/ Discharge Temperature:-20~65°C
Retention of charge (store in one month):≥95%
2. Technical Data
Rated Voltage:36V
Rated Capacity C1:≥10Ah
Battery Resistance:≤4 mΩ
Way of Charge: CC/CV(Constant Current;Constant Voltage)
Standard Charge Current: 2A
Max Charge Current :5A
Max Charge Voltage :42V
Cell OverCharge Protection Voltage: 42V
Standard Discharge Current:10A can be customized
Max Discharge Current: 20A can be customized
Discharge Cut-off Voltage:24V
Cell Overdischarge Protection Voltage:24V
QC Standard for Cells:
1. In good light,the surface should be smooth and dry,without crack,score,dirt etc.,the identification 2. should be clear and correct.
3. There should be clear polar identifications,the identification should be correct check by voltage meter.
4. Over discharge--no fire,no explosion,no leakage
5. Over charge--no fire,no explosion
6. Short circuit--no fire,no explosion
QC Standard for Battery Pack:
1. Check all connection included cell to cell, data wires between cells and BMS, BMS to the cell, BMS 2. to the discharging port and charging port
3. 100% capacity at 0.2C discharging and in normal temperature 20°c
4. >98% capacitive at 1.5C discharging and in normal temperature 20°c
5. >95% capacity at normal discharging in very high temperature 55°c
6. >50% capacity at normal discharging in very low temperature -20°c
7. Over-discharging testing
8. Over-charging testing
1. Use at temperature below 40°C,charge fully prior to long storage periods or if it has been stored for more than three months
2. If you find any single battery voltage is under 2V at room temperature,the battery has been over-discharged or is self-discharging due to some defect/parasitic load. Discontinue use until the fault can be corrected and the battery be recharged
3. Store in an open,well ventilated,dry,clean area, between -20°C to 40°C for maximum life. self-discharge will accelerated at higher temperature
4. Don’t expose the battery to extremes of temperature over 60°C,directly to sources of heat, direct sunlight or moisture and/or rain
