Help CenterLithium Ion Battery 36v 10ah
Related Products

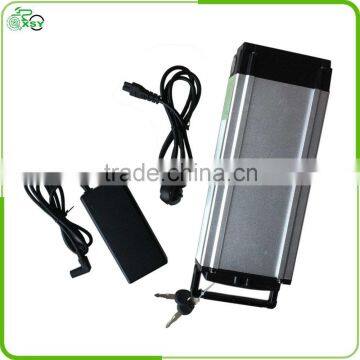

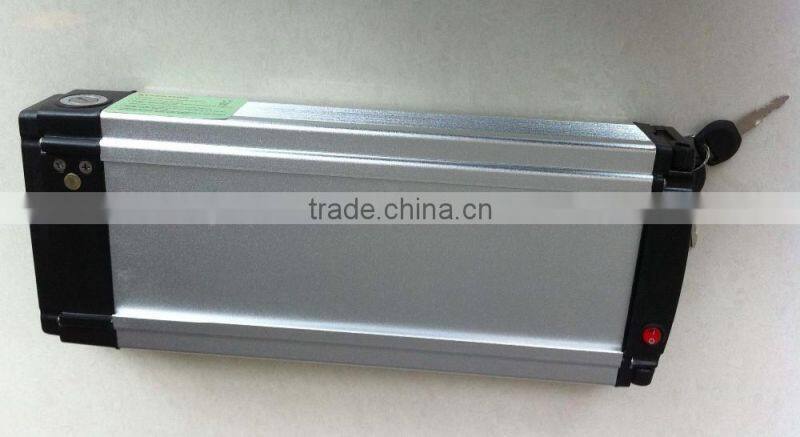

Battery Pack
Battery Material Lithium NCM
Nominal Voltage 36V
Rated Capicaty 10Ah
Pack Dimension(Type B) 68×148×355(mm)
Internal Impedance ≤100mΩ
Max Charge Voltage 42V
Max Charge Current 4A
Min Discharge Voltage 30V
Rated Discharge Current 15A
Max Discharge Current 30A
Charging Mode CC/CV
Pack Weight About4.6kg
Over Current Protection 25A±3A
Cycle Life 800 Cycles
Charge Temperature 0-45℃
Discharge Temperature -20-55℃
Certificates CE,UL

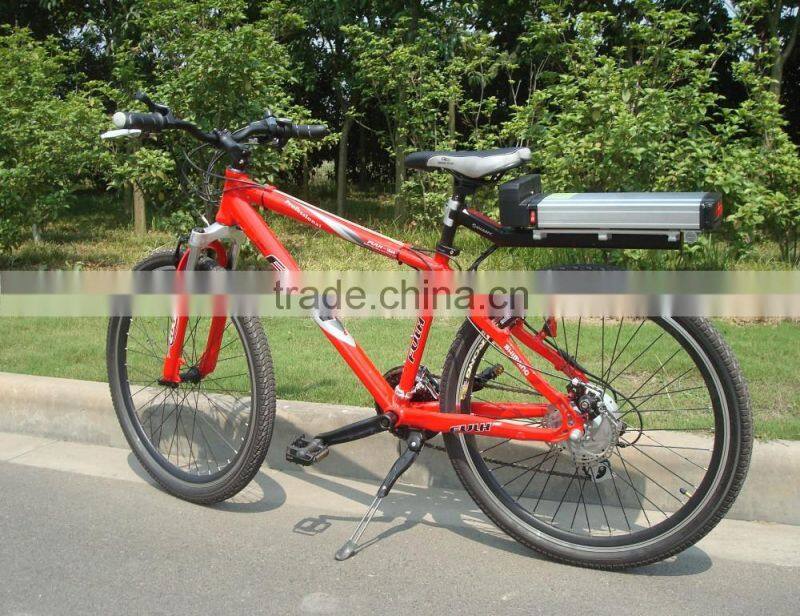

Range with one charge ≥40km (Motor 250W)
Charger
AC Input 100-240V,50/60Hz
DC Output 42V 2A
Charging Time About 5h
Safe Demand CCC CE
Wire Length AC 1m DC 1m
DC Pulg Inside:+ Lateral:-
QC Standard for Cells:
1. In good light,the surface should be smooth and dry,without crack,score,dirt etc.,the identification 2. should be clear and correct.
3. There should be clear polar identifications,the identification should be correct check by voltage meter.
4. Over discharge--no fire,no explosion,no leakage
5. Over charge--no fire,no explosion
6. Short circuit--no fire,no explosion
QC Standard for Battery Pack:
1. Check all connection included cell to cell, data wires between cells and BMS, BMS to the cell, BMS 2. to the discharging port and charging port
3. 100% capacity at 0.2C discharging and in normal temperature 20°c
4. >98% capacitive at 1.5C discharging and in normal temperature 20°c
5. >95% capacity at normal discharging in very high temperature 55°c
6. >50% capacity at normal discharging in very low temperature -20°c
7. Over-discharging testing
8. Over-charging testing
1. Use at temperature below 40°C,charge fully prior to long storage periods or if it has been stored for more than three months
2. If you find any single battery voltage is under 2V at room temperature,the battery has been over-discharged or is self-discharging due to some defect/parasitic load. Discontinue use until the fault can be corrected and the battery be recharged
3. Store in an open,well ventilated,dry,clean area, between -20°C to 40°C for maximum life. self-discharge will accelerated at higher temperature
4. Don’t expose the battery to extremes of temperature over 60°C,directly to sources of heat, direct sunlight or moisture and/or rain
