Automatic Vertical powder packing machine for ground coffee
- 500 Set / Sets per Month
- Guangzhou/Shenzhen/Foshan
- T/T
- CE certificated hydraulic press/Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
- 20 years manufacturer, automatic hay and straw baling machine
- more than 20 years factroy supply CE certificated used clothes and textile baling machine
- more than 20 years factory supply Hard plastic/ Fiber/Cotton/Woolen/Clothes/Textile Baler machine press
- more than 20 years factory supply plastic baler machine
- more than 20 years factory supply Clothes/Bedclothes/Cotton/Woolen/Textile Baler machine
Product Details
Condition: | New | Application: | Chemical, Commodity, Food, Other, Medical, Textiles, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, Packing powders | Packaging Type: | Bags, Pouch, Stand-up Pouch |
Packaging Material: | Plastic, Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 220V,50HZ | Power: | 4kw | Place of Origin: | Guangdong, China |
Brand Name: | CHLBAO | Model Number: | CB-5240-PA | Weight: | 600kg, 600kg |
Dimension(L*W*H): | 1150*1795*1650 | Certification: | BV,SGS,CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Made by full stainless steel;
2.Meet QS and GMP requirement;
3.Mature technology;
4.Full-automatic;
5.Pass the CE.

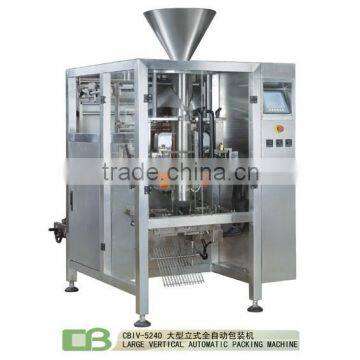

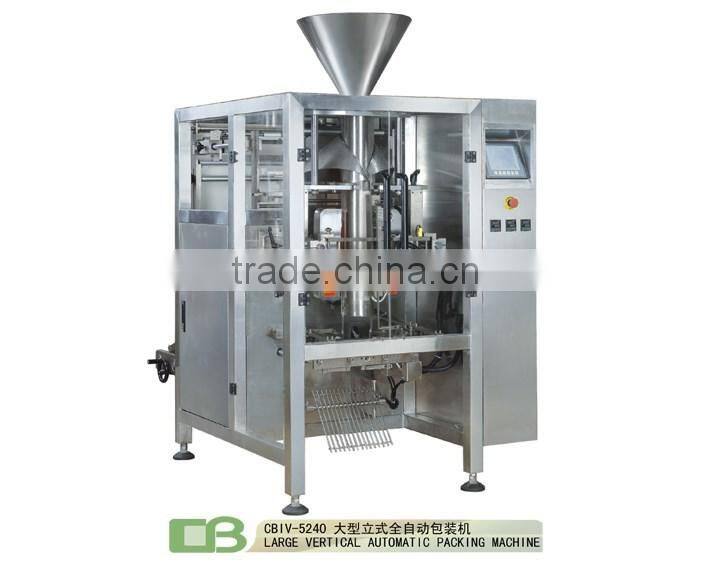

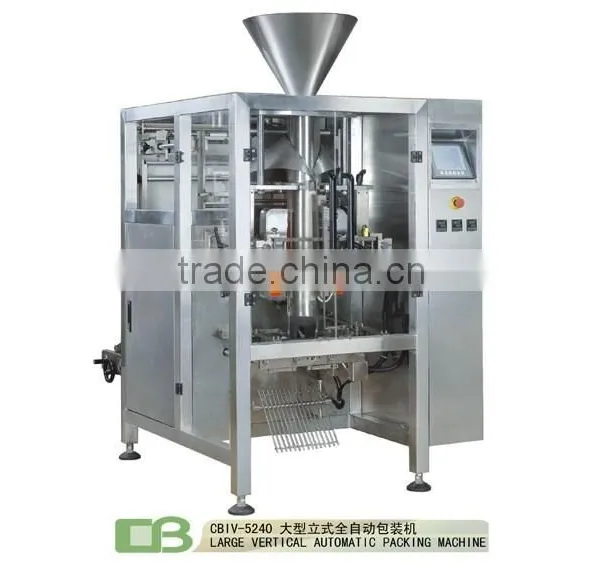

1.Host Machine—— Automatic Vertical ground coffee packing machine CB-5240-PA
Application:
Suit for the quantitative weighingof Popcorn, dry pasta, Meatball, Macaroni, hamburgers, oats, washing powder, puffed food, French Fries, biscuit, rice crust, jelly, candy, pistachio nut, apple flake, dumpling, rice dumpling, chocolate, hardware and medicine such particle, platy, strip and irregular shape.
Functional Description:
1.PLC control with stable,reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing, cutting , finished in one operation.
2.Separate circuit boxes for pneumatic control and power control. Noise is low,and the circuit is more stable.
3.Film-pulling with vacuum double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.
4.Double servo control, high precision orientation, size more nicety.
5.External film releasing mechanism: simpler and easier installation of packing film.
6.Adjustment of bag deviation just needed to be control the touch screen.Operation is very simple .
7.Close down type mechanism, defending powder into inside of machine.
Model | P1-520-WA |
Bag size | L (80-400) * W (50-250) mm |
Packing speed | 5-60 bags/min |
Measuring range | 3000 ml (max) |
Max width of film roll | ≤520 mm |
Air consumption | 0.65 mpa |
Gas consumption | 0.3m3/min |
Power requirement | 220 V, 50 HZ |
Machine size | L 1150 * W 1795 * H 1650 mm |
Machine weight | 600KG |

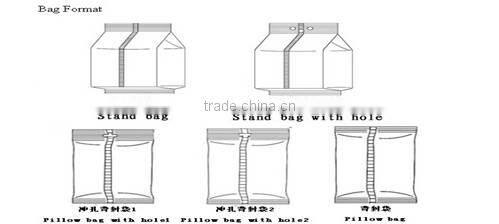

Sealing Type
|

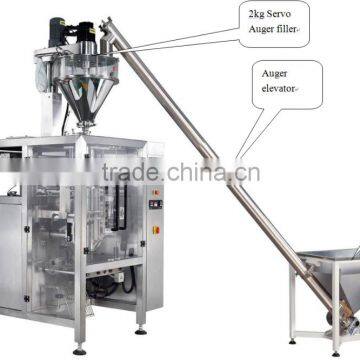

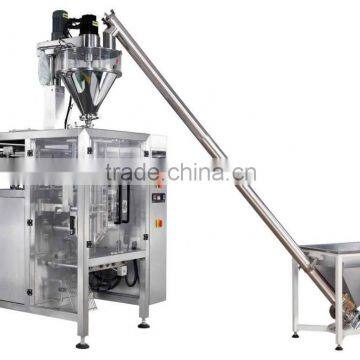

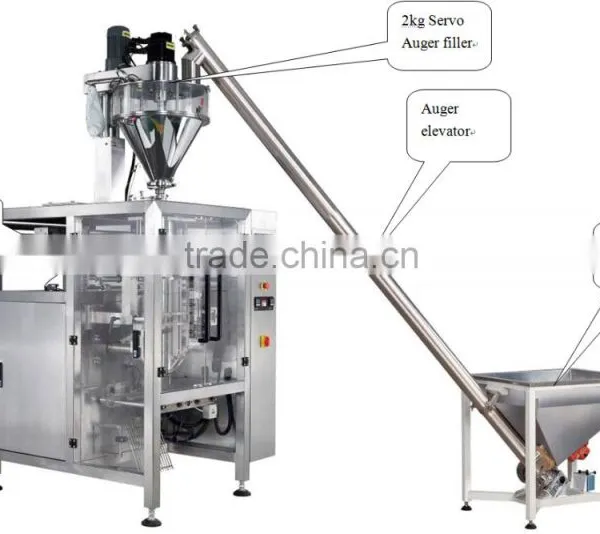

2.The whole set of auger
Specification:

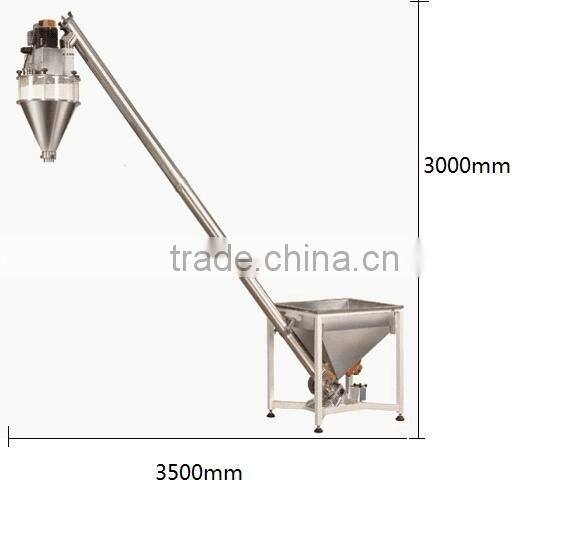

Auger elevator parameter | |
Lifting height: | 3.0m |
Lifting volume: | 3 cubic meter/hour |
Specification: | Customized available |
Material: | Stainless steel |
Power: | 220v or 380v |
Feeding speed: | 30m/min |
Auger doser parameter | |
Filling system: | auger |
Volume: | 10-5000g(change auger) |
Weighing range: | 10-6000g |
Accuracy: | Volume<100g.Bias:0.5-1g |
| Volume:100-1000g.Bias:0.5%-1% |
| Volume>1000g.Bias:0.25%-0.5% |
Filling speed: | 10-50bags/min |
Power: | 220v or 380v |
Total power: | 1.5kw |
Material hopper: | 50L |
Weight: | 200kg |

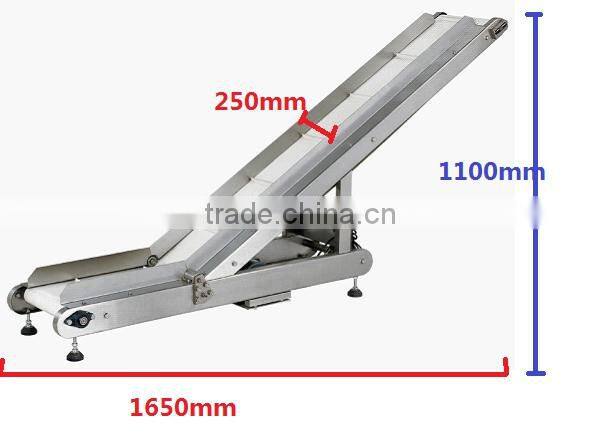

3. Finished product conveyor
Feature:
Delivery speed: 50m/min
Voltage: 220V/50W
Structure:carbon steel
4.Spare part and origin
Spare parts list | |||
No. | SPECIFICATION | unit | terms |
1 | horizontal seal heater inductor | 2pcs | Free of charge |
2 | vertical seal heater inductor | 1pcs | |
3 | Cutter | 1pcs | |
4 | thermocouple | 1pcs | |
5 | move film belt | 2pcs | |
6 | Proximity switch | 1pcs |
Component list | ||
No. | Name | General equipment |
1 | PLC touch scree | Siemens /Germany |
2 | PLC | Siemens /Germany |
3 | Servo motor | Delta / Taiwan |
4 | Control temperature | Yudian/Xiamen |
5 | Colour code photoelectricity | Autonics/Korea |
6 | Cylinder | Airtac/Taiwan |
7 | Electromagnetic valve | Airtac/Taiwan |
8 | FRL combination | Airtac/Taiwan |
9 | Throttle | Airtac/Taiwan |
10 | Mid- relay | Omron/Japan |
11 | Solid state relay | YangMing/ Taiwan |
12 | Proximity switch | YangMing/ Taiwan |
13 | Button switch | Schneider/France |
14 | Power switch | Schneider/France |
15 | Residual Current Device switch | Schneider/France |
16 | Switch power(3.6A) | Schneider/France |
1) Free consultation service before, during, and after sales;
2) Free project planning and design services;
3) Free debugging of equipment until everything is functional;
4) Free management of equipments' long distance shipping;
5) Free training of equipment maintenance and operating personally;
6) Free new production techniques and formulas;
7) Provide 1 year complete warrantee and lifetime maintenance service.
Why Choose Us
• With more than 10 years expertise and experience.
• Embrace flexibility and professionalism.
• No lowest price but always value for money.
• We treat our staffs and suppliers as respectful partners.
• We keep stock of electronic components, touch displays, motors, etc. ready for immediate delivery.
• Provide customized services for special orders according to specifications.
Long-term customers are happy customers and repeated customers:The goal of our activities is the long-term satisfaction of our customers by the supply of easy-use and reliable equipment.
