Milk Processing and Milk Powder ,milk Tea Packaging Machine

Milk Processing and Milk Powder ,milk Tea Packaging Machine thumbnail-1
Milk Processing and Milk Powder ,milk Tea Packaging Machine photo-1
US$ 10,000 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type:
Pouch, Stand-up Pouch
Contact Supplier Request Quote Chat Now
Foshan Chuanglibao Packaging Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FS/GZ/SZ
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Chemical, Commodity, Food, Other, Medical, Chemical, Commodity, Food, Machinery & Hardware, Medical
Packaging Type Pouch, Stand-up Pouch
Packaging Material Plastic, Wood
Automatic Grade Automatic
Driven Type Other, Sevor
Voltage 220V
Power 2.2KW
Place of Origin Guangdong, China
Brand Name chlbao
Model Number CB-4230PA
Weight 540Kg
Dimension(L*W*H) 1080*1300*1400
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

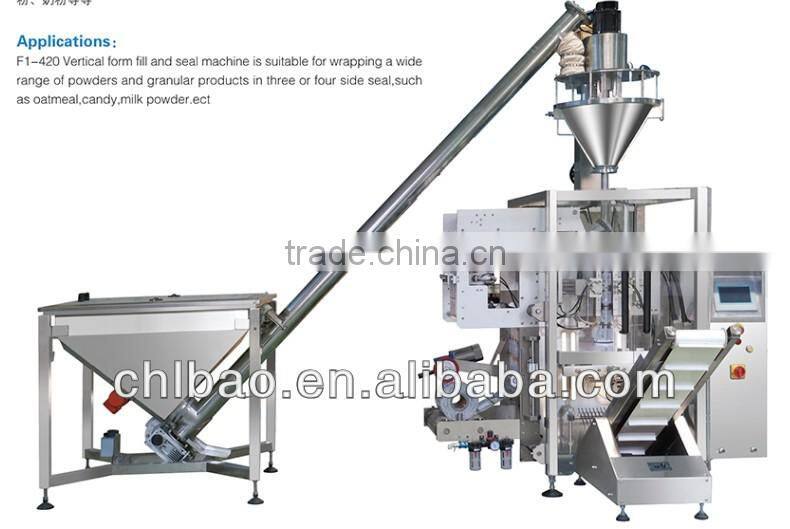

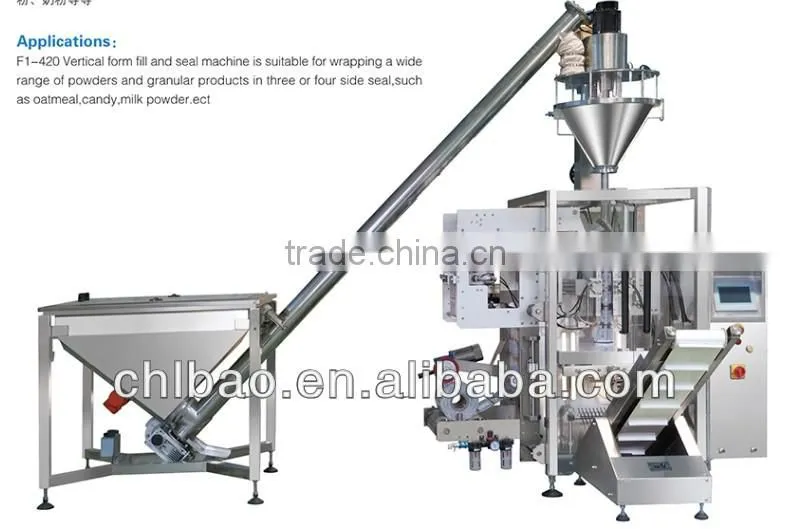

milk processing and packaging machine

CB-4230PA







milk processing and milk powder ,milk tea packaging machine







Scope of application:

Suitable for granule and fluent powder such as sugar, salt, rice, coffee, sesame, forage, MSG

milk processing and milk powder ,milk tea packaging machine

Function Description:

  1. 1. Chinese and English language touch screen display, easy to operate.
  2. 2. PLC computer control system, working is stable, adjust parameters without stopping the machine.
  3. 3. It can save ten parameters, simple to change goods.
  4. 4. Adopted to servo system machine drawing film, position accurately.
  5. 5. Temperature control system independently, accuracy is within ±1°C

Technical Specifications:



Model

CB-4230

Bag size

L (80-300) ×W (50-200) mm

Packing speed

5-60 bags/min

Measuring range

150-1200 ml

Max width of film roll

≤420 mm

Air consumption

0.65 mpa

Gas consumption

0.3 m3/min

Power requirement

220 V, 50 HZ, 2.2 KW

Machine size

L 1808 * W 1300 * H 1400 mm

Machine weight

540KG

Optional device:

Item

Specification

Qty(set)

Main machine

CB-4230PM

1

10-head weigher

10 heads

1

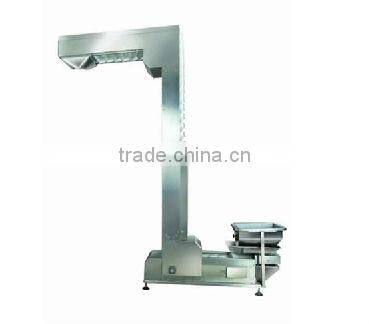

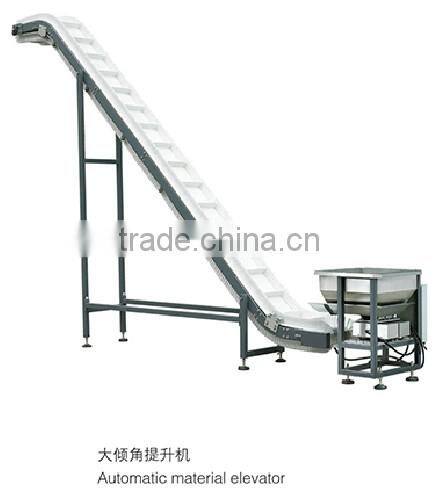

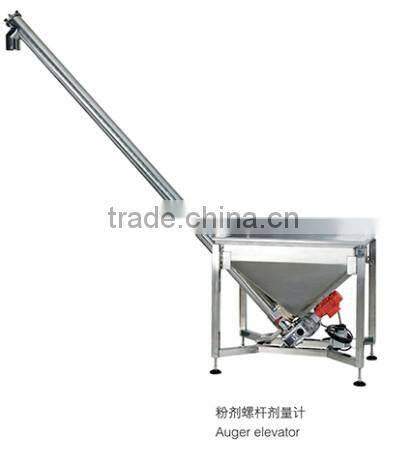

elevator

Z-shape

1

Working platform



1

forming

With the machine

1

Date printer

Regular

1

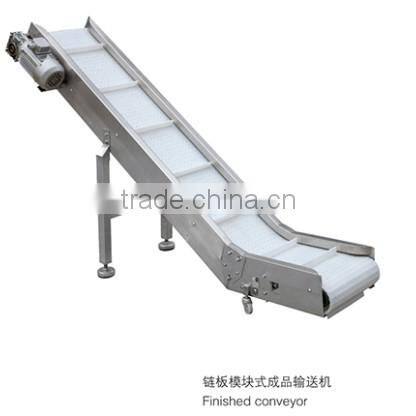

conveyor

130mm

1

Rotary table



1

milk processing and milk powder ,milk tea packaging machine

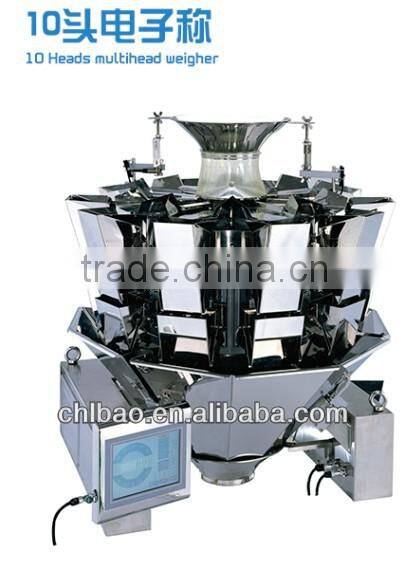

Name

10-head

New-version

Model

BO-2/10-2.5

Hopper size

2.5L

Weighing range

10-1500g

Weighing accuracy

±0.1-1.5g

Weighing speed

Max.80bpm

Structure

Carbon steel /Stainless steel

Controller

10.4” Touch screen

Technical characteristics:

1. High precision data-type weighing sensor realizes precision weighing.

2. Microcomputer control system with double vibration feeding and imported instrument, advanced technology and simple operation.

3. Stainless steel sealed machine body; corrosion resistance and dust resistance.

4. The measuring hopper can be disassembled rapidly; and it’s convenient in cleaning and maintenance.

5. It can make different combination to enlarge according to customer’s requirements.

6.  With strong compatibility, it’s easy to supported with other packing device.

milk processing and milk powder ,milk tea packaging machinemilk processing and milk powder ,milk tea packaging machinemilk processing and milk powder ,milk tea packaging machinemilk processing and milk powder ,milk tea packaging machine

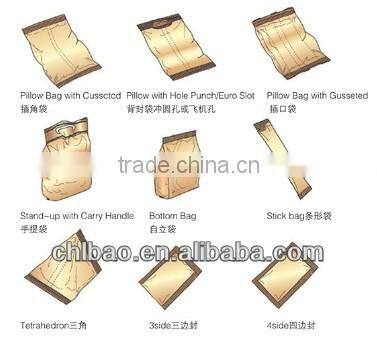

Bag styles:

milk processing and milk powder ,milk tea packaging machine

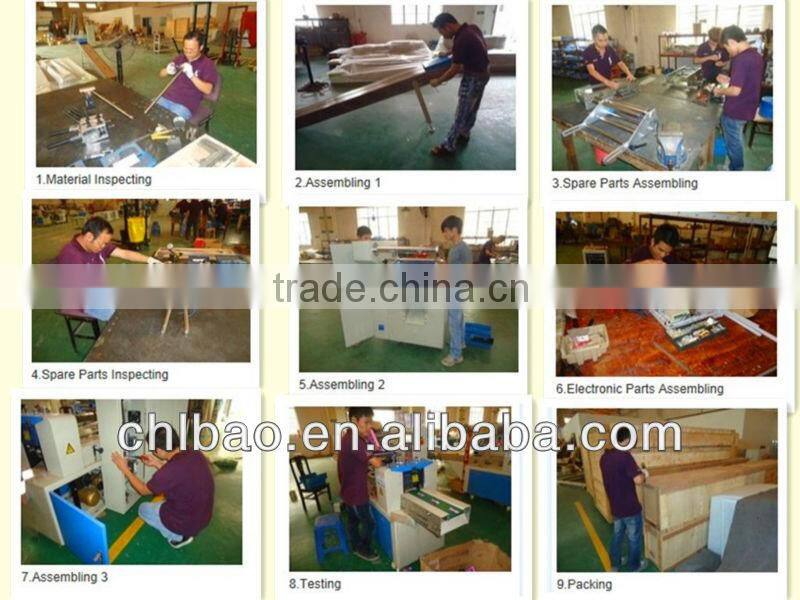

Production flow:

milk processing and milk powder ,milk tea packaging machine

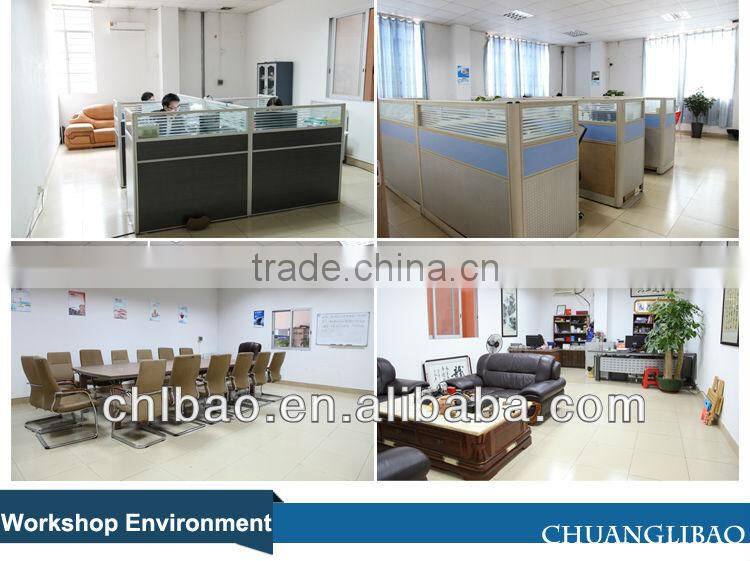

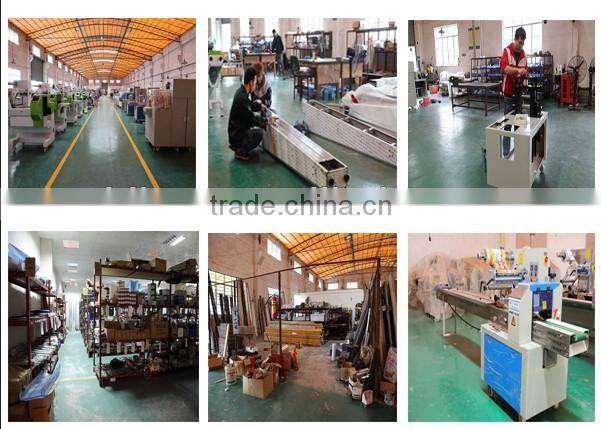

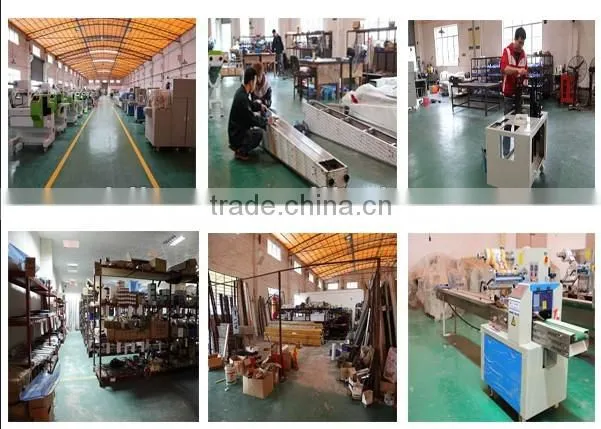

Our workshop:



milk processing and milk powder ,milk tea packaging machine



milk processing and milk powder ,milk tea packaging machine

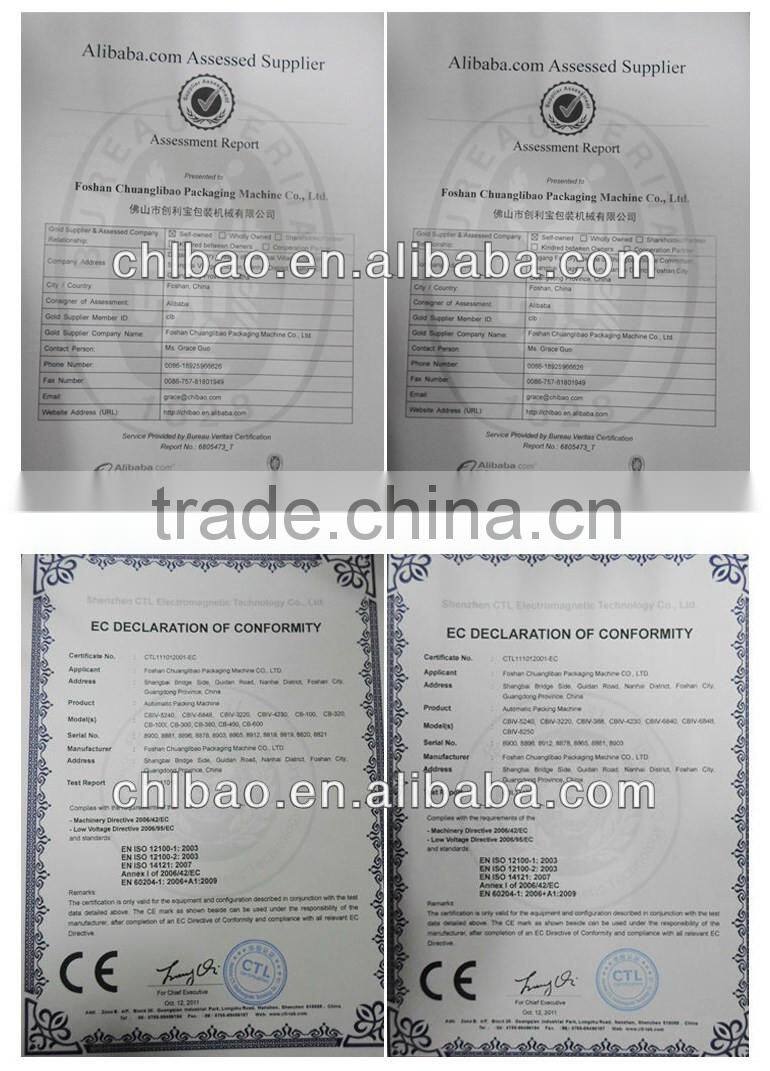

Certificated:

milk processing and milk powder ,milk tea packaging machine



milk processing and milk powder ,milk tea packaging machine

customer service:

1) Free consultation service before, during, and after sales;

2) Free project planning and design services;

3) Free debugging of equipment until everything is functional;

4) Free management of equipments' long distance shipping;

5) Free training of equipment maintenance and operating personally;

6) Free new production techniques and formulas;

7) Provide   1   year complete warrantee and lifetime maintenance service.
