High Grade LC1-D09 9A Electrical Contactor

FOB Price

US$ 8.00 - 8.00 / Piece

10 Pieces(Min. Order)

Port Ningbo Shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	HUPSUN
Model Number	LC1-D09	Electricity Type	AC
Number of Pole	3	Phase	3
Main Circuit Rating Voltage	Other, AC220V/380V	Main Circuit Rating Current	Other, 9A

Product Description

High grade LC1-D09 9A electrical contactor

Product Description

Application

CJX2(LC1) series AC contactor (simplified as contactor in the following) is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 95A, for making and breaking and frequent starting, controlling the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc. It is conbined into the delay contactor, mechanical interlocking contactor, star-delta starter, with the thermal relay, it is combined into the electromagnetic starter.

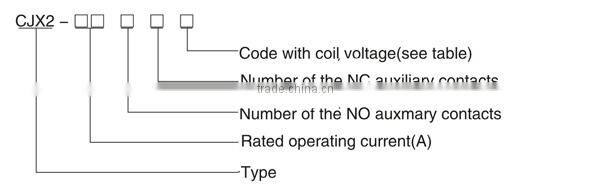

Type and meaning

Coil Voltage (V)

110

127

220

230

240

380

415

440

480

600

680

50HZ

60HZ

60/60HZ

Specification

Type	CJX2- 09	CJX2- 12	CJX2- 18	CJX2- 25	CJX2- 32	CJX2- 40	CJX2- 50	CJX2- 65	CJX2- 80	CJX2- 95
Rated insulation voltage (V)	660	660	660	660	660	660	660	660	660	660
Conventional thermal current (A)	20	25	32	40	50	60	75	80	110	125
Rated operational current	9	12	16	25	30	40	50	63	80	95
Controlled power (KW) 220V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
Controlled power (KW) 380V	4	5.5	7.5	11	15	18.5	22	30	37	45
Controlled power (KW) 415V	4	5.5	9	11	15	22	25	37	45	45
Controlled power (KW) 440V	4	5.5	9	11	15	22	30	37	45	45
Controlled power (KW) 660V	5.5	7.5	10	15	18.5	30	33	37	45	45
Note	The installation of the relays can use two screws and also use the 35mm installation rail					The installation of the relays can use three screws and also use the 75mm or 35mm installation rail

Note: 3P: three NO main contacts; NC: one NO auxiliary contacts; NC: one NC auxiliary contacts.

Specification of coil

Type			CJX2- 09	CJX2- 12	CJX2- 18	CJX2- 25	CJX2- 32	CJX2- 40	CJX2- 50	CJX2- 65	CJX2- 80	CJX2- 95
Closing voltage 50/60Hz(V)			(0.85 ~1.1)Us
Releasing voltage50/60Hz(V)			(0.2~0.75)Us
Coil Power	50HZ	Closing	70	70	110	110	110	200	200	200	200	200
	50HZ	Closed	8	8	11	11	11	20	20	20	20	20
	60HZ	Closing	80	80	115	115	115	200	200	200	200	200
	60HZ	Closed	8	8	11	11	11	20	20	20	20	20
		Consumption	1.8~2.7	1.8~2.7	3~4	3~4	3~4	6~10	6~10	6~10	6~10	6~10

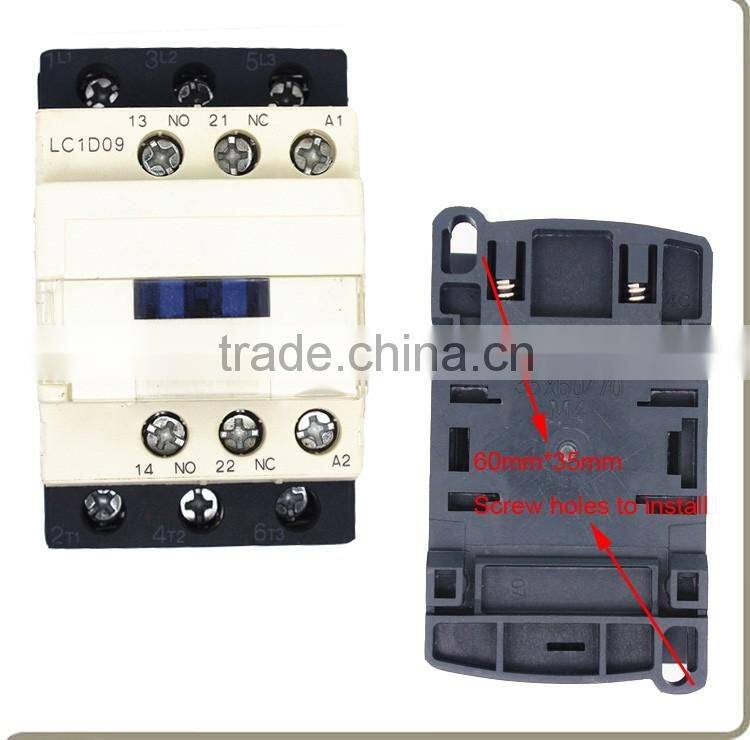

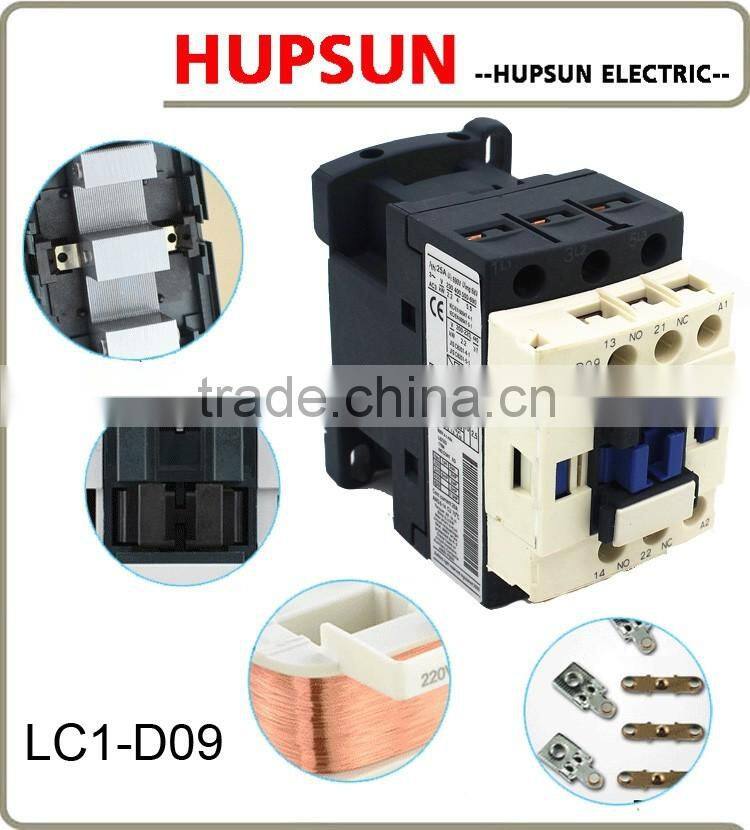

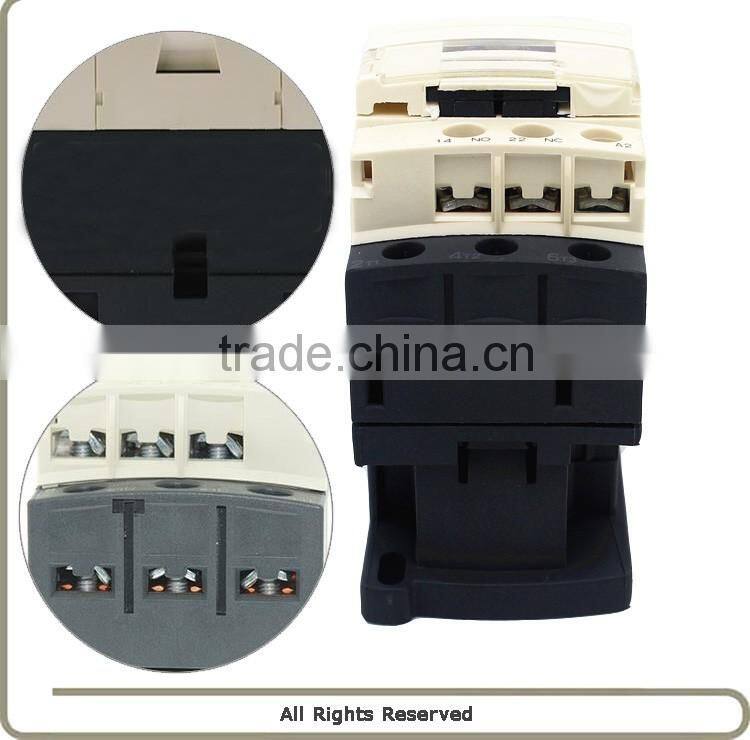

Picture Information

High grade LC1-D09 9A electrical contactor

Our Services

High grade LC1-D09 9A electrical contactor
