New style LC1-D40 40A electric contactor
Application
CJX2(LC1) series AC contactor (simplified as contactor in the following) is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 95A, for making and breaking and frequent starting, controlling the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc. It is conbined into the delay contactor, mechanical interlocking contactor, star-delta starter, with the thermal relay, it is combined into the electromagnetic starter.
Type and meaning
| Coil Voltage (V) | 24 | 36 | 48 | 110 | 127 | 220 | 230 | 240 | 380 | 415 | 440 | 480 | 600 | 680 |
| 50HZ | B5 | C5 | E5 | F5 | G5 | M5 | P5 | U5 | Q5 | N5 | R5 | T5 | S5 | Y5 |
| 60HZ | B6 | C6 | E6 | F6 | G6 | M7 | P6 | U6 | Q6 | N6 | R6 | T6 | S6 | Y6 |
| 60/60HZ | B7 | C7 | E7 | F7 | G7 | M7 | P7 | U7 | Q7 | N7 | R7 | T7 | S7 | Y7 |
Specification
| Type |
CJX2- 09 |
CJX2- 12 |
CJX2- 18 |
CJX2- 25 |
CJX2- 32 |
CJX2- 40 |
CJX2- 50 |
CJX2- 65 |
CJX2- 80 |
CJX2- 95 |
|
Rated insulation voltage (V) |
660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 | 660 |
|
Conventional thermal current (A) |
20 | 25 | 32 | 40 | 50 | 60 | 75 | 80 | 110 | 125 |
|
Rated operational current |
9 | 12 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 95 |
|
Controlled power (KW) 220V |
2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
|
Controlled power (KW) 380V |
4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
|
Controlled power (KW) 415V |
4 | 5.5 | 9 | 11 | 15 | 22 | 25 | 37 | 45 | 45 |
|
Controlled power (KW) 440V |
4 | 5.5 | 9 | 11 | 15 | 22 | 30 | 37 | 45 | 45 |
|
Controlled power (KW) 660V |
5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 |
| Note | The installation of the relays can use two screws and also use the 35mm installation rail | The installation of the relays can use three screws and also use the 75mm or 35mm installation rail | ||||||||
Note: 3P: three NO main contacts; NC: one NO auxiliary contacts; NC: one NC auxiliary contacts.
Specification of coil
| Type |
CJX2- 09 |
CJX2- 12 |
CJX2- 18 |
CJX2- 25 |
CJX2- 32 |
CJX2- 40 |
CJX2- 50 |
CJX2- 65 |
CJX2- 80 |
CJX2- 95 |
||
| Closing voltage 50/60Hz(V) | (0.85 ~1.1)Us | |||||||||||
| Releasing voltage50/60Hz(V) | (0.2~0.75)Us | |||||||||||
| Coil Power | 50HZ | Closing | 70 | 70 | 110 | 110 | 110 | 200 | 200 | 200 | 200 | 200 |
| Closed | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
| 60HZ | Closing | 80 | 80 | 115 | 115 | 115 | 200 | 200 | 200 | 200 | 200 | |
| Closed | 8 | 8 | 11 | 11 | 11 | 20 | 20 | 20 | 20 | 20 | ||
| Consumption | 1.8~2.7 | 1.8~2.7 | 3~4 | 3~4 | 3~4 | 6~10 | 6~10 | 6~10 | 6~10 | 6~10 | ||
Picture Information

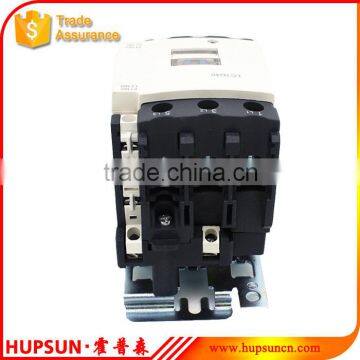

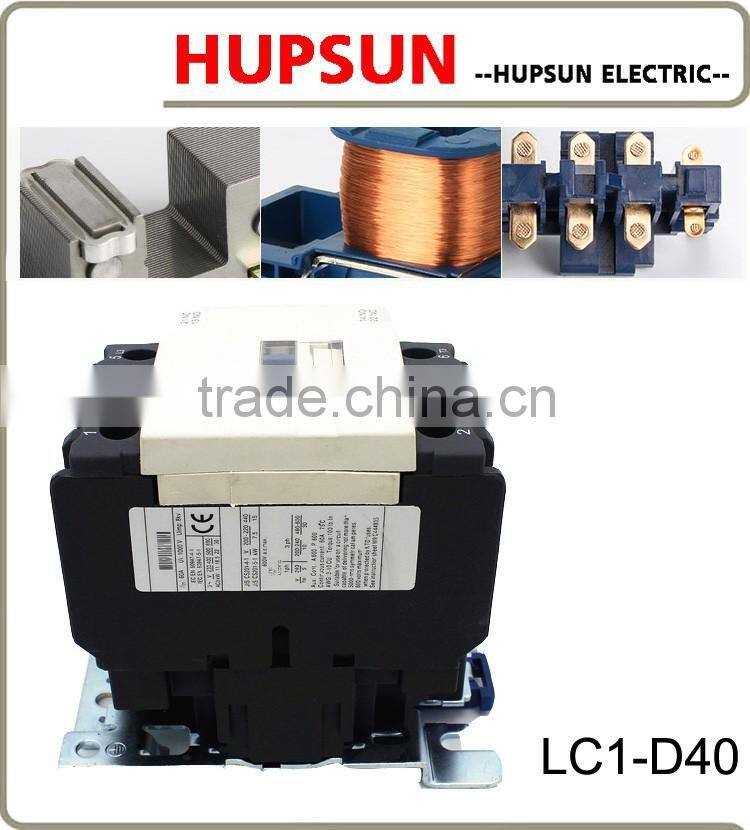

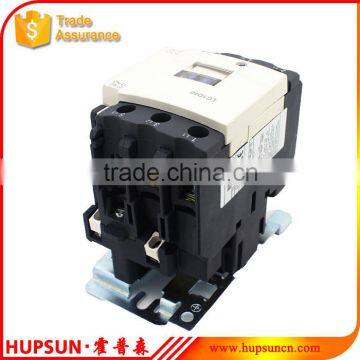

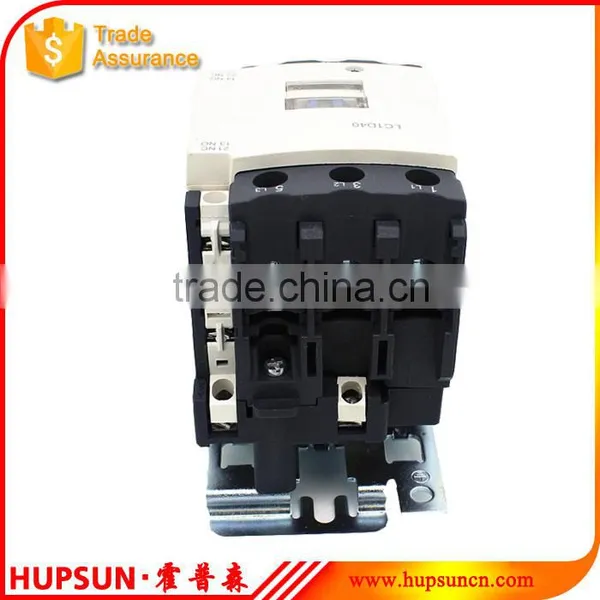

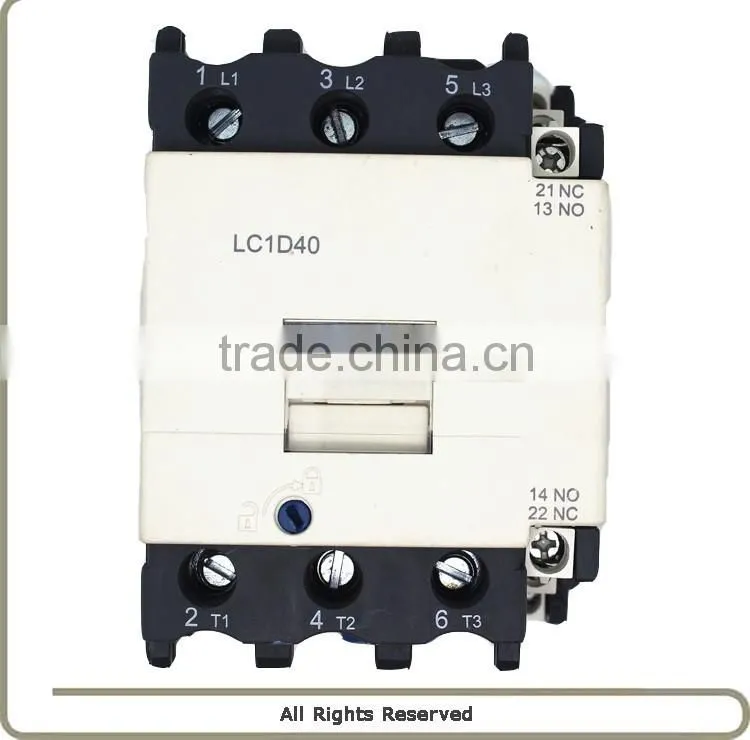

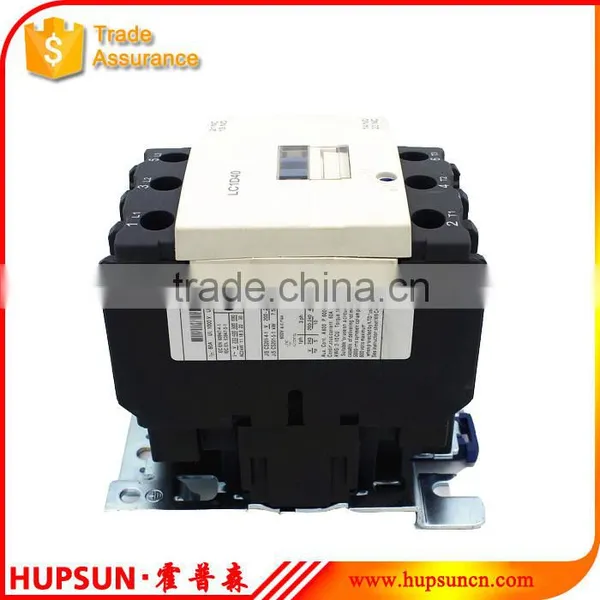

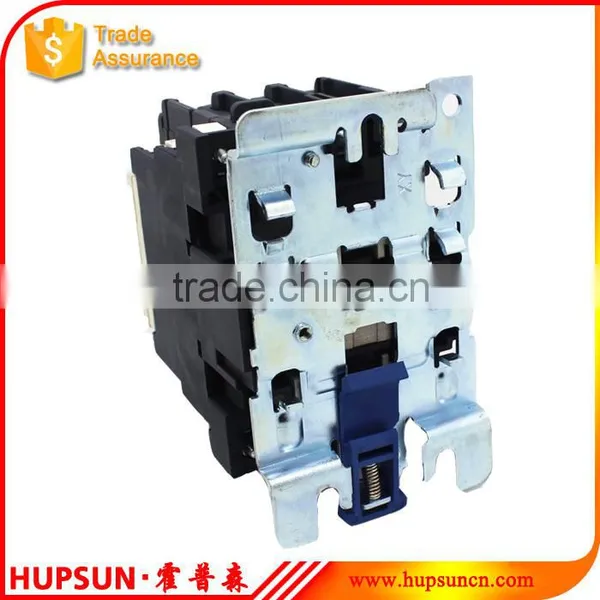

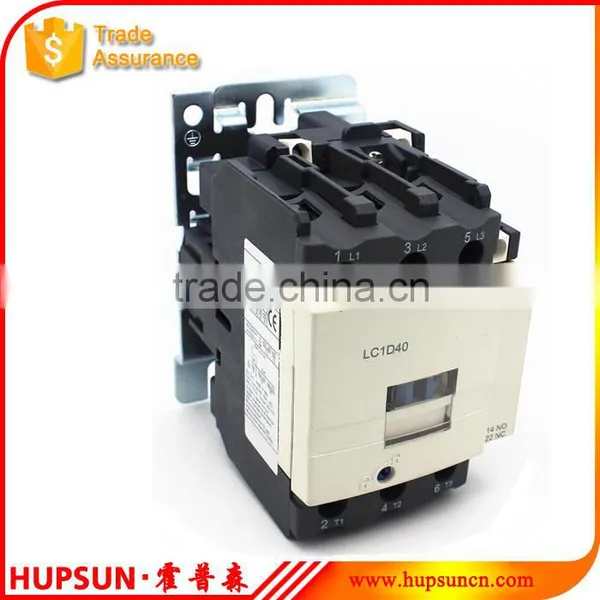

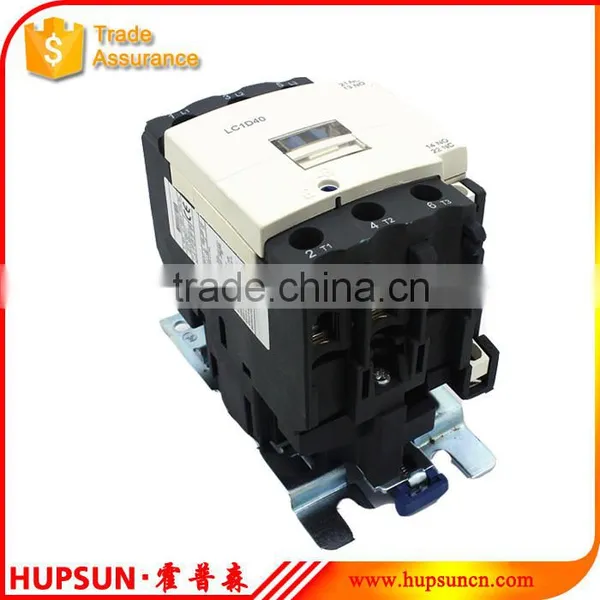

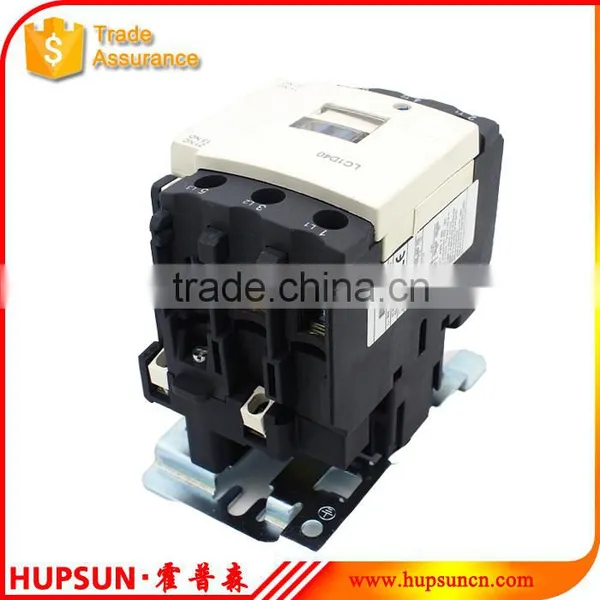

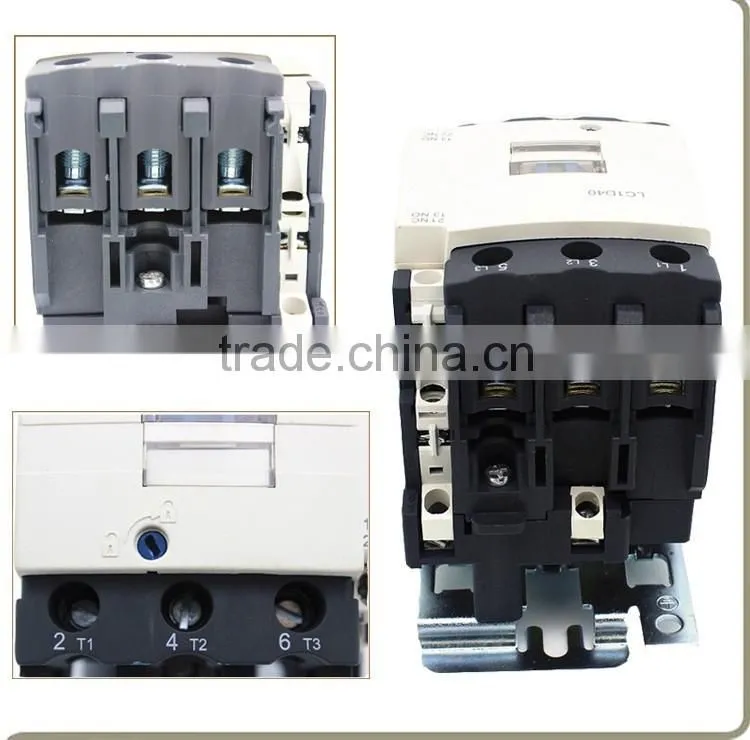

HNew style LC1-D40 40A electric contactor
New style LC1-D40 40A electric contactor
New style LC1-D40 40A electric contactor
New style LC1-D40 40A electric contactor
New style LC1-D40 40A electric contactor
