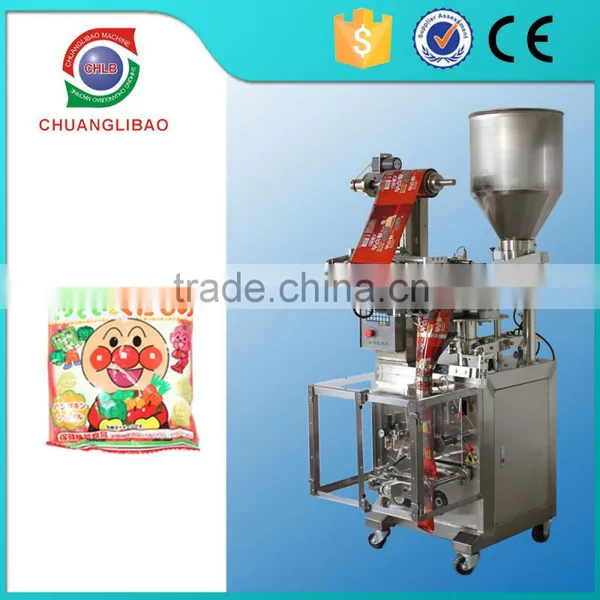

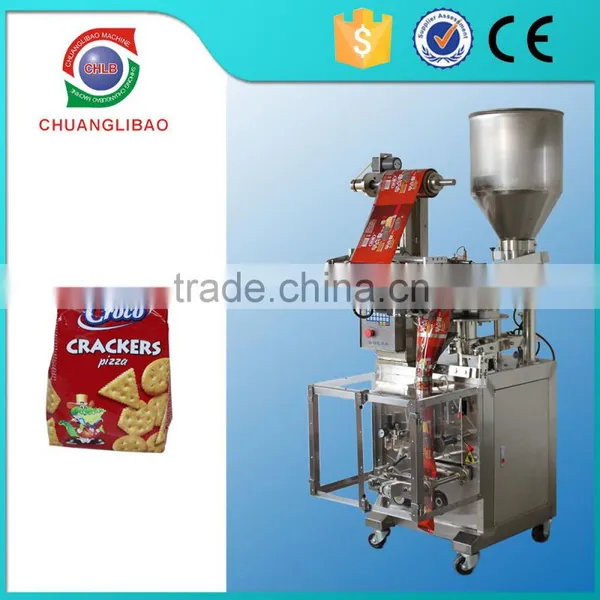

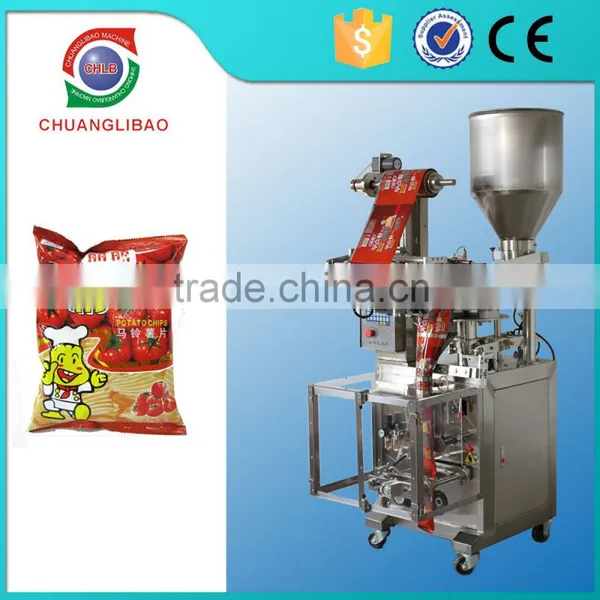

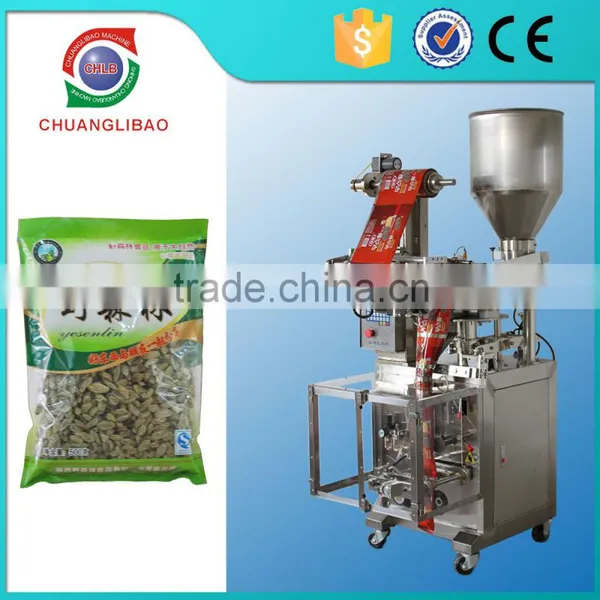

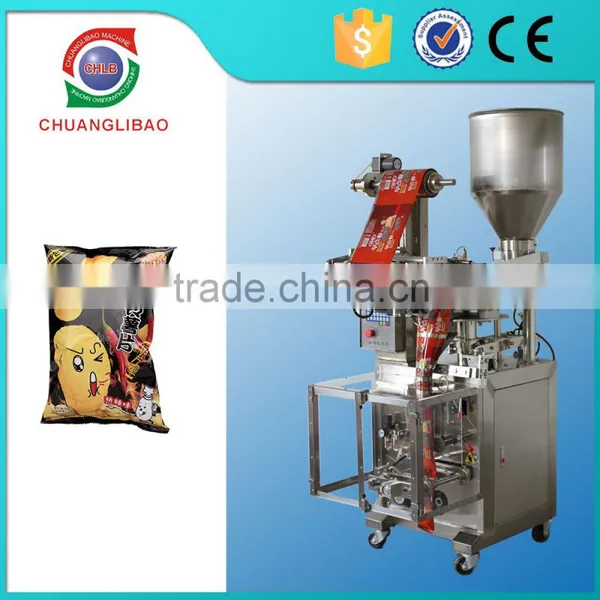

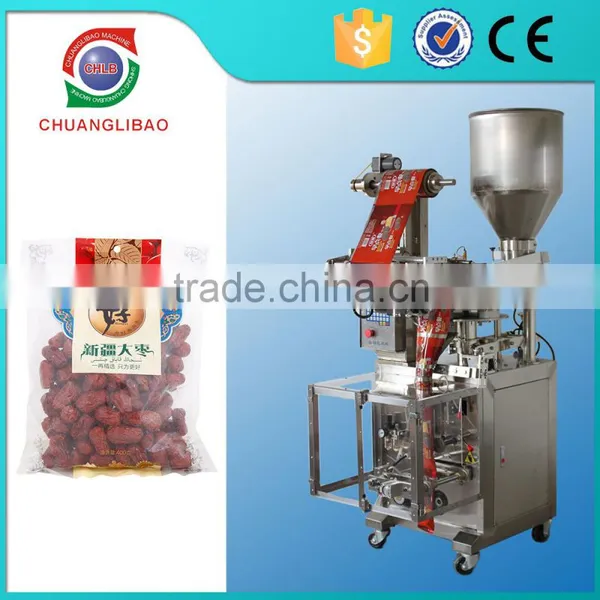

Low Price Wholesale Fashionable Quad-seal Stand up pack type 4 side sealing Automatic Snacks Food Low Cost Pouch Packing Machine
Application:
Suitable for packing food,medicine and chemicals granule,such as coffee,nuts,dry food etc.
- The machine is controlled by double SCM (single chip) system and a large LCD (115*64 mm) in English display.
- The clear manmachine interface is easy to understand. All operation by press keys for: temperature setting, length setting, counting setting, photo control, heating, mixing, move, run, stop.
- Four intelligent temperature controllers. When the heating part or testing part fail to take the sealing temperature over 15 degree of the setting temperature, the machine will stop and display “heat over”. So you can make the wastage to the least.
- When the packaging film is empty or broken, the machine will stop and display “film end”.
- The intelligent counter: you can set the counter to a data you need, the machine will stop and take alarm when reach the data you set.
- The working is stable, easy to use, high yield and low wastage.
Origin of each components:
Touch screen: Siemens / Germany Inverter: Schneider / French
PLC controller: Siemens / Germany Module: Siemens / Germany
Date printer: Dikai / Shanghai Motor: Tongtai / Kunlun
Photo-sensor: SICK / Germany Relay: Omron / Japan
Switch series: Schneider / French Solid phase: Schneider / French
Technical Specification:

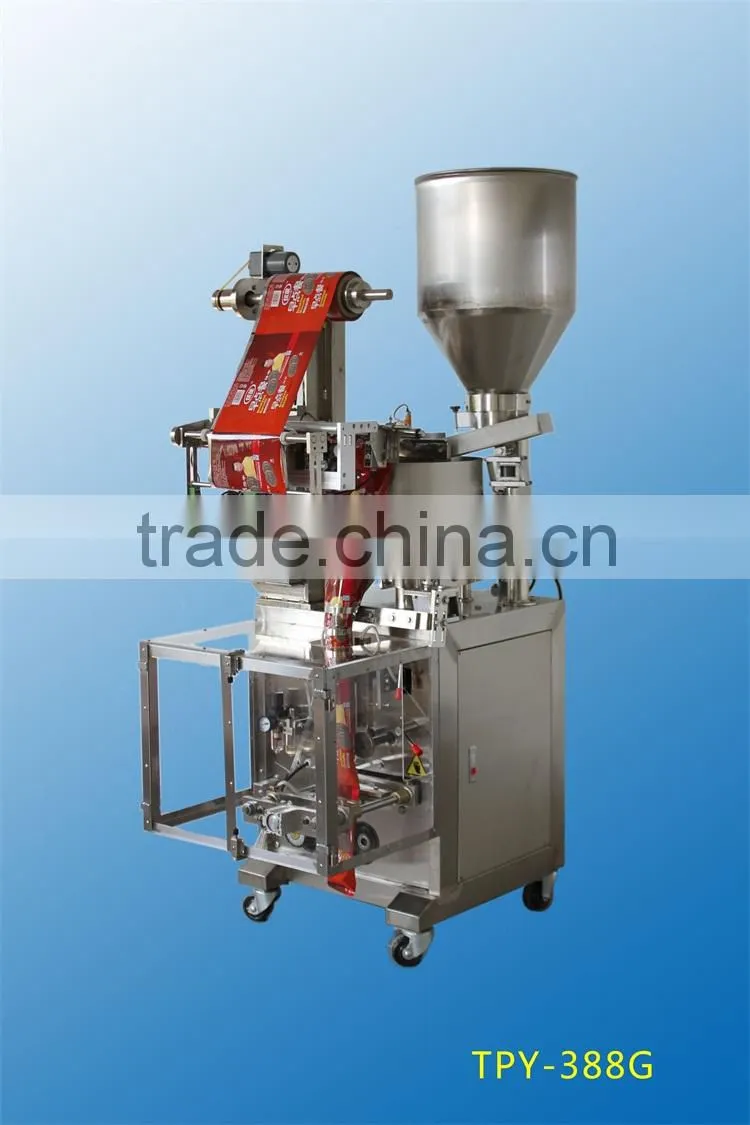

| Model | CB-388G |
| Bag size | L (50-200) ×W (40-150) mm |
| Packing speed | 40-80 bags/min |
| Measuring range | 50-550 ml |
| Max width of film roll | 220 mm |
| Power requirement | 220 V, 50 HZ, 2 KW |
| Machine size |
Machine size L 1350* W 580 * H 1700 mm |
| Machine weight | 250 KG |
.Excellent services for free:
- Consultation service before, during, and after sales;
- Project planning and design services;
- Debugging of equipment until everything is functional;
- Management of equipments' long distance shipping;
- Training of equipment maintenance and operating personally;
- New production techniques and formulas;
- Provide 1 year complete warrantee and lifetime maintenance service.
- Spare part list
| No. | Spare part | QTY | |
| 1 | kit | 1 | 400mm x 200mm x 200mm |
| 2 | belt | 2 | For driving the film |
| 3 | Horizontal heater | 4 | For temperature control |
| 4 | Vertical heater | 4 | For temperature control |
| 5 | Socket head wrench | 1 | For driving screw |
| 6 | Cross screwdriver | 1 | For driving screw |
| 7 | Straight screwdriver | 1 | For driving screw |
| 8 | Monkey spanner | 1 | For driving screw |
| 9 | Spanner | 1 | For driving screw |
| 10 | knife | 1 | For cutting |
| 11 | thermocouple | 1 | For temperature control |
| 12 | Printer keypad | 1 | For printing |
| 13 | Printer heater | 1 | For temperature control |
| 14 | Color ribbon for printer | NY800 BLACK | For printing |
| 25mm-100m | |||
| 15 | Manual for sensor | 1 | For operating manual |
| 16 | brush | 1 | For cleaning |
CHUANGLIBAO has been an professional manufacturer of packing machine since 2003. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
Q1:What is your company specialized in?
A1:Foshan CHUANGLIBAO PACKING MACHINE Co.,Ltd. is built in 2003,it's a professional manufacturer
of Pillow packing machine and Vertical packing machine over 10 years in Foshan,China.About 40 min from factory to Guangzhou airport.
Q2:Have you ever exported your packing machine to other countries?
A2:Yes.We have exported the machines to many other countries,like America,Austrilia,Malaysia,Mexico,
Spain,Croatia,Greece,Thailand,Vietnam,South Africa,India,Indonedia,Saudi Arabia,Jordan,Ymen,Morocco,
Turkey,South Africa,Iran,Russia ,Serbia etc.
Q3:What info you need before confirming the machine?
A3:Your product picture,
your product size(length,width,height,weight etc.),
packing type(Back seal / quad seal / 3-side seal / 4-side seal etc),
your product samples(for testing).
Q4:We never operate this kinds of machine,how can I learn it?
A4:You can bring your technician to learn the operation in our company.There are some training lessons
about the machine operation. If you don't have the time to come us,we will send you the video and manual
for your reference.
Q5:If the machine is breakdown with unexpected problems ,what should we do?
A5:At first,you can take off the power and check the machine carefully,then restart it.
Second,operate it step by step according to the machine manual.
Third,if the problem cannot be solved by yourself,you can reflect the situation to us and we will help you
to solve it asap.If needed,our technician can service overseas.
