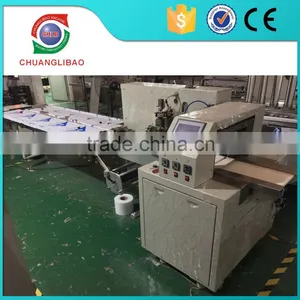

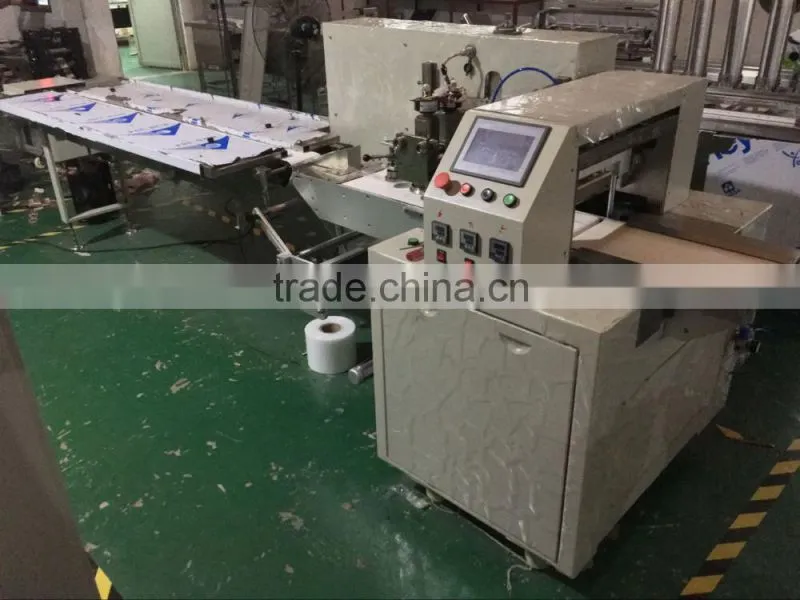

High Speed Automatic Servo Packing Machine For Hard Wares
Scope of application:
Function Description:
1.Mechanical key parts are made of stainless steel to meet the health standards of food QS and medicine GMP.
2.Trio-axial packaging machine’s extension more powerful. The compatibility of the machine is so good that
it can be combined into automatic production line with other equipment.
3.High sensitive electronic eye tracing system, after setting, the machine is no need to be adjusted by hand,
the cutting position is accuracy, and the seal is firm and beautiful.
4.Rectangle type sealing device, firmer sealing, no wasting in mould sealing cutter.
5.Separate PID control to temperature, suitable for various packing materials.
6.Humanized and intelligent parameter settings make the general staff become proficient in a short time.
Operation, maintenance and repair are easier and more convenient.
7.Materials location is setting by parameter instead of mechanical adjustment manually when products are getting packed.
8.Counting automatically, the packaging production’s counting is accuracy.
9.Machine design and convey system is simple. The machine is convenient to maintain.
10.All the controls are achieved by software, convenient for function adjusting and upgrading.
11.No need to adjust the cutter speed, because of the servo motion controller makes it track and synchronize automatically.
Technical Specifications:
| Bag size | L (100-400) ×W (50-200) × H (10-120) mm |
| Speed | 20~40 bags/min |
| Thickness of film | 30-70 um |
| Width of film | ≤220 mm |
| Dimension of film roll | outer diameter ≤300 mm / inner diameter ≤75mm |
| Power requirement | 380V, 50HZ, 5.5KW |
| Machine size | L 3980* W 860* H 1580 mm |
| Machine Weight | 960KG |
Excellent services for free:
- Consultation service before, during, and after sales;
- Project planning and design services;
- Debugging of equipment until everything is functional;

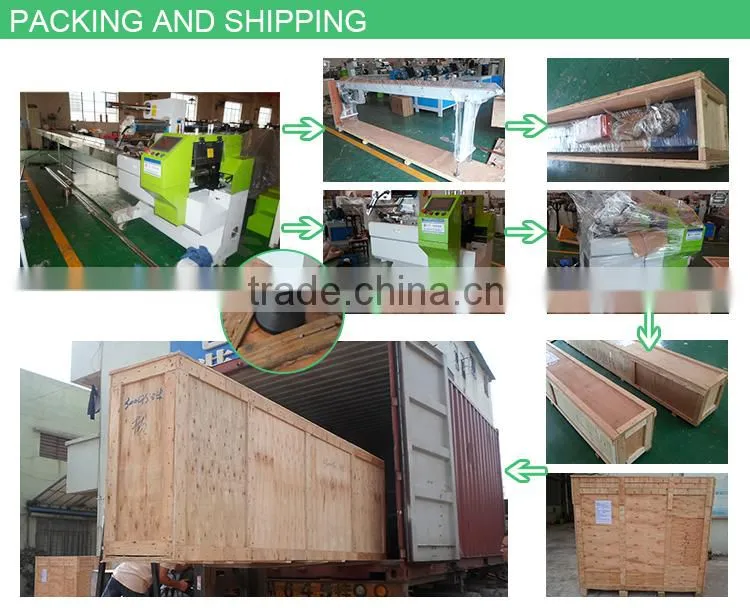

- Management of equipments' long distance shipping;
- Training of equipment maintenance and operating personally;
- New production techniques and formulas;
- Provide 1 year complete warrantee and lifetime maintenance service.

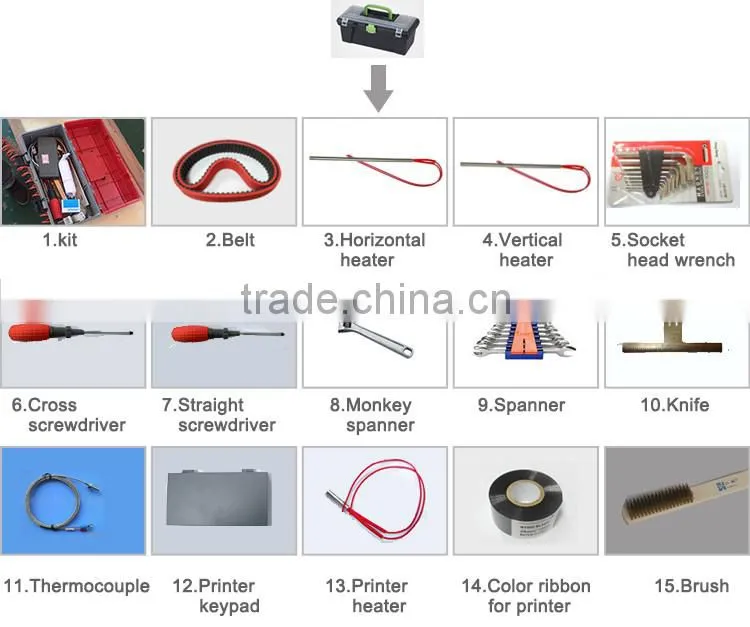

- Spare part list
| No. | Spare part | QTY | |
| 1 | kit | 1 | 400mm x 200mm x 200mm |
| 2 | belt | 2 | For driving the film |
| 3 | Horizontal heater | 4 | For temperature control |
| 4 | Vertical heater | 4 | For temperature control |
| 5 | Socket head wrench | 1 | For driving screw |
| 6 | Cross screwdriver | 1 | For driving screw |
| 7 | Straight screwdriver | 1 | For driving screw |
| 8 | Monkey spanner | 1 | For driving screw |
| 9 | Spanner | 1 | For driving screw |
| 10 | knife | 1 | For cutting |
| 11 | thermocouple | 1 | For temperature control |
| 12 | Printer keypad | 1 | For printing |
| 13 | Printer heater | 1 | For temperature control |
| 14 | Color ribbon for printer | NY800 BLACK | For printing |
| 25mm-100m | |||
| 15 | Manual for sensor | 1 | For operating manual |
| 16 | brush | 1 | For cleaning |
Payment items: 30% T/T as deposit and 70% T/T balance before the shipment.Machine checking is available before the shipment.
Delivery time:For standard pillow packing machine as CB-100 / 100I / 320 / 380I / 300S etc,10-15 working days;for standard big vertical packing machine,25~35 working days.

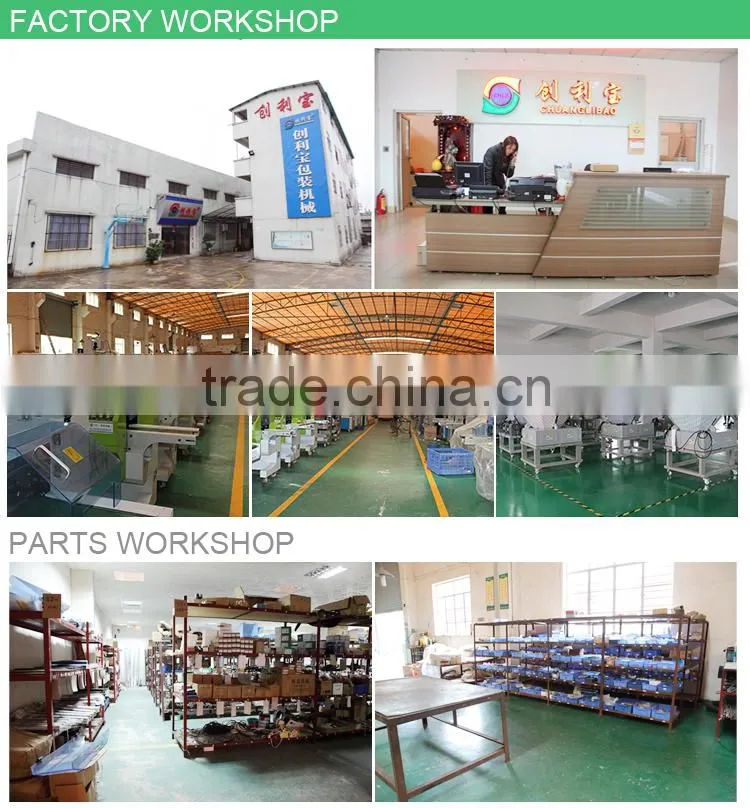

CHUANGLIBAO has been an professional manufacturer of packing machine since 2003. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
Q1:What is your company specialized in?
A1:Foshan CHUANGLIBAO PACKING MACHINE Co.,Ltd. is built in 2003,it's a professional manufacturer
of Pillow packing machine and Vertical packing machine over 10 years in Foshan,China.About 40 min from factory to Guangzhou airport.
Q2:Have you ever exported your packing machine to other countries?
A2:Yes.We have exported the machines to many other countries,like America,Austrilia,Malaysia,Mexico,
Spain,Croatia,Greece,Thailand,Vietnam,South Africa,India,Indonedia,Saudi Arabia,Jordan,Ymen,Morocco,
Turkey,South Africa,Iran,Russia ,Serbia etc.
Q3:What info you need before confirming the machine?
A3:Your product picture,
your product size(length,width,height,weight etc.),
packing type(Back seal / quad seal / 3-side seal etc),
your product samples(for testing).
Q4:We never operate this kinds of machine,how can I learn it?
A4:You can bring your technician to learn the operation in our company.There are some training lessons
about the machine operation. If you don't have the time to come us,we will send you the video and manual
for your reference.
Q5:If the machine is breakdown with unexpected problems ,what should we do?
A5:At first,you can take off the power and check the machine carefully,then restart it.
Second,operate it step by step according to the machine manual.
Third,if the problem cannot be solved by yourself,you can reflect the situation to us and we will help you
to solve it asap.If needed,our technician can service overseas.
