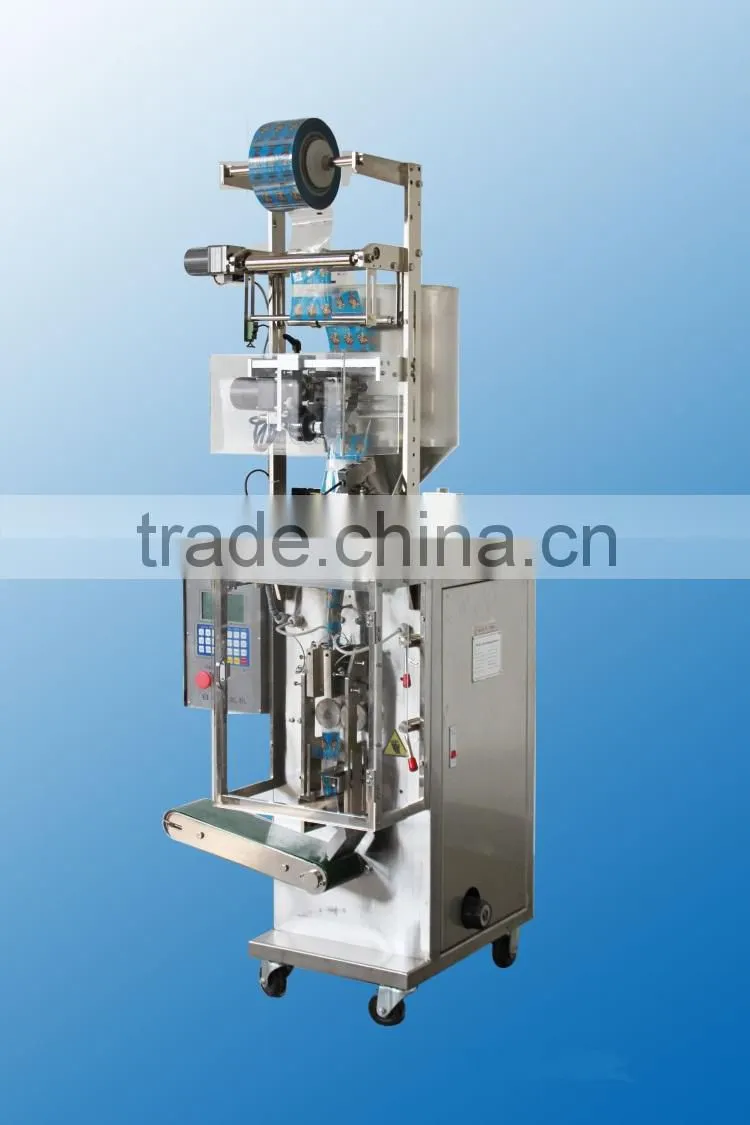

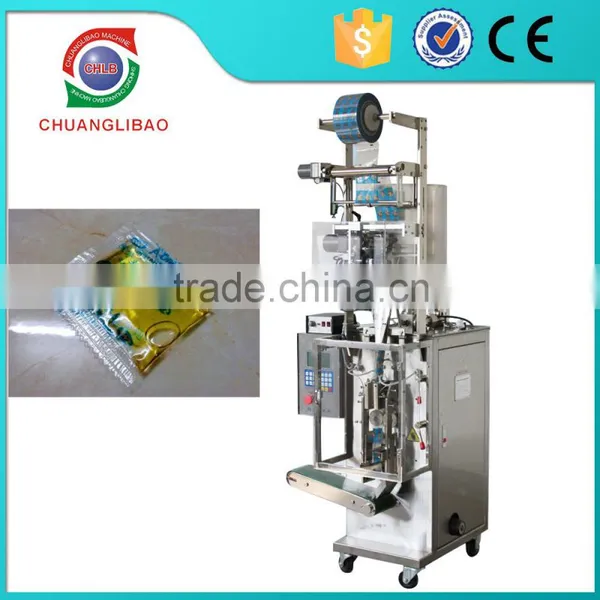

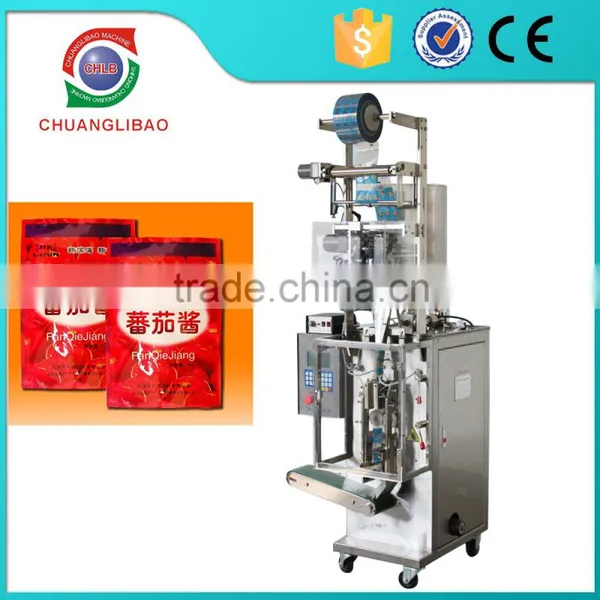

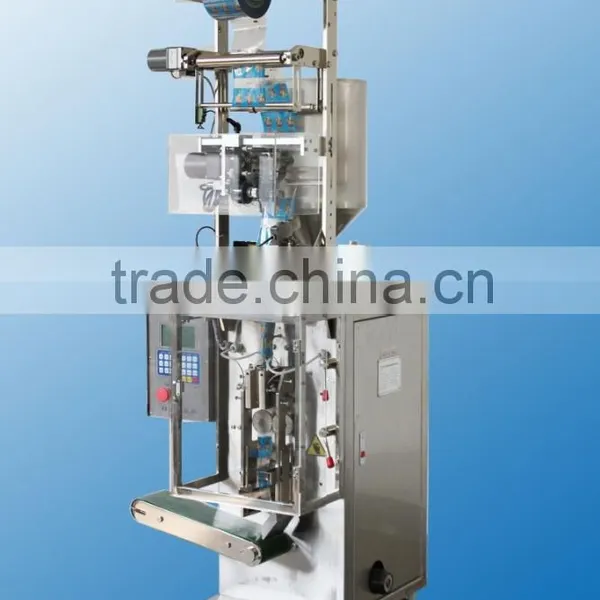

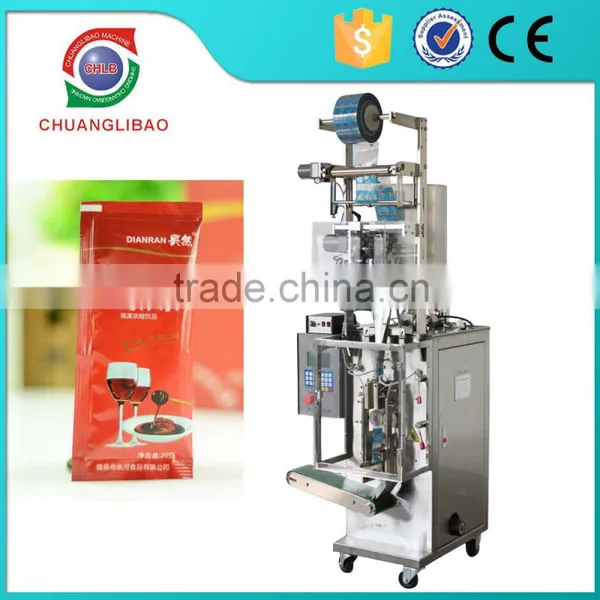

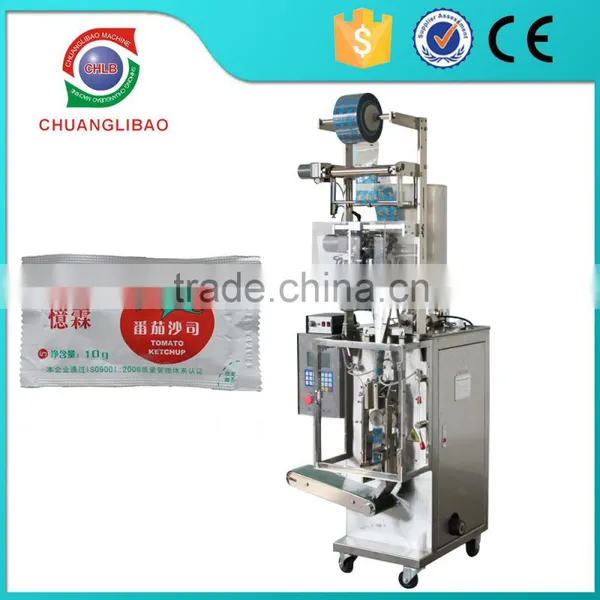

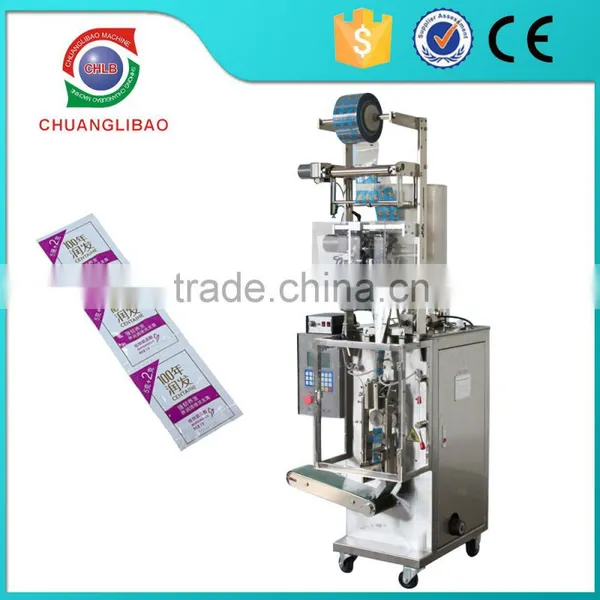

Full automatic ketchup small sachet packing machine

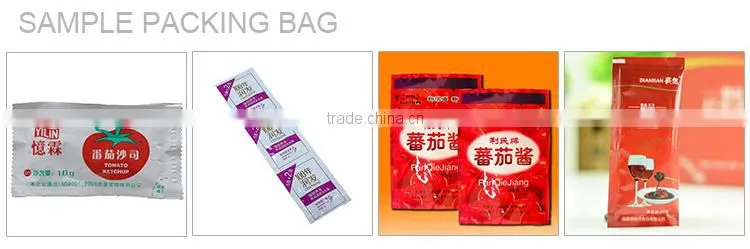

1.Application & sample bags:
Stable for various viscous products with free-flowing, such as garlic paste, tomato sauce, lotion noodle jam, edible oil ,broth, honey, ect.
2.Functional Description
- Step motor drawing film, adjust the parameters on the screen, easy operation.
- Powerful expanded function which can connect with joint packing device and gas filling device satisfy with different products requirements.
- It can finish bag making, measuring, filling, sealing, and printing date, products output in one operatio
| Model | CB-220L | CB-388L |
| Bag size | L (40-150) ×W (30-100) mm | L (50-200) ×W (40-150) mm |
| Packing speed | 40-80 bags/min | 30-100 bags/min |
| Measuring range | 1-80 ml | 10-500 ml |
| Max width of film roll | 320 mm | 320 mm |
| Power requirement | 380/220V, 50HZ, 790/1000W | 380/220V, 50HZ, 2000W |
| Machine size | L 700* W 580 * H 1550 mm | L1350* W 580 * H 1700 mm |
| Machine weight | 180 KG | 250 KG |
| Sealing type: | 3-side sealing ,4 side sealing | back sealing |
3.Origin of each components
Touch screen: Siemens / Germany Inverter: Schneider / French
PLC controller: Siemens / Germany Module: Siemens / Germany
Date printer: Dikai / Shanghai Motor: Tongtai / Kunlun
Photo-sensor: SICK / Germany Relay: Omron / Japan
Switch series: Schneider / French Solid phase: Schneider / French
4.Teching video link
for CB-220L ,388L /watch?v=-E-yfTKdnZ4
5.Excellent services for free:
- Consultation service before, during, and after sales;
- Project planning and design services;
- Debugging of equipment until everything is functional;
- Management of equipments' long distance shipping;
- Training of equipment maintenance and operating personally;
- New production techniques and formulas;
- Provide 1 year complete warrantee and lifetime maintenance service.
- Spare part list
| No. | Spare part | QTY | |
| 1 | kit | 1 | 400mm x 200mm x 200mm |
| 2 | belt | 2 | For driving the film |
| 3 | Horizontal heater | 4 | For temperature control |
| 4 | Vertical heater | 4 | For temperature control |
| 5 | Socket head wrench | 1 | For driving screw |
| 6 | Cross screwdriver | 1 | For driving screw |
| 7 | Straight screwdriver | 1 | For driving screw |
| 8 | Monkey spanner | 1 | For driving screw |
| 9 | Spanner | 1 | For driving screw |
| 10 | knife | 1 | For cutting |
| 11 | thermocouple | 1 | For temperature control |
| 12 | Printer keypad | 1 | For printing |
| 13 | Printer heater | 1 | For temperature control |
| 14 | Color ribbon for printer | NY800 BLACK | For printing |
| 25mm-100m | |||
| 15 | Manual for sensor | 1 | For operating manual |
| 16 | brush | 1 | For cleaning |
Payment items: 30% T/T as deposit and 70% T/T balance before the shipment.Machine checking is available
before the shipment.
Delivery time:For standard pillow packing machine as CB-100/100I/320/380I/300S etc,10-15 working days; for standard big vertical packing machine,25~35 working days.
CHUANGLIBAO has been an professional manufacturer of packing machine since 2003. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
Q1:What is your company specialized in?
A1:Foshan CHUANGLIBAO PACKING MACHINE Co.,Ltd. is built in 2003,it's a professional manufacturer
of Pillow packing machine and Vertical packing machine over 10 years in Foshan,China.About 40 min from factory to Guangzhou airport.
Q2:Have you ever exported your packing machine to other countries?
A2:Yes.We have exported the machines to many other countries,like America,Austrilia,Malaysia,Mexico,
Spain,Croatia,Greece,Thailand,Vietnam,South Africa,India,Indonedia,Saudi Arabia,Jordan,Ymen,Morocco,
Turkey,South Africa,Iran,Russia ,Serbia etc.
Q3:What info you need before confirming the machine?
A3:Your product picture,
your product size(length,width,height,weight etc.),
packing type(Back seal / quad seal / 3-side seal etc),
your product samples(for testing).
Q4:We never operate this kinds of machine,how can I learn it?
A4:You can bring your technician to learn the operation in our company.There are some training lessons
about the machine operation. If you don't have the time to come us,we will send you the video and manual
for your reference.
Q5:If the machine is breakdown with unexpected problems ,what should we do?
A5:At first,you can take off the power and check the machine carefully,then restart it.
Second,operate it step by step according to the machine manual.
Third,if the problem cannot be solved by yourself,you can reflect the situation to us and we will help you
to solve it asap.If needed,our technician can service overseas.
