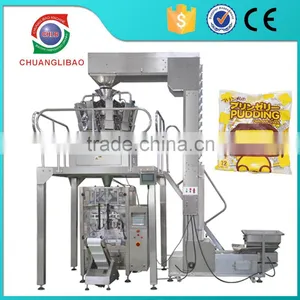

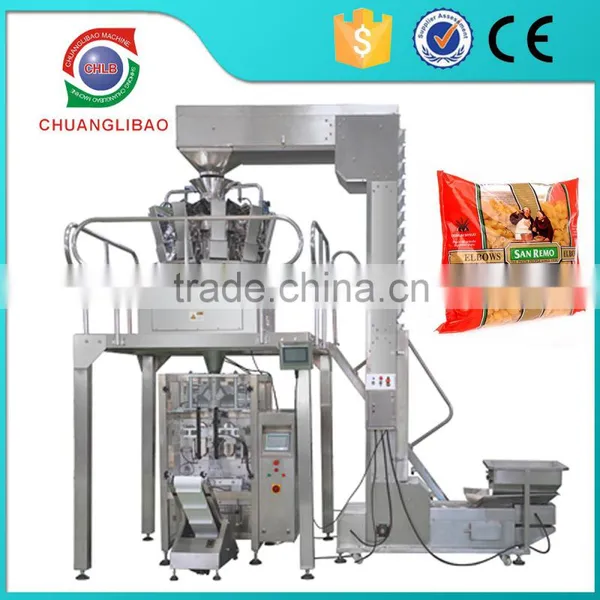

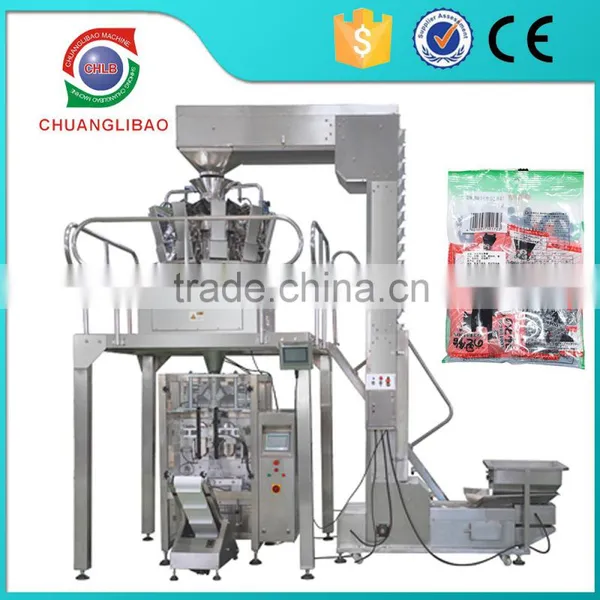

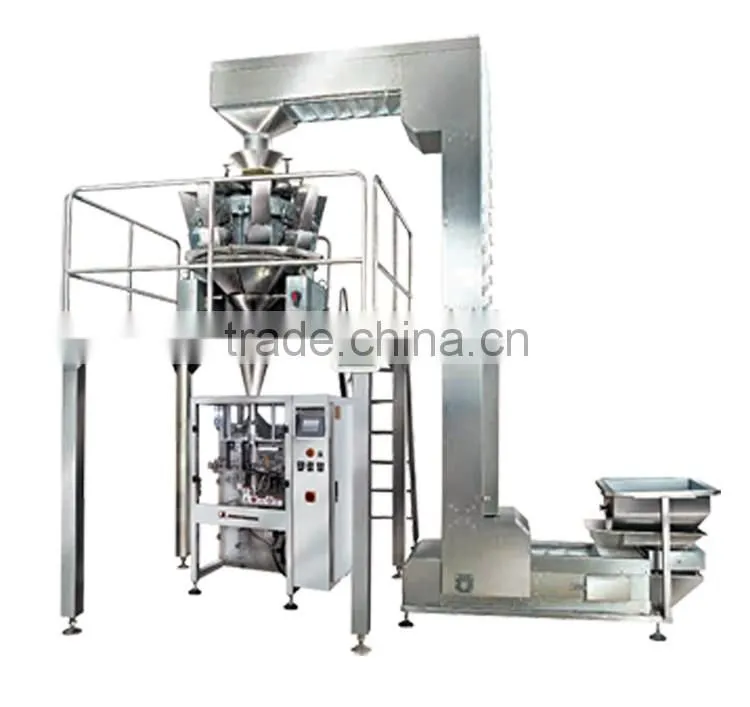

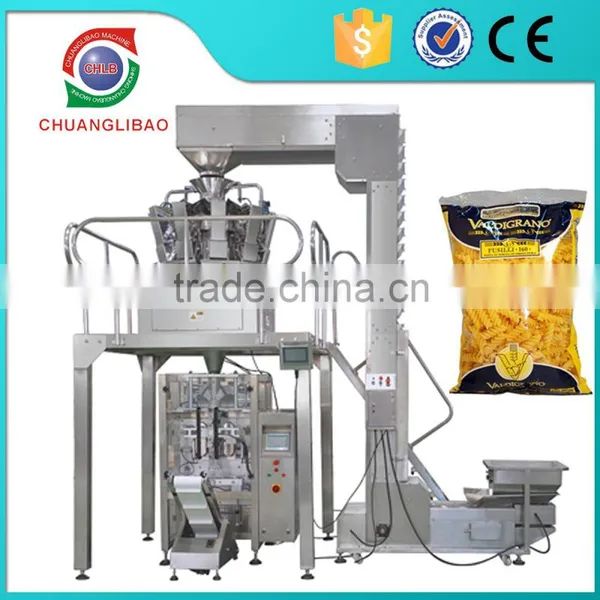

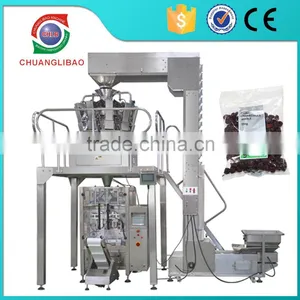

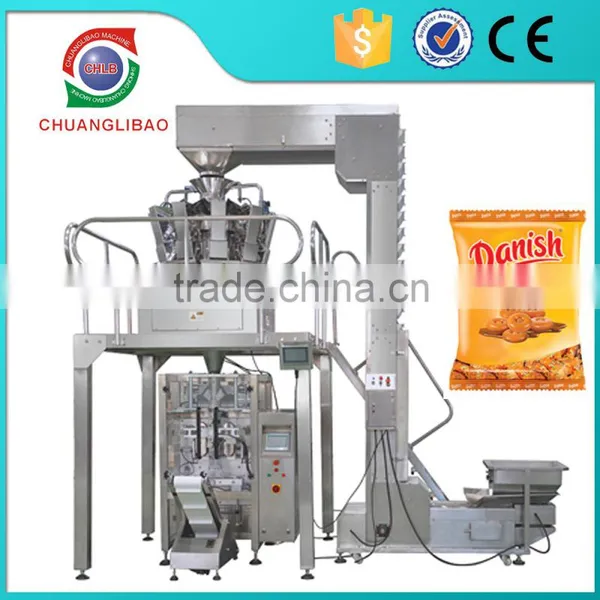

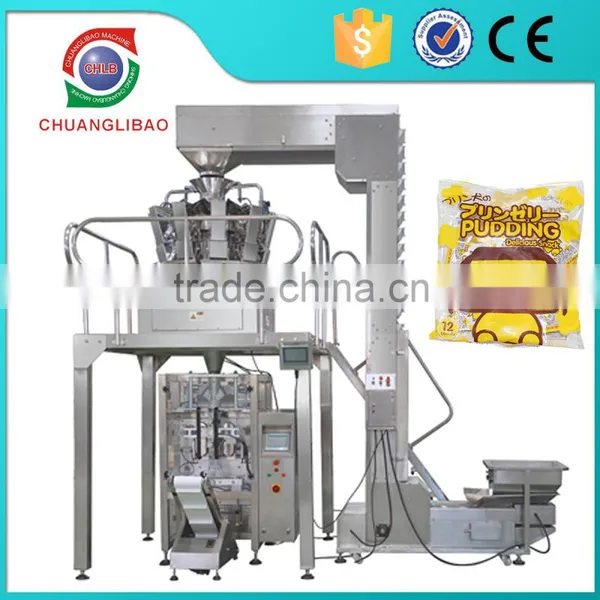

Automatic Dry Baked Food Packaging Machine Price
1.Application & sample bags:
Suitable for granule and fluent powder such as sugar, salt, rice, coffee, sesame, forage, MSG
2.Function Description:
- 1. Chinese and English language touch screen display, easy to operate.
- 2. PLC computer control system, working is stable, adjust parameters without stopping the machine.
- 3. It can save ten parameters, simple to change goods.
- 4. Adopted to servo system machine drawing film, position accurately.
- 5. Temperature control system independently, accuracy is within ±1°C
3.Technical Specifications:
Model |
CB-4230 |
Bag size |
L (80-300) ×W (50-200) mm |
Packing speed |
5-60 bags/min |
Measuring range |
150-1200 ml |
Max width of film roll |
≤420 mm |
Air consumption |
0.65 mpa |
Gas consumption |
0.3 m3/min |
Power requirement |
220 V, 50 HZ, 2.2 KW |
Machine size |
L 1808 * W 1300 * H 1400 mm |
Machine weight |
540KG |
4.Optional device:
Item |
Specification |
Qty(set) |
Main machine |
CB-4230PM |
1 |
10-head weigher |
10 heads |
1 |
elevator |
Z-shape |
1 |
Working platform |
|
1 |
forming |
With the machine |
1 |
Date printer |
Regular |
1 |
conveyor |
130mm |
1 |
Rotary table |
|
1 |

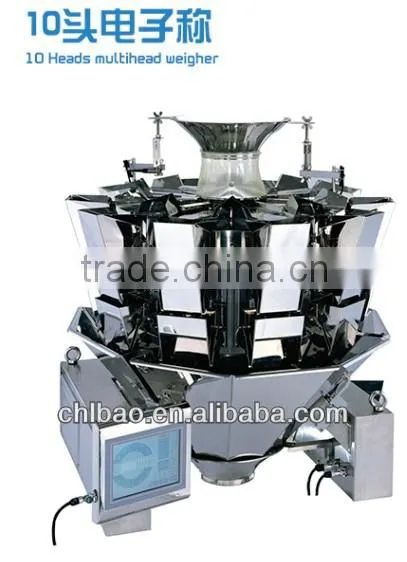

Name |
10-head New-version |
Model |
BO-2/10-2.5 |
Hopper size |
2.5L |
Weighing range |
10-1500g |
Weighing accuracy |
±0.1-1.5g |
Weighing speed |
Max.80bpm |
Structure |
Carbon steel /Stainless steel |
Controller |
10.4” Touch screen |
5.Technical characteristics:
1. High precision data-type weighing sensor realizes precision weighing.
2. Microcomputer control system with double vibration feeding and imported instrument, advanced technology and simple operation.
3. Stainless steel sealed machine body; corrosion resistance and dust resistance.
4. The measuring hopper can be disassembled rapidly; and it’s convenient in cleaning and maintenance.
5. It can make different combination to enlarge according to customer’s requirements.
6. With strong compatibility, it’s easy to supported with other packing device.
.Excellent services for free:
- Consultation service before, during, and after sales;
- Project planning and design services;
- Debugging of equipment until everything is functional;
- Management of equipments' long distance shipping;
- Training of equipment maintenance and operating personally;
- New production techniques and formulas;
- Provide 1 year complete warrantee and lifetime maintenance service.
- Spare part list
| No. | Spare part | QTY | |
| 1 | kit | 1 | 400mm x 200mm x 200mm |
| 2 | belt | 2 | For driving the film |
| 3 | Horizontal heater | 4 | For temperature control |
| 4 | Vertical heater | 4 | For temperature control |
| 5 | Socket head wrench | 1 | For driving screw |
| 6 | Cross screwdriver | 1 | For driving screw |
| 7 | Straight screwdriver | 1 | For driving screw |
| 8 | Monkey spanner | 1 | For driving screw |
| 9 | Spanner | 1 | For driving screw |
| 10 | knife | 1 | For cutting |
| 11 | thermocouple | 1 | For temperature control |
| 12 | Printer keypad | 1 | For printing |
| 13 | Printer heater | 1 | For temperature control |
| 14 | Color ribbon for printer | NY800 BLACK | For printing |
| 25mm-100m | |||
| 15 | Manual for sensor | 1 | For operating manual |
| 16 | brush | 1 | For cleaning |
Payment items: 30% T/T as deposit and 70% T/T balance before the shipment.Machine checking is available before the shipment.
Delivery time:For standard pillow packing machine as CB-100 / 100I / 320 / 380I / 300S etc,10-15 working days;for standard big vertical packing machine,25~35 working days.
CHUANGLIBAO has been an professional manufacturer of packing machine since 2003. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
Q1:What is your company specialized in?
A1:Foshan CHUANGLIBAO PACKING MACHINE Co.,Ltd. is built in 2003,it's a professional manufacturer
of Pillow packing machine and Vertical packing machine over 10 years in Foshan,China.About 40 min from factory to Guangzhou airport.
Q2:Have you ever exported your packing machine to other countries?
A2:Yes.We have exported the machines to many other countries,like America,Austrilia,Malaysia,Mexico,
Spain,Croatia,Greece,Thailand,Vietnam,South Africa,India,Indonedia,Saudi Arabia,Jordan,Ymen,Morocco,
Turkey,South Africa,Iran,Russia ,Serbia etc.
Q3:What info you need before confirming the machine?
A3:Your product picture,
your product size(length,width,height,weight etc.),
packing type(Back seal / quad seal / 3-side seal etc),
your product samples(for testing).
Q4:We never operate this kinds of machine,how can I learn it?
A4:You can bring your technician to learn the operation in our company.There are some training lessons
about the machine operation. If you don't have the time to come us,we will send you the video and manual
for your reference.
Q5:If the machine is breakdown with unexpected problems ,what should we do?
A5:At first,you can take off the power and check the machine carefully,then restart it.
Second,operate it step by step according to the machine manual.
Third,if the problem cannot be solved by yourself,you can reflect the situation to us and we will help you
to solve it asap.If needed,our technician can service overseas.
