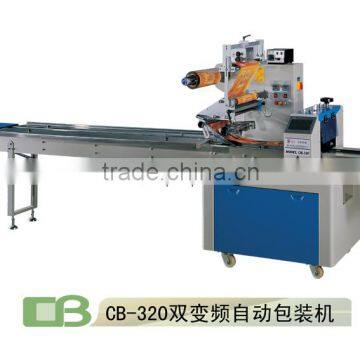

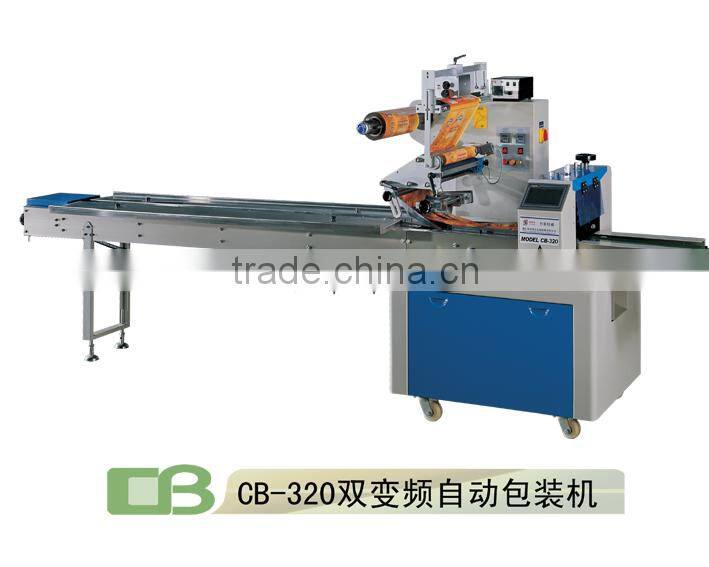

Horizontal Flow Pillow Packing Machine/ Biscuit Packing Machine
1.Application & sample bags:
Suitable for regular products like moon cake, biscuit, bread, candy, medicine, daily article, hardware, carton, tray etc.
2.Function Description:
- The key parts of the machine are adopted of stainless structure, in accordance with food QS and medicine
- GMP health requirements.
- High sensitive electronic eye tracing system, after setting, the machine is no need to be adjusted by hand,
- the cutting position is accuracy, and the seal is firm and beautiful.
- Temperature is controlled by PID intelligence independently and steadily which is suitable for various materials.
- Color touch-screen display, machine can be turned off by position; fault is self-diagnosed and displayed clearly.
- Counting automatically, the packaging production’s counting is accuracy.
- Machine design and convey system is simple. The machine is convenient to maintain.
- The machine can be equipped with gas charging device and production date code system according to client’s
- packaging requirements.
3.Technical Specifications:
Single knife |
Bag size: L (160-400) × W (50-150) × H (3-55) mm |
Speed: 100 bags/min | |
Twin knife |
Bag size: L (80-200) ×W (50-150) × H (3-55) mm |
Speed: 200 bags/min | |
Thickness of film |
30-70 um |
Width of film |
≤300 mm |
Dimension of film roll |
outer diameter ≤300 mm inner diameter ≤75mm |
Power requirement |
220V, 50HZ, 2.75KW |
Machine size |
3868×860 ×1510 mm (L×W×H) |
Machine Weight |
550KG |
Optional device |
printer, gas charging device, feeder, tidier |

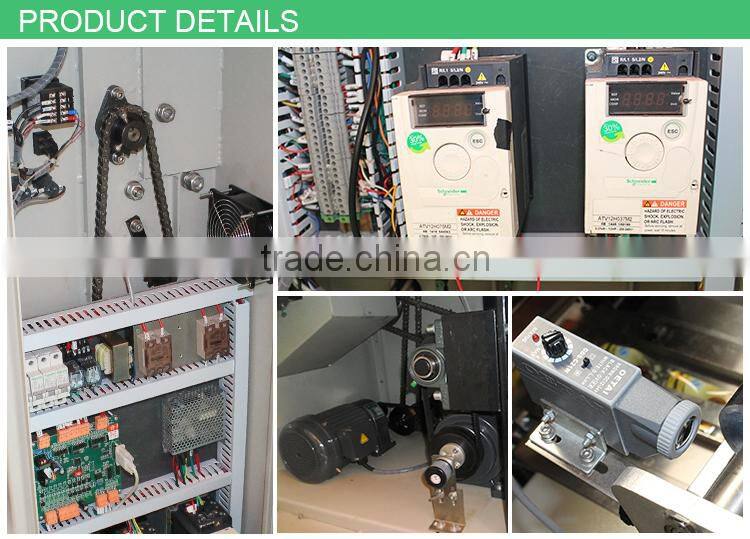

4.Origin of each components
Touch screen: Siemens / Germany Inverter: Schneider / French
PLC controller: Siemens / Germany Module: Siemens / Germany
Date printer: Dikai / Shanghai Motor: Tongtai / Kunlun
Photo-sensor: SICK / Germany Relay: Omron / Japan
Switch series: Schneider / French Solid phase: Schneider / French
5.Teaching video
/watch?v=Eazw-2XI-M0
6.Excellent services for free:
- Consultation service before, during, and after sales;
- Project planning and design services;
- Debugging of equipment until everything is functional;
- Management of equipments' long distance shipping;
- Training of equipment maintenance and operating personally;
- New production techniques and formulas;
- Provide 1 year complete warrantee and lifetime maintenance service.
- Spare part list
| No. | Spare part | QTY | |
| 1 | kit | 1 | 400mm x 200mm x 200mm |
| 2 | belt | 2 | For driving the film |
| 3 | Horizontal heater | 4 | For temperature control |
| 4 | Vertical heater | 4 | For temperature control |
| 5 | Socket head wrench | 1 | For driving screw |
| 6 | Cross screwdriver | 1 | For driving screw |
| 7 | Straight screwdriver | 1 | For driving screw |
| 8 | Monkey spanner | 1 | For driving screw |
| 9 | Spanner | 1 | For driving screw |
| 10 | knife | 1 | For cutting |
| 11 | thermocouple | 1 | For temperature control |
| 12 | Printer keypad | 1 | For printing |
| 13 | Printer heater | 1 | For temperature control |
| 14 | Color ribbon for printer | NY800 BLACK | For printing |
| 25mm-100m | |||
| 15 | Manual for sensor | 1 | For operating manual |
| 16 | brush | 1 | For cleaning |
Payment items: 30% T/T as deposit and 70% T/T balance before the shipment.Machine checking is available before the shipment.
Delivery time:For standard pillow packing machine as CB-100 / 100I / 320 / 380I / 300S etc,10-15 working days;for standard big vertical packing machine,25~35 working days.
CHUANGLIBAO has been an professional manufacturer of packing machine since 2003. We have strong research and development team, research and innovate is our aim and market is our guiding. We can research 2-3 new machines each year, and we spent more than USD $50000 for exhibition each year, we have been to Turkey, Indonesia, Malaysia, Dubai and so on, so we think we should have enough experience to help u more.
We are the second biggest packing machine supplier in China, our production is 50 sets per month, we can delivery you machine within 25 days as soon as we got your deposit. And we can send our engineer and master to your factory for machine service if you need, so we can help you in time.
Q1:What is your company specialized in?
A1:Foshan CHUANGLIBAO PACKING MACHINE Co.,Ltd. is built in 2003,it's a professional manufacturer
of Pillow packing machine and Vertical packing machine over 10 years in Foshan,China.About 40 min from factory to Guangzhou airport.
Q2:Have you ever exported your packing machine to other countries?
A2:Yes.We have exported the machines to many other countries,like America,Austrilia,Malaysia,Mexico,
Spain,Croatia,Greece,Thailand,Vietnam,South Africa,India,Indonedia,Saudi Arabia,Jordan,Ymen,Morocco,
Turkey,South Africa,Iran,Russia ,Serbia etc.
Q3:What info you need before confirming the machine?
A3:Your product picture,
your product size(length,width,height,weight etc.),
packing type(Back seal / quad seal / 3-side seal etc),
your product samples(for testing).
Q4:We never operate this kinds of machine,how can I learn it?
A4:You can bring your technician to learn the operation in our company.There are some training lessons
about the machine operation. If you don't have the time to come us,we will send you the video and manual
for your reference.
Q5:If the machine is breakdown with unexpected problems ,what should we do?
A5:At first,you can take off the power and check the machine carefully,then restart it.
Second,operate it step by step according to the machine manual.
Third,if the problem cannot be solved by yourself,you can reflect the situation to us and we will help you
to solve it asap.If needed,our technician can service overseas.
