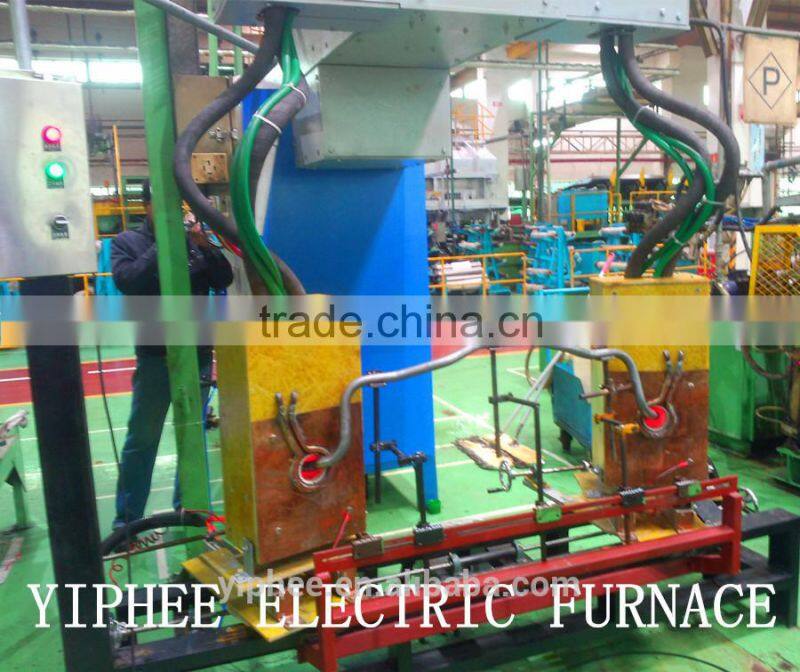

Steel Billet Heating Furnace For Automatic Feeding And Discharging
- 1000 Set / Sets per Month
- Guangzhou port
- T/T Credit Card
Product Details
Condition: | New | Type: | Induction Furnace | Usage: | Heat Treatment Furnace |
Place of Origin: | Guangdong, China | Brand Name: | yiphee | Model Number: | heat treatment furnace |
Voltage: | 380-1000v | Power(W): | 50-3000kw | Dimension(L*W*H): | 5m³ |
Weight: | 2ton | Certification: | ISO,CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Steel Billet Heating Furnace For Automatic Feeding And Discharging
Product Description
- 1.Using a zero-voltage scanning soft-start mode, in any case may at any time to start or stop, will not have impact on power supply.
- 2.Rapid melting, the production cost is low; Pollution is small, comply with environmental requirements;
- 3.A direct effect from the cold furnace melting. Dissolved material will be fully dumped clean. Molten material easy to replace.
- 4.Power adjustment flexibility. Be able to continuously smooth adjustment. Temperature uniformity can be easily controlled. Oxidation burning less. Metal components evenly.
- 5.Furnace shell using cast aluminum or steel structure, small footprint; Furnace flip dump convenience, according to the need to use electric, manual, hydraulic tilting furnace and other means.
- 6.Designed to automatically adjust angle of inverter circuit that can automatically adjust the load impedance match, without adjustment of capacitance compensation and always run the equipment in good working condition; Power supply system diagnostic error function, easy maintenance.
- 7. We will customize the furnace according to your request.
The main products
- 1. aluminum bar heating furnace;heating furnace of copper rods;stainless steel and other metal bar heating.
- 2. Intermediate frequency melting electric furnace; induction furnace, medium frequency induction furnace;copper melting furnace;cast iron melting furnace;intermediate frequency melting furnace of aluminum; medium frequency induction melting nickel;experimental electric furnace;noble metal smelting furnace;small smelting furnace;heat treatment equipment;intermediate frequency induction pipe bending equipment;medium frequency induction diathermy apparatus.
- 3.We will customize the furnace according to your request.
Power | KW | 50KW | 100 KW | 160KW | 250KW | 350KW | 500KW | 800KW | 1000KW | 1250KW | 1500KW | 2500KW |
Rated input voltage | V | 380V | 380V | 380V | 380V | 380V | 380V | 380V 380V-2 | 380V 380V-2 | 660V 380V-2 | 660V 380V-2 | 1000V 660V-2 |
Phases of input Power |
| 3 | 3 | 3 | 3 | 3 | 3 | 3/6 | 3/6 | 3/6 | 3/6 | 3/6 |
Frequency of Input Current | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Rated input Current | A | 80A | 160A | 256A | 400A | 560A | 800A | 1280A 640A | 1600A 800A | 1120A 1000A | 1350A 1200A | 2000A 1120A |
electricity power supply(recommend) | KVA | 60KVA | 120KVA | 200KVA | 315KVA | 400KVA | 500KVA | 800KVA 1250KVA | 1250KVA 1500KVA | 1500KVA 1800KVA | 1800KVA 2000KVA | 3000KVA 3500KVA |
Rated output voltage | V | 750V | 750V | 750V | 750V | 750V | 1500V | 1500V 2500V | 1500V 2500V | 2500V
| 2500V | 3500V |
Rated output frequency | HZ | 2-8KHZ | 2-8KHZ | 1-8KHZ | 1-4KHZ | 1-2.5KHZ | 1KHZ | 0.8KHZ | 0.8KHZ | 0.7KHZ | 0.7KHZ | 0.5KHZ |
Heating Furnace Cavity Temperature (Steel) | ℃ | 1200℃ | 1200℃ | 1200℃ | 1200℃ | 1200℃ | 1200℃ | 1200℃ | 1200℃ | 1200℃ | 1200℃ | 1200℃ |
Heating Furnace Cavity Temperature (Copper) | ℃ | 900℃ | 900℃ | 900℃ | 900℃ | 900℃ | 900℃ | 900℃ | 900℃ | 900℃ | 900℃ | 900℃ |
Heating Furnace Cavity(Aluminium) Temperature | ℃ | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ | 500℃ |
Production (Steel) | Kg/h | 125 | 249 | 398 | 622 | 871 | 1245 | 1992 | 2490 | 3112 | 3735 | 6220 |
Production(Copper) | Kg/h | 282 | 564 | 902 | 1410 | 1974 | 2820 | 4512 | 5640 | 7050 | 8460 | 14100 |
Production(Aluminium) | Kg/h | 234 | 468 | 748 | 1170 | 1638 | 2340 | 3744 | 4680 | 5850 | 7020 | 11700 |
Power Consumption Per Ton(Steel) | Kw.h/T | 350-550(Relation to Power, Frequency,Temperature,Shape,Density and Furnace Body Holding) | ||||||||||
Power Consumption Per Ton(Copper) | Kw.h/T | 150-300(Relation to Power, Frequency,Temperature,Shape,Density and Furnace Body Holding) | ||||||||||
Power Consumption Per Ton(Brass) | Kw.h/T | 130-270(Relation to Power, Frequency,Temperature,Shape,Density and Furnace Body Holding) | ||||||||||
Power Consumption Per Ton(Aluminium) | Kw.h/T | 180-400(Relation to Power, Frequency,Temperature,Shape,Density and Furnace Body Holding) | ||||||||||
Cooling water consumption | T/h | 3 | 5 | 8 | 10 | 11 | 15 | 20 | 25 | 28 | 35 | 43 |
Input Water Pressure | MPa | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 |
Weight | KG | 350 | 550 | 900 | 1200 | 1500 | 2000 | 3000 | 3500 | 4500 | 5500 | 6000 |
Volume | M3 | 3 | 3.5 | 3.6 | 4 | 5 | 5.5 | 6.5 | 7.5 | 9.5 | 11.5 | 13 |
According to Work Through Heating Diameter Choice Frequency:
Workpiece Diameter(mm) | ≤1 | 1-3 | 2-10 | 5-15 | 12-30 | 30-50 | 50-80 | 80-100 | ≥100 |
Heating Frequency(KHZ) | ≥100 | 30-150 | 10-50 | 8-30 | 4-20 | 2.5-4 | 1-2.5 | 0.5-1 | 0.2-1 |
Our company
Yiphee Electric Crucible Furnace passed ISO international quality system certification and EU CE Certification,and induction melting furnace for iron have been sold to many contries,such as Europe, Belarus, Russia, Kosovo, Portugal, Africa, Libya, Zambia, Zimbabwe, South America, Ecuador, Peru, Brazil, North America, Asia, Hong Kong, Vietnam, Malaysia, Indonesia, Myanmar, Saudi Arabia, Lebanon, Bahrain, Tajikistan, Uzbekistan, North Korea, Poland, Iran,Colombia, Australia,Iran,etc.
Welcome to visit us!
