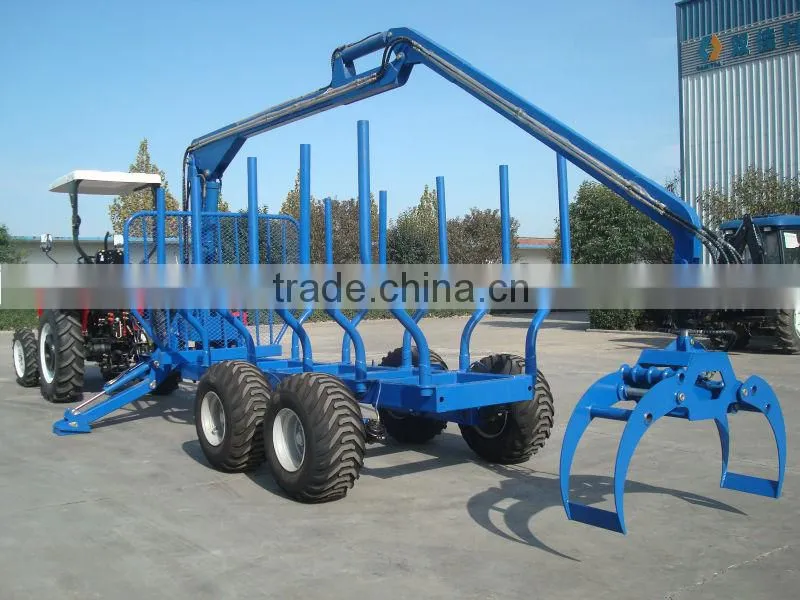

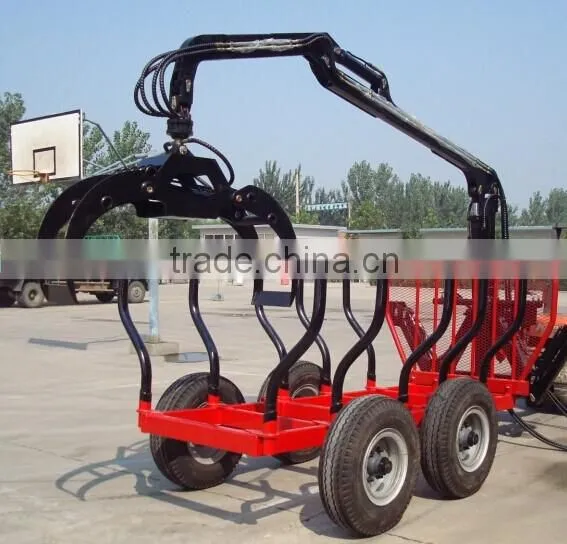

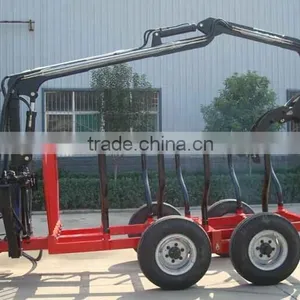

Shandong sunco ZM series log loader trailer manufacturer Usage:
Features of Log trailer:
1.ZM Series Log Loading Trailer for tractor is used in loading, unloading, transporting, stacking or unstacking of
wood, grass and reed, bamboo etc.
2.Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation, quick
mounting and dismounting.
3.used hydraulic oil commonly with tractor. The hydraulic elements are highly standardized, convenient
for operation and maintenance.
Application of log trailer:
1. ZM series timber trailer with crane can be combined with YTO,Foton,Lovol,Jinma,Chery,Foison,LT,QL,John Deere,Kubota, and etc.All these tractors can be matched 80~140hp with ZM8006 timber trailer.
2. ZM series timber trailer with CE Certificate,and ZM12006 timber trailer can combined with different kinds tractors home and abroad.Such asYTO,Foton,most our equipments be sold to Europe,Austalia,America and so on
Model |
ZM1002 |
ZM3004 |
ZM5004 |
ZM8006 |
ZM10006 |
ZM12006 |
|
Matching Power |
10-25 hp |
20-50 hp |
30-60 hp |
50-80 hp |
70-100 hp |
80 -140 hp |
|
Machine Weight (kg) |
1010 |
1790 |
2040 |
2750 |
3000 |
3200 |
|
Trailer Section: | |||||||
Trailer Model: |
TR10 |
TR30 |
TR50 |
TR80 |
TR100 |
TR120 |
|
N/W of Trailer (kg) |
420 |
690 |
940 |
1450 |
1700 |
1900 |
|
Rated Loading Capacity |
1T |
3T |
5T |
8T |
10T |
12T |
|
Loading Area |
0.85 m2 |
1 m2 |
1.6 m2 |
2.2 m2 |
2.5 m2 |
2.8 m2 |
|
Total Length of Trailer |
3.6 m |
5.1 m |
5.1 m |
5.9 m |
6.3 m |
6.3 m |
|
Trailer Loading Length |
2.0 m |
3.1 m |
3.1 m |
3.8 m |
4.3 m |
4.3 m |
|
Total Width of Trailer |
1.4 m |
1.6 m |
1.8 m |
2.2 m |
2.3 m |
2.5 m |
|
Assistant Hydraulic Steering |
No |
Standard |
|||||
Dia.of Traction Hole |
33 mm |
38 mm |
|||||
Tire Model |
6.00 - 13 |
7.00 - 16 |
8.25 - 16 |
400/60-15.5 |
|||
Crane Section: | |||||||
Model |
CR02 |
CR04 |
CR06 |
||||
Weight of Crane (kg) |
590 |
1100 |
1300 |
||||
Max. Arm Reach |
3.5 m |
4.3 m |
6 m |
||||
Lifing Capacity/Arm Reach (kg/m) |
400/2, 300/3, 200/3.5 |
900/2, 760/3, 500/4, 450/4.3 |
990/2, 760/3, 500/4, 340/5, 240/6 |
||||
Rotating Angle |
370° |
400° |
400° |
||||

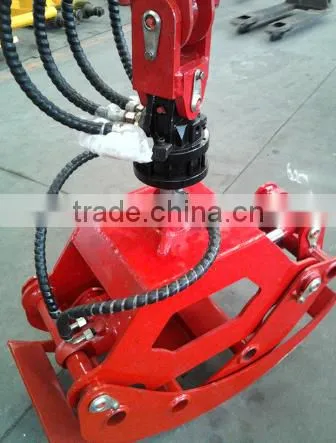

Grab Section: | |||||||

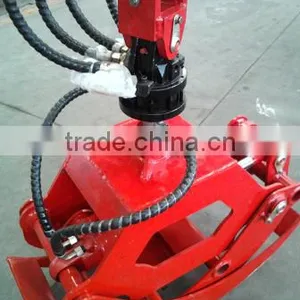

Grab model |
TG019 |
TG024 |
TG029 |
||||
Weight of Grab(kg) |
90 |
130 |
160 |
||||
Max. Grab Opening Width(mm) |
1140 |
1300 |
1430 |
||||
Grabbing Dia. of Logs(mm) |
80 - 420 |
70 - 485 |
75~530 |
||||
Power (option): |
PTO/ Gasoline Engine/ Diesel Engine |
||||||

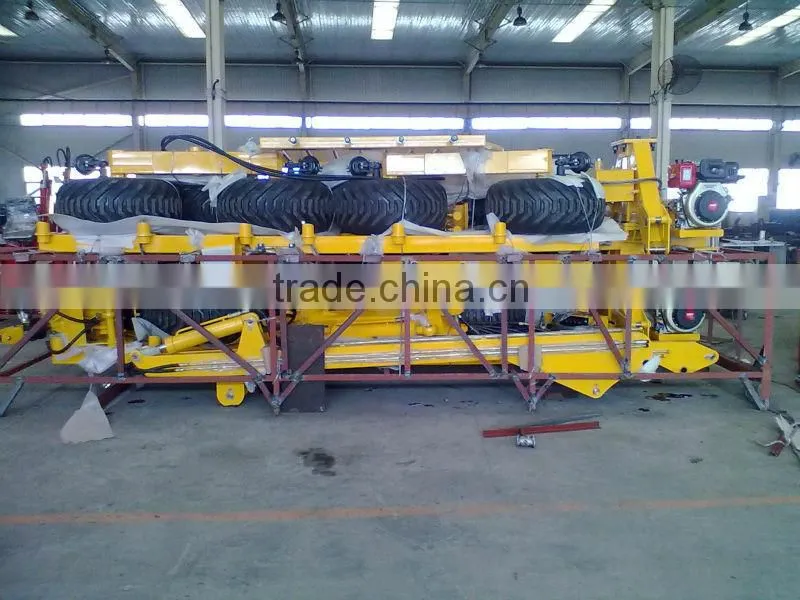

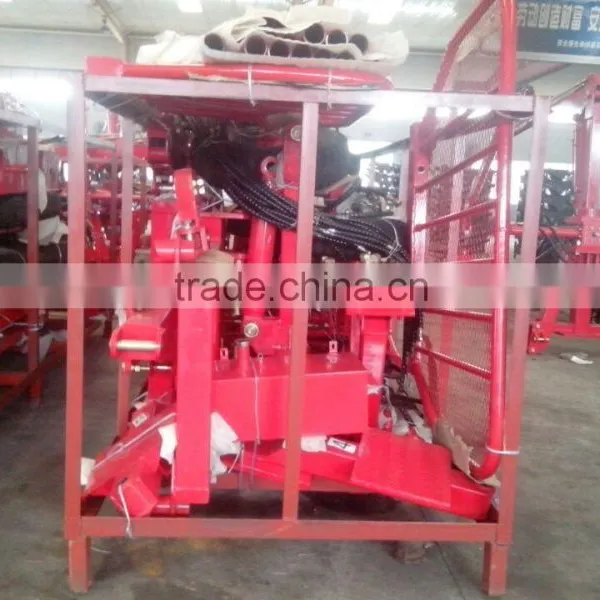

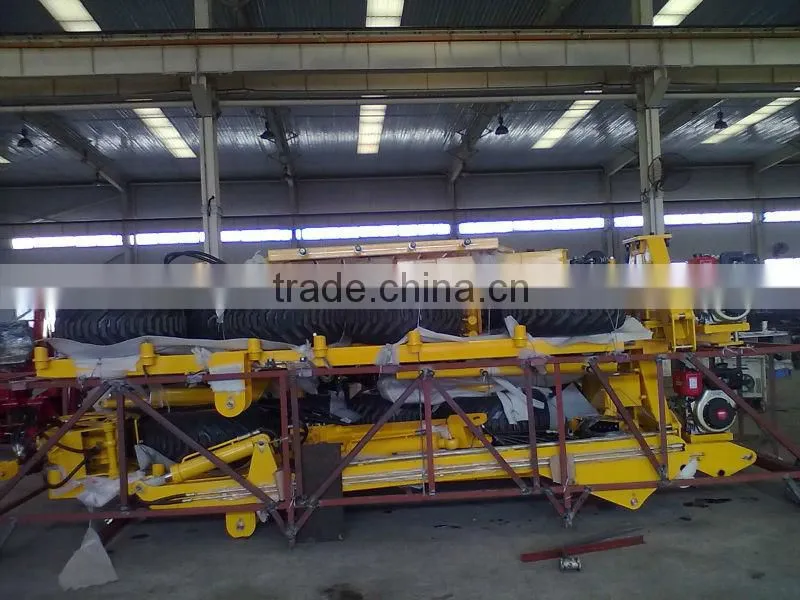

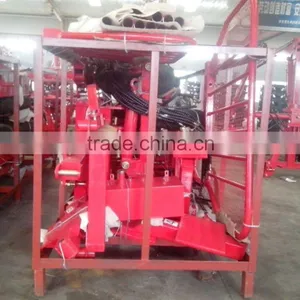

Packing and shipment

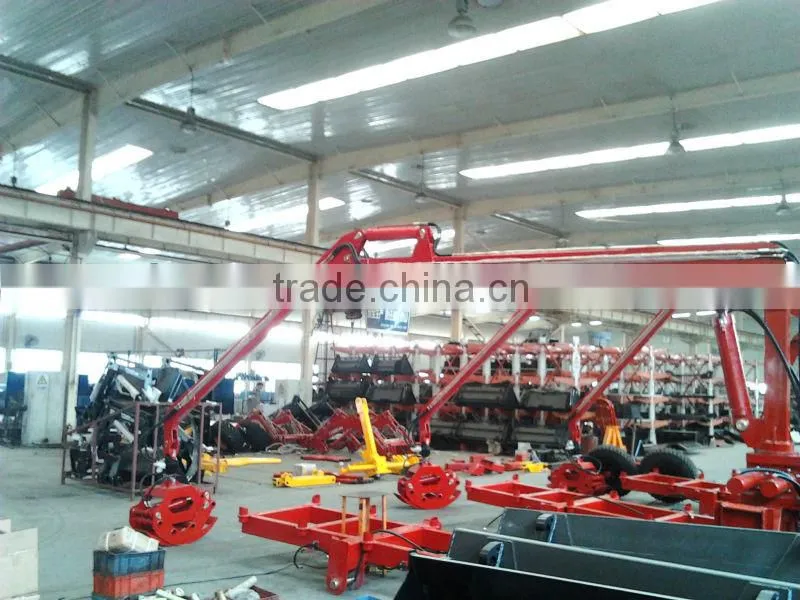

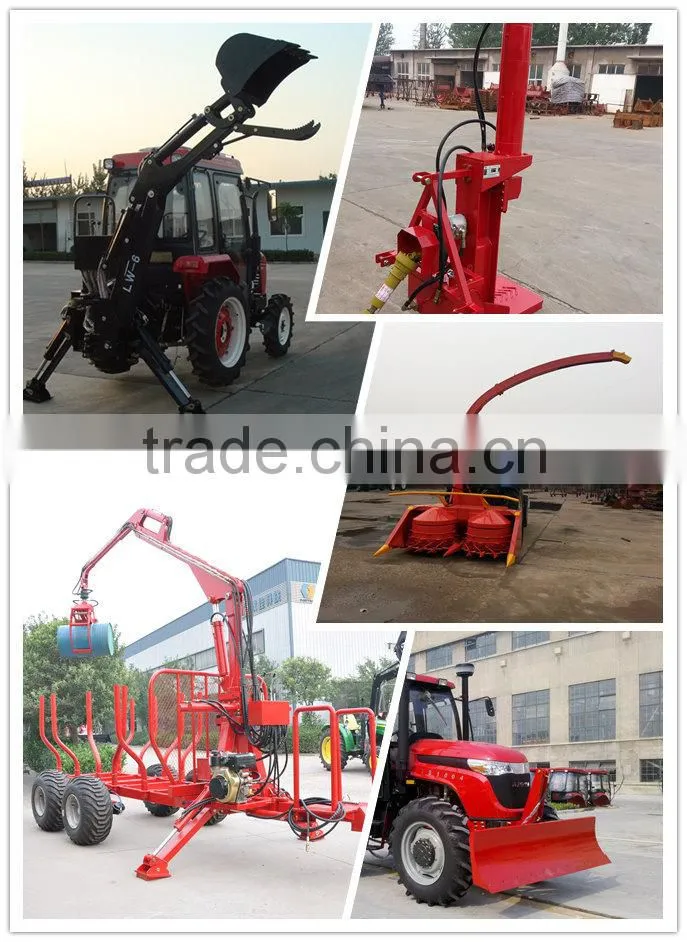

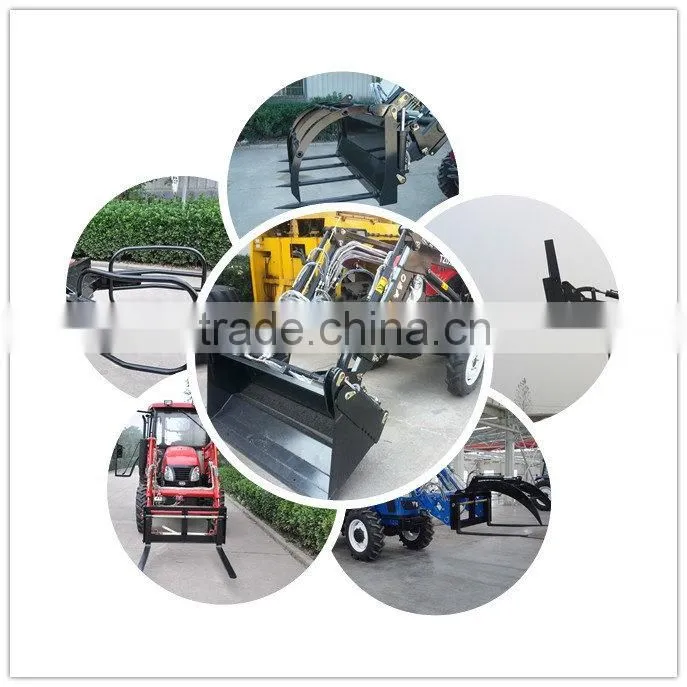

Product of company
