Best quality backhoe excavator/ hydraulic thumb backhoe
- 600 Unit / Units per Month
- Qingdao
- T/T
Product Details
Condition: | New | Application: | Excavate | Place of Origin: | Shandong, China |
Brand Name: | SAMTRA | Model Number: | LW-5, LW-6, LW-7, LW-8, LW-9, LW-10, LW-12 | Dimension(L*W*H): | According to model |
Weight: | 360-1500KG | Features: | Tractor Towable Backhoe | Certification: | CE Certificate |
Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

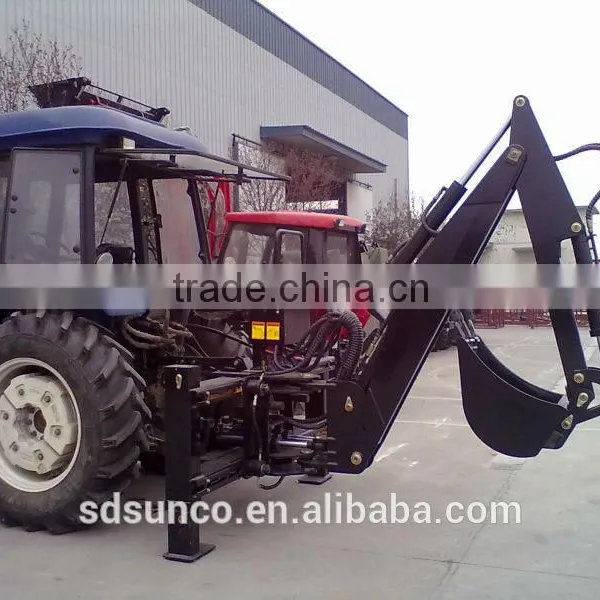

Best quality backhoe excavator/ hydraulic thumb backhoe
Introduction:
1. Mounted on 15-180hp , SUNCO factory direct supply towable backhoe for tractors is the powerful digging machine on farm land .It’s powered by tractor’s hydraulic system or PTO with gear pump.
Parameters for all models:
Backhoe Model |
|
| LW-5 | LW-6 | LW-6E | LW-7 | LW-7E | LW-8 | LW-8E | LW-10 | LW-10E | LW-12 |
Matching Tractor |
| hp | 15~25 | 20~35 | 30~55 | 50~90 | 70~120 | 100~180 | ||||
Max.Digging Depth | A | mm | 1650 | 2000 | 2400 | 2800 | 3200 | 3655 | ||||
Max.Unloading Height | B | mm | 1530 | 1860 | 2050 | 2380 | 2650 | 3627 | ||||
Max.Digging Height | C | mm | 2600 | 2970 | 3210 | 3460 | 3770 | 5040 | ||||
Working Radius | D | mm | 2300 | 2700 | 3140 | 3600 | 3920 | 4510 | ||||
Ground Clearance | E | mm | 450 | 500 | 700 | |||||||
Side Shift Distance | F | mm | 0 | 0 | 770 | 0 | 770 | 0 | 1000 | 0 | 1200 | 0 |
Min.Transporting Width | G | mm | 1150 | 1700 | 1470 | 1700 | 1470 | 1700 | 1700 | 1850 | 2000 | 2100 |
Max.Width of Supporting Legs | H | mm | 2100 | 2200 | 1470 | 2200 | 1470 | 2200 | 1700 | 2300 | 2000 | 2550 |
Bucket Width |
| in. | 14 | 16 | 18 | 20 | 22 | |||||
Bucket Capacity |
| m3 | 0.03 | 0.03 | 0.04 | 0.05 | 0.06 | 0.07 | 0.13 | |||
Weight |
| kg | 360 | 550 | 600 | 560 | 620 | 630 | 700 | 800 | 1000 | 1500 |
PTO Hydraulic System | 6/8/21 Splines(Option) | |||||||||||
Thumb Grab | Option |
1.It can share the tractor hydraulic system, or equiped with its independent PTO hydraulic system.
2.Stable and reliable hydraulic controlling system, high-precision hydraulic components.
3. With the adoption of unique 3-point hitch supporting frame the tractor rear wheels can be validly lifted up, large span stable support section will be formed, thus the operation safety and reliability are guaranteed.
4. Working on the field.
After service and Guaranty of our factory:
1.1years quality guaranty, the machine with main parts (excluding the consumables) shall be
changed free of charge when if any problem during the warranty period.
2. 12 hours on line service each day, free technical support.
3. Machine has been adjusted before delivery.
4. Provide technical services to the door
(We have professional engineers to offer machine installation commissioning and maintenance)
1. Must I get option PTO?
That is option for your choice on hydraulic source. Pump is connected with tractor and PTO shaft. If you have no tractor, the engine style will be good chioce.
2. How should I get the right size?
Let us know your tractor details such as brand&power so to get suggestion.
3. Is it difficult to connect or use?
Under standard 3-point hitch, SUNCO factory supplied towable backhoe for tractor is easily mounting and use. For perfect PTO, we'd better know your tractor pto teeth(6 or 8).
4. Can I only get 1unit?
Yes, available. We accept sample order.
5. Can I check factory or ask my people to check for me?
WELCOME! we suggest on checking before purchase. That's better for both you & us.
Please feel free to contact with me for more informations :))
