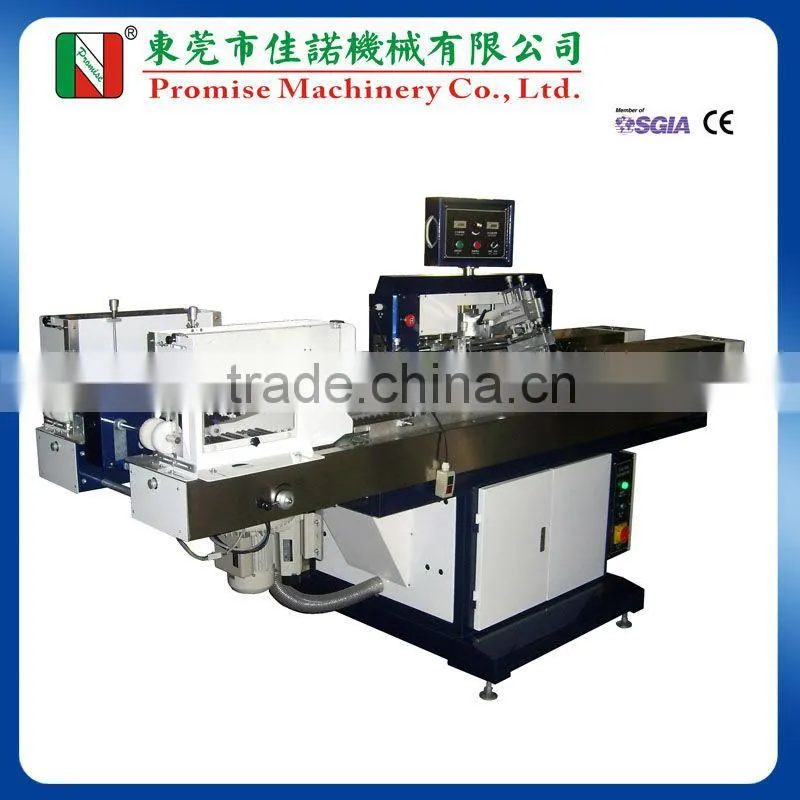

Model JN-AP280 Automatic Positioning Two Colour Pen Printing Machine

Specifications

1. Automatic 2 colour printing.
2. Automatic loading and unloading.
3. Automatic IR curing.

Model JN-AP280  Automatic Positioning Two Colour Pen Screen Printing Machine



Applications:



The screen printer was designed for small diameter objects such as pearl pen, pencil, mark pen, board pen, signature pen, eyebrow pen, labium cream, Injector, chopsticks and high speed screen printing.



Advantages:



1. Fully electric control, no need compressed air, automatic printing.

2. Automatic loading and unloading.

3. Double rail printing.

4. Can print two different objects/images at one time, and one colour or two colour printing.

5. Machine runs steady and smoothly. Printing stroke and printing speed are adjustable.

6. Can stop the any time for screen cleaning, ink adding.

7. Taiwan frequency conversion control make machine runs at constant torque, ensure the printing effect be consistent.

8. IR drying system online (UV drying system optional), achieve printing and drying meantime.

9. With vacuum function seated (optional) for precision orientation.

10. Installed surface cleaning device(optional).

11. Double blade design for high quality coating ink.

12. Eletron controlling ensure lower noise.



Specifications:



1	Objects diameter	One Colour: φ3~φ20 mm Two Colour: φ12~φ20 mm
2	Objects length	60~160 mm
3	Printing stroke	0~80 mm
4	Max printing speed	One Colour: 7200 pcs/hr Two Colour: 3600 pcs/hr
5	Max Frame dimension	300*200mm
6	Motor Wattage	4.3KW
7	IR wattage	1KW(up)+1KW(Down)
8	IR Length	800mm
9	Power Supply	220V, 50Hz
10	Dimension	3200 x 1120 x 1520mm
11	Net weight	about 630kg
