Model S6012UV Two Color Full Automatic Screen Printing Machine for Bottles
Descriptions:
This machine is widely applicable to high-precision pictures & words printing on the container surface in cosmetic, medicine, food, electric appliance, toy cabinet and many other fields.
It can meet all the demand of Arc surface printing, such as cylindrical, elliptic cylindrical and other heterotypic containers, and the machine is compatible for plastic, glass, and metal materials.
The electric control system consists of PLC and advanced touch screen as to intelligent operation for the whole machine.
The new transmission system consisted of advanced imported motor, speed converter device and pneumatic component which has the function of electrode less variable-speed, synchronous transmission, auto allocation and no-workpiece-no-printing.
Specifications:
1 | Round printing diameter | 20mm~110mm |
2 | Round printing height | 20mm~280mm |
3 | Oval printing diameter | R20mm~R180mm |
4 | Oval printing height | 20mm~280mm |
5 | Max printing speed | 3600Pcs/Hour |
6 | Power supply (single station) | AC380V 3Phase 50Hz |
7 | Rated power (single station) | 7.5KW |
8 | Air pressure (single station) | 5~7bar |
9 | Machine dimension (single station) | 2000mmx1200mmx1750mm |
10 | Machine weight (single station) | 1000KG |
Main Functions of This Machine:
1. Automatic loading conveyer system
2. Auto flame treatment for container surface
3. Electrode less variable-speed motor system
4. Adjustable mechanical synchronous transfer system
5. Auto pre-allocation system
6. No printing while no bottle system
7. UV-coating system
Main parts:
Machine main motor: MOTOVARIO
PLC: OMRON/PANASONIC
Photoelectric switch: AUTONICS/APT
Touch screen: PRO-FACE
Button switch: FUJU
Contactor: SCHNEIDER
Relay: IDEC/OMRON
Frequency converter: YASKAWA/PANASONIC
UV coating system: HONOVIA
Pneumatic components: SMC
Why choose us? Our Advantages:
How to order?
Inquiry → Quotation → Invoice → Payment → Production → Functional Test → Package → Delivery → Customs → Received → After Services
Cooperative Partners:
We do business with companies and customers all over the world. Please feel free to contact us.
Packing:
As the picture bellow, we pack goods with high standard ways to ensure the goods not damaged on the way of transportation.
Shipping Cooperators:
You can choose any shipping way as follow:
Our Services:
1. Quality Warranty: 3 years after sale, and provide lifelong machinery technical support.
2. Engineers available to service machinery overseas.
About our Company:
We are specialized in high-quality pad printers, screen printers, Traffic Cones Screen Printing Machine, hot stamping machines, heat transfer machines, water transfer machines, peripheral equipment and printing consumables. With customers' support and caring, we has experienced our steady development for more than 16 years.

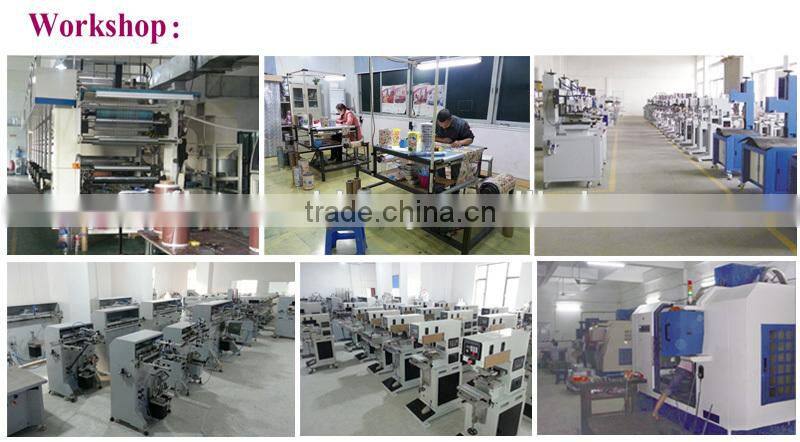

Workshop:
Certificates:
