Specifications
1. Automatic bottle screen printing.2. Automatic flame treatment.
3. Automatic UV curing.
4. Automatic loading and unloading

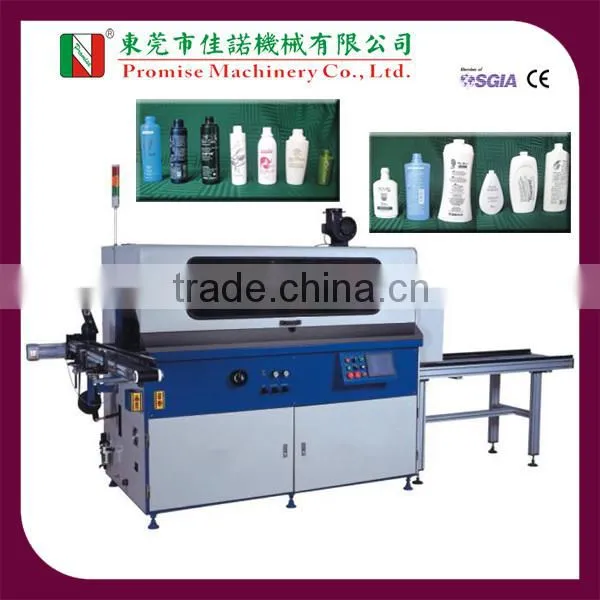

Model JN-AS101 One Color Automatic Screen Printing Machine for Bottles
Application:

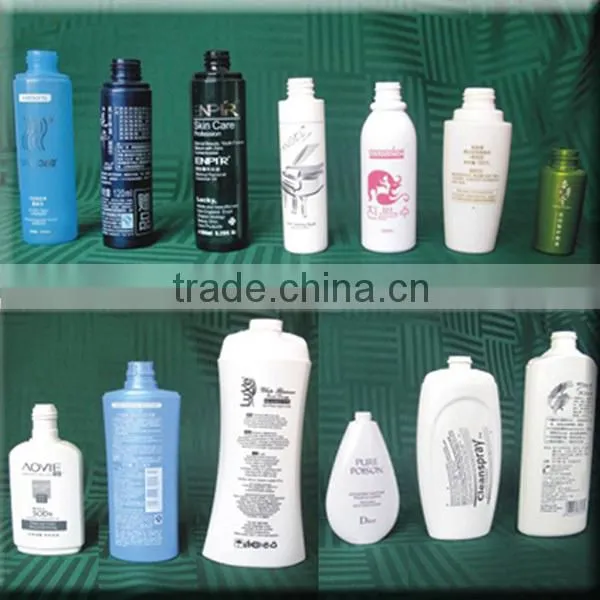

It is mainly designed for screen printing of round and oval/elliptical bottles.
Specifications:
| Product Shape | Round | Oval | |||
| Product Diameter / Width | Diameter: Ø20~100mm | Width: R25~200mm | |||
| Max. Printing Speed | 4000Pcs/Hr | 5000Pcs/Hr | |||
| Bottle Length | 50~300mm | ||||
| Max. Printing Size | 300*250mm | ||||
| Max. Screen Frame Size | 550*350mm | ||||
| Air Comsumption | 5~7bar | ||||
| UV Power | 4.5KW | ||||
| Machine Power | 6KW | ||||
| Power Supply | 380V/50Hz, 3 phase | ||||
| Machine Dimension | 1900*1000*1500mm | ||||
| Machine Weight | 600KG | ||||
Features:
1. PLC-programmable controller and touching screen has been employed, so it is convenient to operate.
2. The speed can be adjusted freely to meet different printing requirements.
3. The frication-proof belts are used for the in-feeding-conveyor so as to protect the bottles from frication.
4. The automatic and continuous flame-spread function has been set so as to meet different printing speed. And the security tempering defense device has been installed.
5. The split independent standard cylinder has been used as conveyor cylinder. And it is convenient to change and maintenance.
6. It has the blowing and pressure valve adjusting function, so the printing quality can be ensured.
7. The squeegee pressure can be adjusted. And the squeegee parts can be adjusted in the following direction: X, Y, and Zand Z-R. The angle can also be adjusted.
8. The machine has the function-no printing without bottles so as to meet high-speed printing requirements.
9. High-intensity UV curing system has been installed with.
10. It can connect with other multi-color screen printing machines according to customers' requirements.
Why choose us? Our Advantages:
How to order?
Inquiry → Quotation → Invoice → Payment → Production → Functional Test → Package → Delivery → Customs → Received → After Services
Cooperative Partners:
We do business with companies and customers all over the world. Please feel free to contact us.
Packing:
As the picture bellow, we pack goods with high standard ways to ensure the goods not damaged on the way of transportation.
Shipping Cooperators:
You can choose any shipping way as follow:
Our Services:
1. Quality Warranty: 3 years after sale, and provide lifelong machinery technical support.
2. Engineers available to service machinery overseas.
About our Company:
We are specialized in high-quality pad printers, screen printers, Automatic Screen Printing Machine for Bottles, hot stamping machines, heat transfer machines, water transfer machines, peripheral equipment and printing consumables. With customers' support and caring, we has experienced our steady development for more than 16 years.

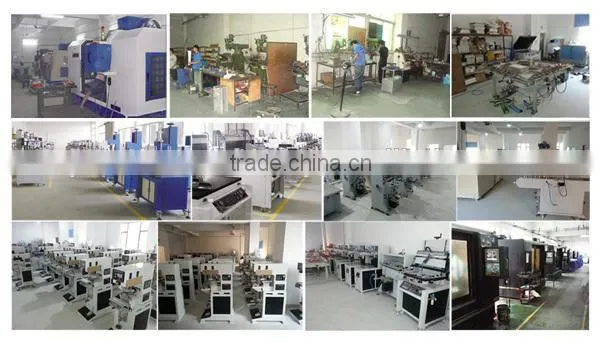

Workshop:
Certificates:
