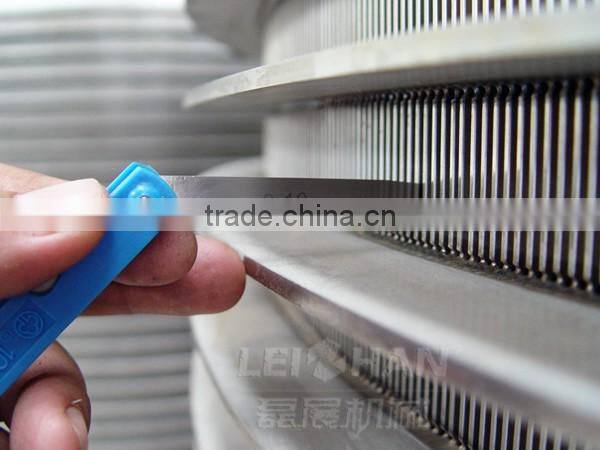

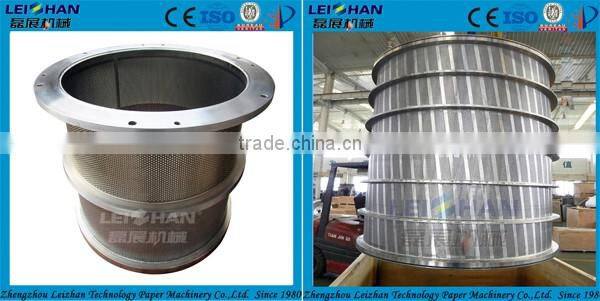

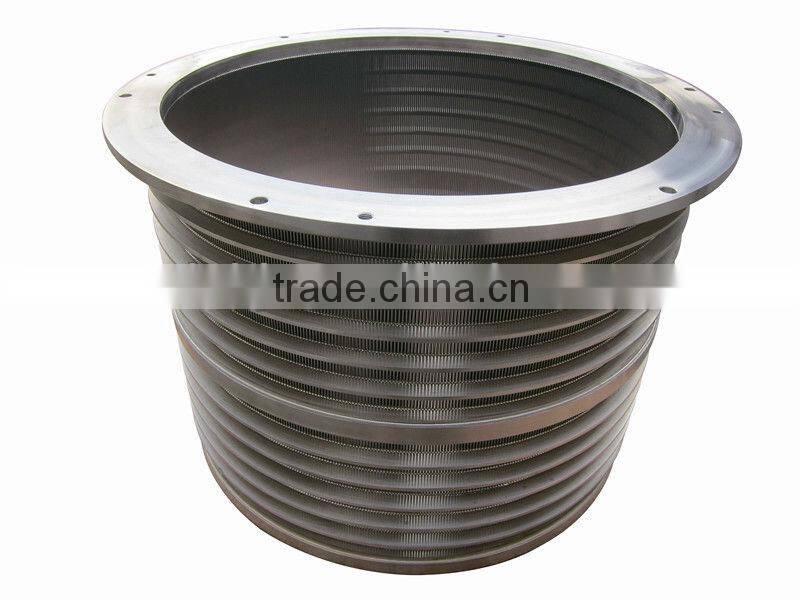

Screen Basket for Waste Paper Recycling System

Applications

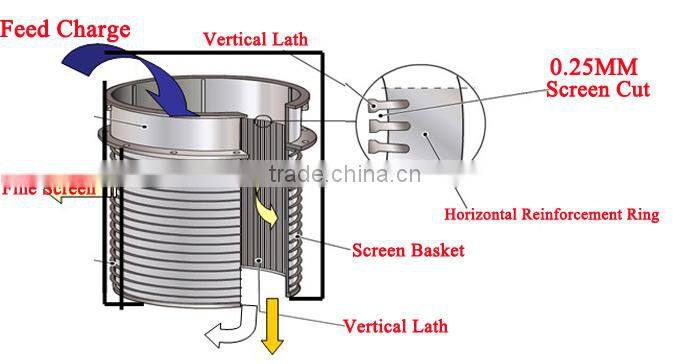

The Leizhan  sieve drum is perforation/hole or slot/wedge wire structure designed to achieve high efficiency screening of recycled, mechanical, and paper pulp fiber. The patent-pending design features a robust mechanical assembly and a high-precision wire positioning system to minimize slot width deviation.

 Features

• Mechanically held wires, built in the round
• Rugged, high mechanical strength
• Available for outward and inward flow screens
• Precise slot-width tolerance

Benefits

• High shive and stickies removal efficiency
• Maximized flow capacity
• Extended operating life
• Application flexibility

Specifications

       1.Materials: SS201, 304, 316, 316L
       2.Structure: perforation/hole or slot/wedge wire

       3.Be suitable for pressure screen

       4. Hardness: chrome-plated 200-250 micron, electrical polished

       •  Standard perforation diameter: more than φ1.2mm

            Plate thickness:6mm-12mm

       •  Screen slot: more than 0.1mm

           Plate thickness: 6mm-12mm

       •  Advanced technology, high machining accuracy, long service life

          Bar coating guarantee more than 0.20 mm

Usage:

Be suitable for all kinds pressure screen in pulp making system and paper making system.
