Drum pulper for wast paper pulping equipment/ China hydrapulper pulper price
- 1000 Set / Sets per Month
- Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Leizhan paper pulp desander/toilet tissue production line/craft paper
-
a4 paper making machine/ pulp machine/ paper making machine
-
High efficiency energy saving Mid Consistency Mixer, medium concentration mixer
-
High Quality ZPH Series Mid Consistency Mixer, Medium Mixer
-
New Waste Paper Recycling Equipment 200-2000 mm Stainless Steel Press Roll
-
Inverter 220v to 380v Press Roll for Small Scale Paper Mill
Product Details
Condition | New | Type | Other, hydrapulper | |
Computerized | Yes | Place of Origin | Henan, China | |
Brand Name | LeiZhan | Model Number | ZG series | |
Voltage | 380V | Power(W) | 132-1400kw | |
Dimension(L*W*H) | several meters long, up to each model | Weight | more than one ton | |
Certification | BV | Warranty | one year | |
After-sales Service Provided | Engineers available to service machinery overseas |
Wooden case or by your requst
Product Description
Drum pulper for wast paper pulping equipment/ China hydrapulper pulper price
Main technical parameters:
1Diameter of rotor drum: 2500mm
2Total length: 14.3m
3Motor: 132kw
4Capacity: 60-100tpd
5Pulp inflow consistency: 14-18%
6. Screening consistency: 3-5%
7.External size of drum body: 1430×3120×3150mm(Length×width×height)
8. Total weight: 48t, the weight of drum body: 33
A.Pulping equipment (D-type hydrapulper, cleaner, DD refiner, pressure
screen, screen basket, pulp pump etc.)
B.Paper machinery (Tissue/Toilet paper machine, Multi-fourdrinier paper
machine, head box, cylinder mould, dryer cylinder, roller etc.)
C.Paper making finished devices (Paper calender, pope reel,size press,
paper rewinder etc.)
ZG series drum Hydrapulper a new cylinder continuous pulping equipment. Before the area solutions for high-consistency pulping area, after the district for the screening area.
The high concentration of pulping area, waste paper is broken in the 14-18% concentration solution.

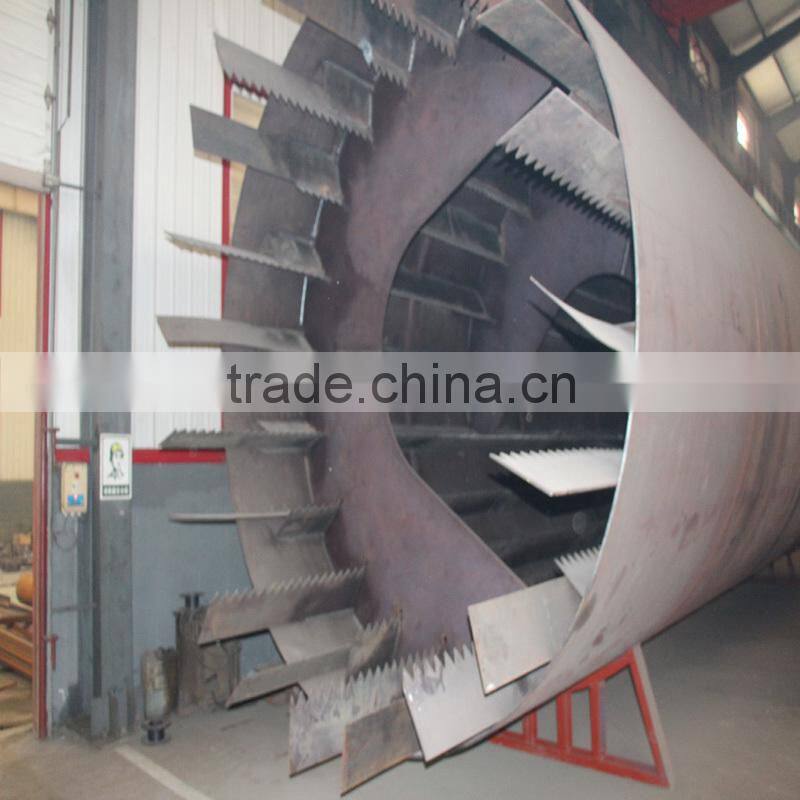

Axial partitions on the cylinder wall, repeat the waste paper with up and drop the bottom of the cylinder, resulting in a moderate shear force and friction, so that the ink particles in the waste paper, plastic materials and hot melt adhesives and other substances from loose down the fiber. No cut in the fiber separation process to reduce the impurities is broken to bring trouble on the operation.

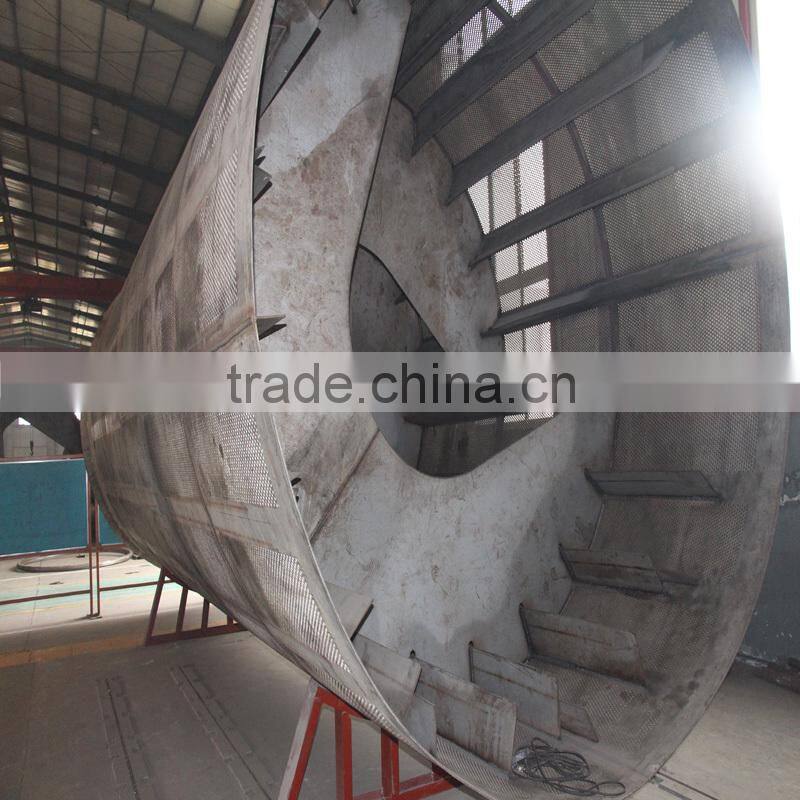

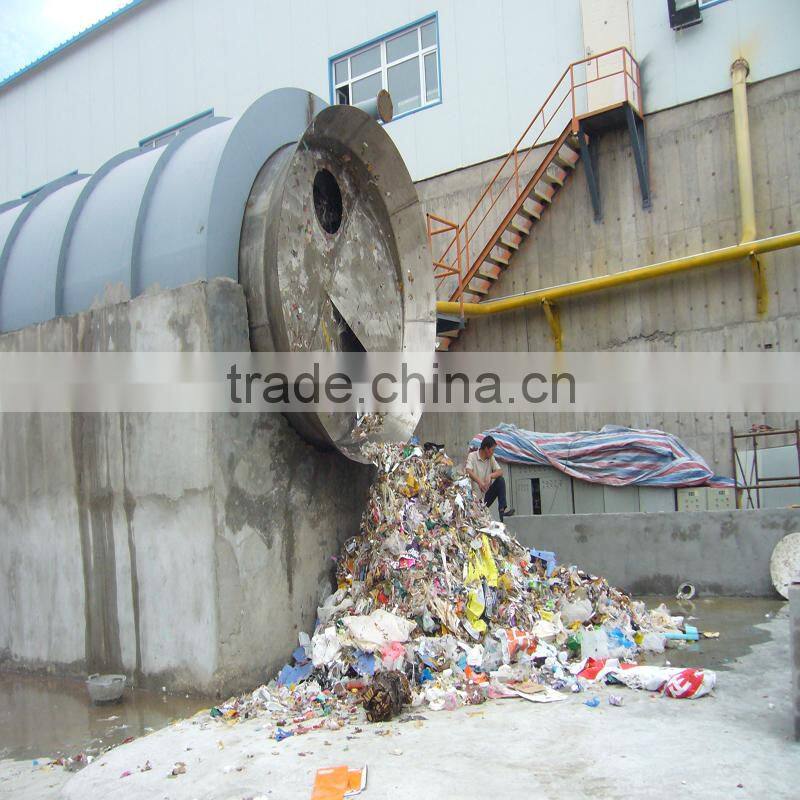

The rear area of the cylinder dilution screening area, the slurry solution was broken to 3-5% concentration filter, good slurry into the slurry tank, and residue from the cylinder end of discharge.
The drum Hydrapulper power consumption than traditional Hydrapulper, save about 50%, chemicals can be reduced by 10%, steam savings of more than 60%
1.It can save energy, for the power consumption of the drum pulper is as low as 14~18KWh per ton of pulp.
2.Soft pulping and screening will not destroy impurities and gooey. Quality of accepts is clean, while gooey content is low.
3.It is not powerful pulping, so there is little wear and tear, which brings little maintenance costs.
4.DIP waste paper deinking consistency is 18-20% higher, which can save chemicals about 15-20%.
5.The control is simple, while PLC automatic control can be used.
6.There are 3 types of drum pulper: A is suitable for OCC waste paper; B is suitable for AOCC waste paper; C is suitable for DIP waste paper deinking.

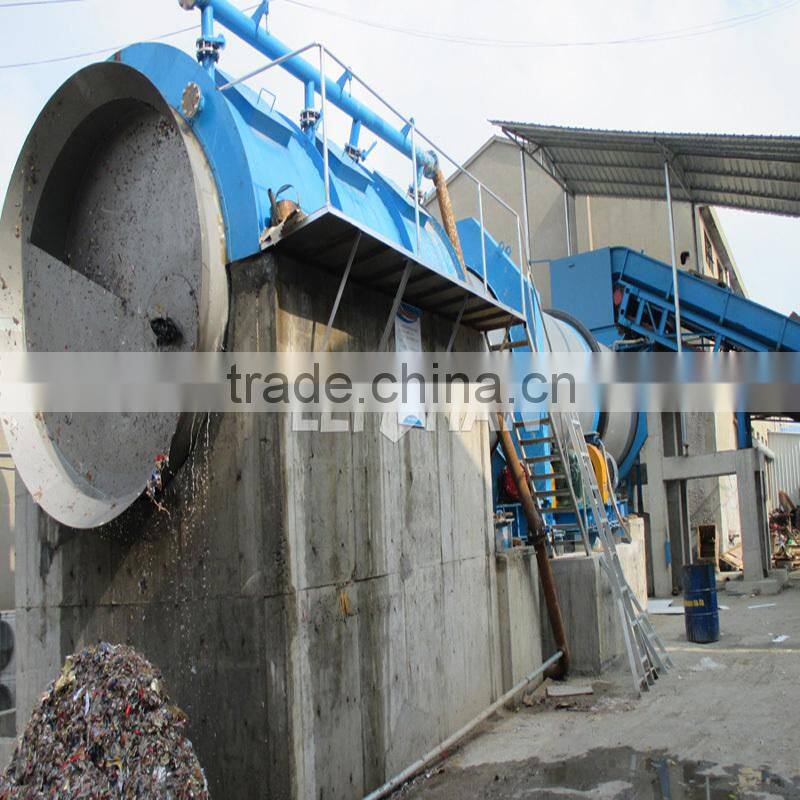

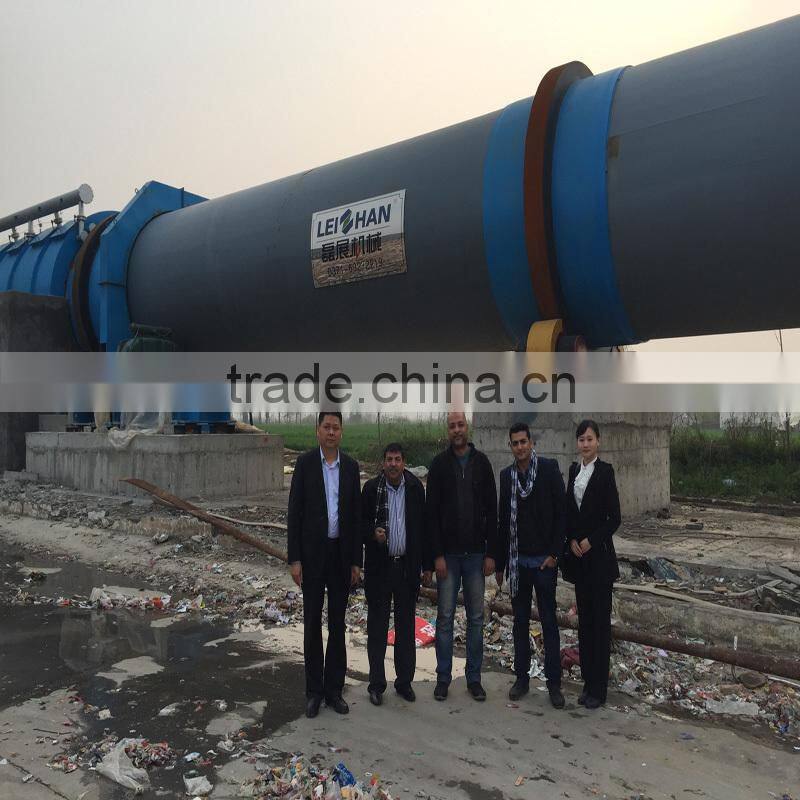

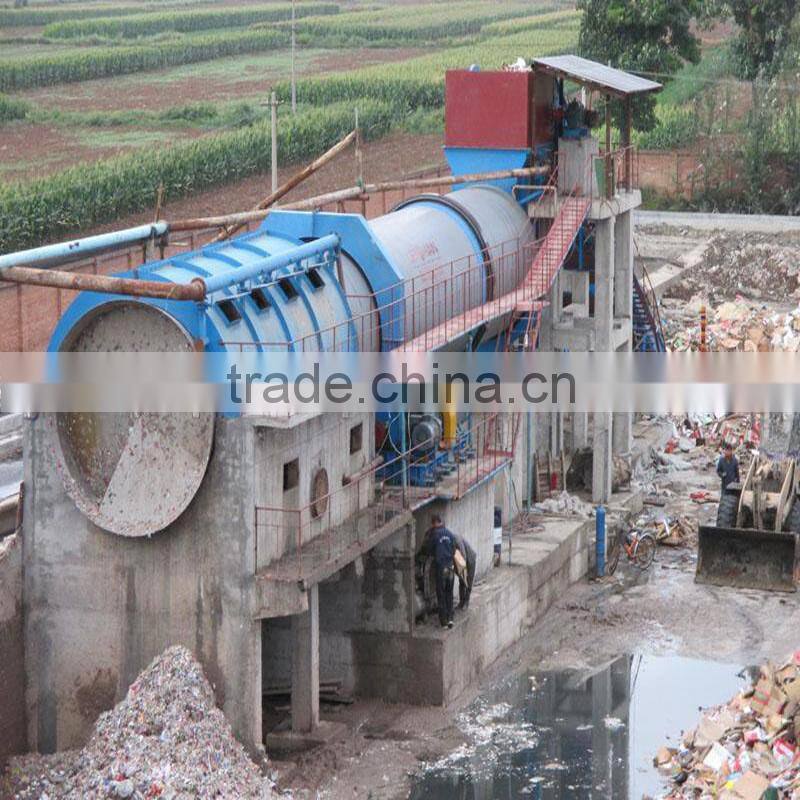

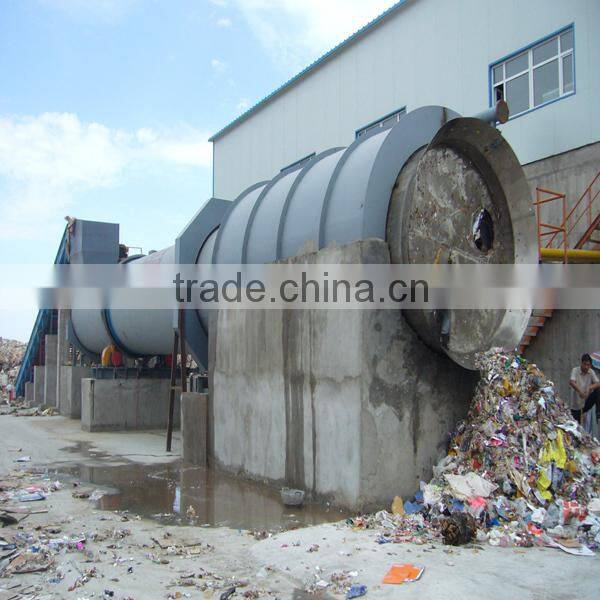

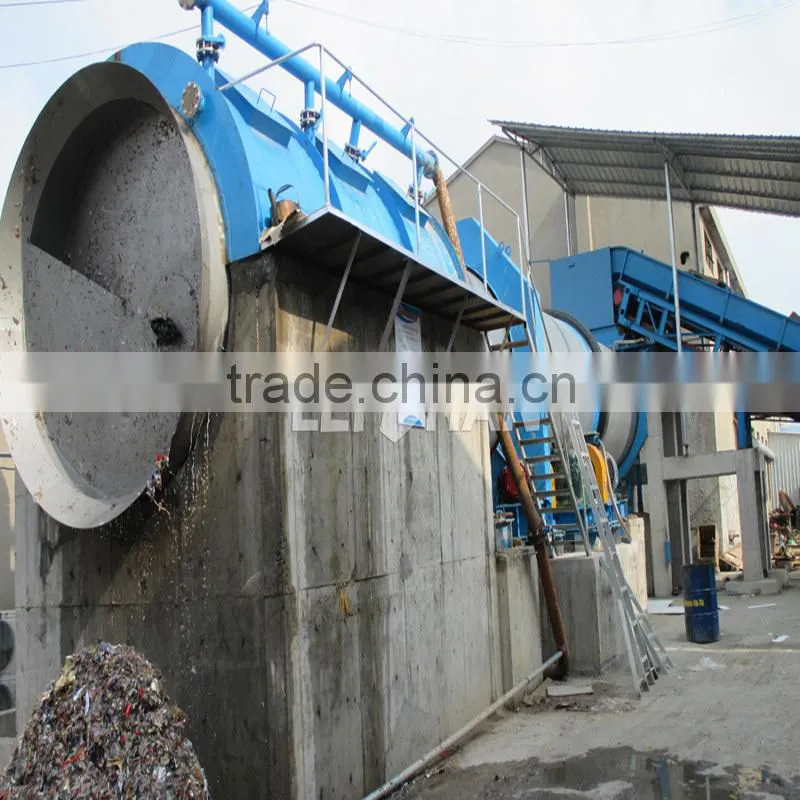

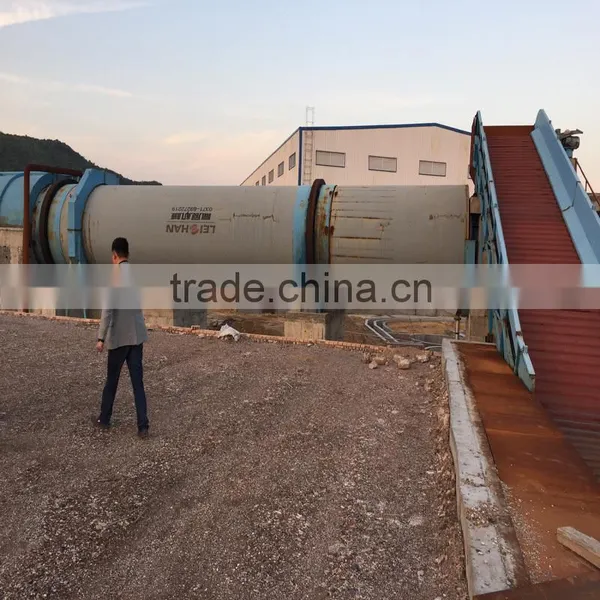

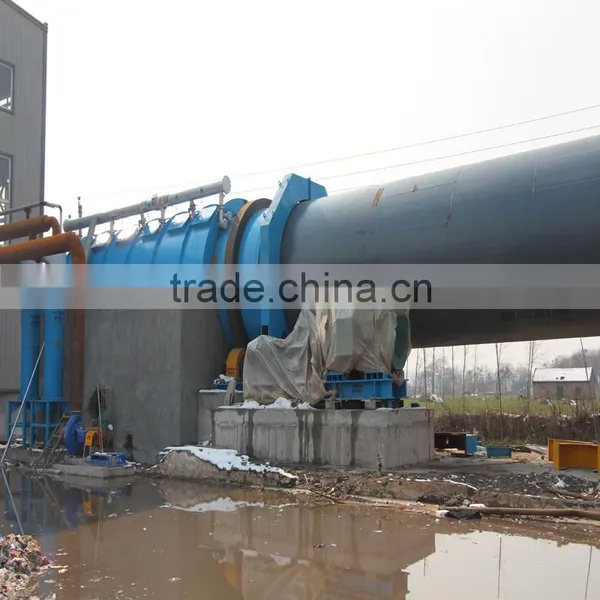

Working site

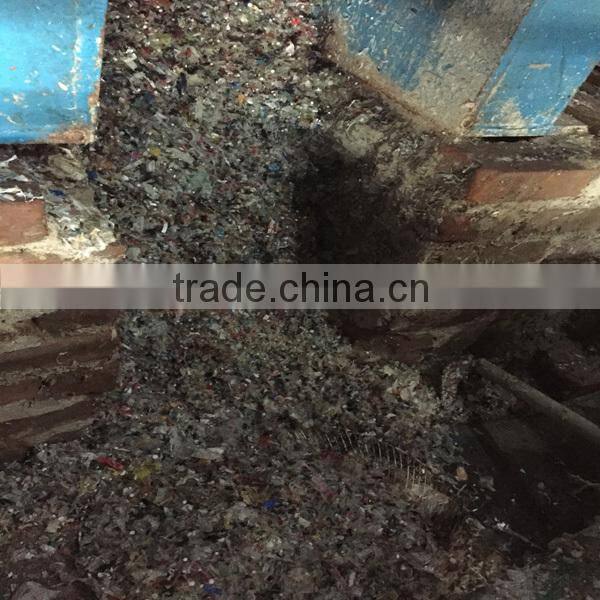

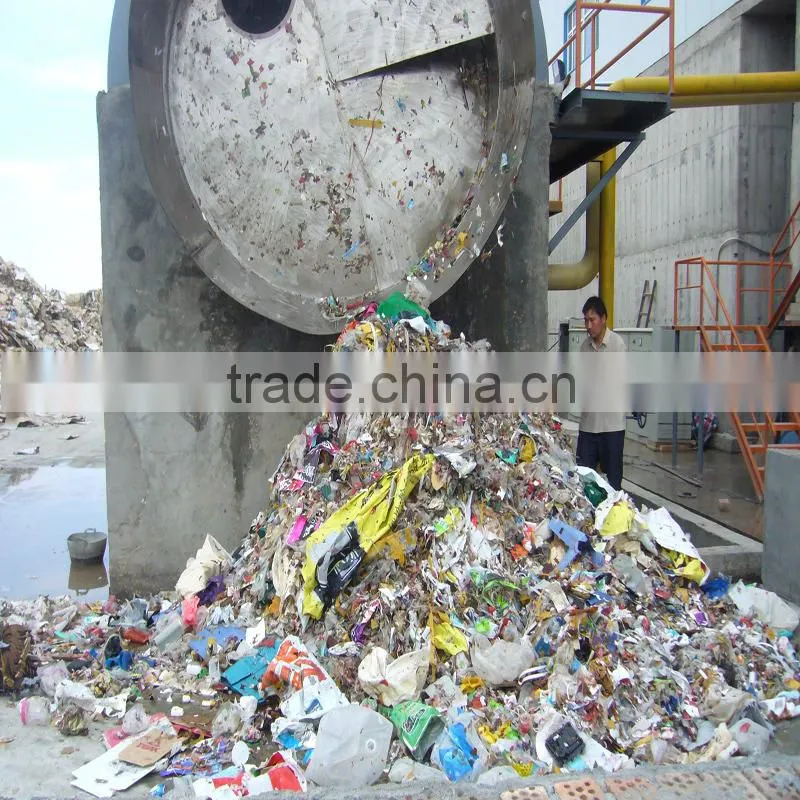

Impurities come from the cut opening .
Pre-sales Service
- Offering comprehensive technical and business consultation services;
- Proposing the most suitable scheme and equipment for our clients;
- Designing and fabricating targeted products according to the special requirements of clients;
- Training periodically high qualified service technician.
After-sales Service
- Highly inspecting equipments in every working procedure, quality comes first;
- Fast & Safe Delivery;
- Assisting our clients for foundation construction of equipments;
- Dispatching engineers to install and debug equipments;
- Training the first-line operators on site;
- Regularly visit clients to solve production problems;
- Providing good life-long maintenance service;
- Providing technical service with a technical service team.
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment.
Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support.
With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.
Company Profile

Zhengzhou Leizhan Technology Paper making machinery Co.,Ltd is a professional manufacturer of pulp and papermaking equipments, which engaged in research and development, manufacture and sale, now has successfully developed the marketable high consitency pressure screen, inflow pressure screen and D type Hydrapulper, and become the leader manufaturer in this area for the domestic market. This company is located in Zhengzhou City, Henan Provice, covering 40 thousand square meters. It has total assets of 50 million, over 200 employees including 10 senior engineers. This company has been certified for State ISO9001 Quality System Certification and owns 14 patents. Leizhan is designed with low carbon enviromental protaction, pays more attention to the international technical cummunication and cooperation, The main series of the products are waste paper delivery, waste paper bale breaking and screening, waste paper pulping, heavy slag cleaning, screening, deinking, concentration, heat dispersion, pulping, mixing and pulp conveying etc. Leizhan has processing and testing equipment like CNC cutting machine, sand blasting system, vertical and horizontal CNC lathe, planer milling machine, vertical boring machine, automatic continuous welding machine, CNC bending machine, CNC shearing machine, veneer reeling machine, 1200 tons of press machine, high speed dynamic balance correction machine, assembly test table etc. By more than 30 year's development, facing the new market condition and competition, we will improve and strengthen our brand strategy continuously, regard quality and service as the foundation of long-run development, by implementing the innovation of technology and management, based on pulper equipment, we strive forward to the international stage actively.
