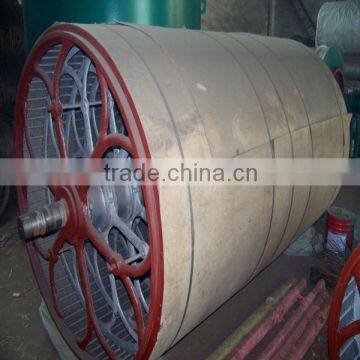

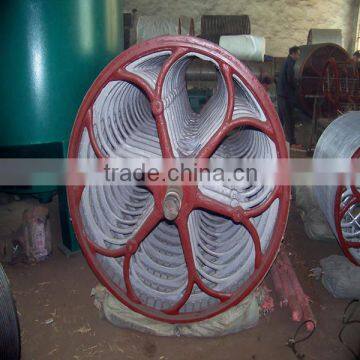

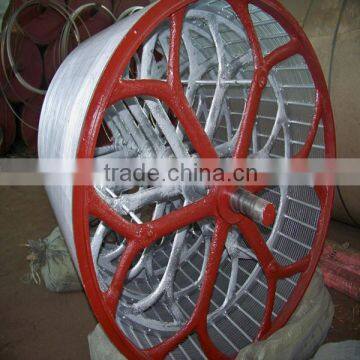

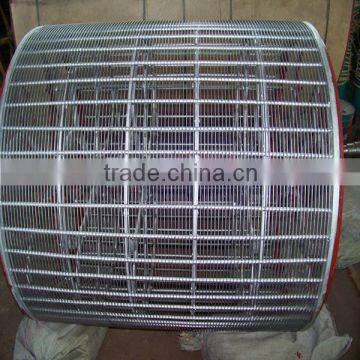

Industrial paper machine equipment/ paper processing machinery/ cylinder mould
Cylinder Mould is used in the forming section of paper making machines and thickener, our Cylinder Mould features in high speed, high strength, low power consumption, long life time for wire.
Technical Parameter
Model |
3.5m2, 5m2, 8m2, 10m2, 15m2, 20m2, 25m2, 30m2, 35m2, 40m2, 45m2, 50m2, 60m2 |
| Face with | according to the customer's request |
Speed |
according to the customer’s request |
Optional supply list |
Bearing and related accessories, Wire (Stainless steel or Synthetic high polymer) |
1/Diameter 1500mm
2/Face length 2000mm
3/Diameter of SS stick 12mm
4/Qty of SS stick 80
5/Qty of middle supportchip 14 pcs
6/Thickness of SS strip 15mm
7/Diameter of axis 180mm
8/Bearing model 113624
9/Stainless steel winding scrip δ= 1.5 ×25mm
10/Outer arm of wheel made by cast iron
11/Inner arm of wheel made by cast iron
12/Pull rod Q235A 3sets
13/Axle:it is made byΦ180mm seamless steel pipe. Wall thickness is 14mm. the material of spindle nose is carbon steel., thermal refining.
14/Technical requirement: surface polishing, winding scrip chamfering, knurl treatment, straightness of oversheet≤0.025mm/m, static equilibrium.
17/Dimension:1.6mx1.6mx2.4m
18/weight:1ton per set
Main Character:
Different usage type:paper making cylinder mould,concentrate cylinder mould.
Different structure type:common,air exhause,vacuum.
Different material type:stainless steel
Specification diameter(mm): 1000,1250,1500,1800,2000
Working face range:1000-5000mm
Main character : improve water filter area and speed, increase the capacity.
Installation site
Whole Stock Preparation Line In Egypt
Project: Whole set of 150t/d Kraft Liner, Fluting, White board paper, T-paper Stock Preparation Line.
Customer company: Egypt Al- Karma Paper Industries
Address: Sadat city, Egypt.
Time: 2015
Working Site
Project: 600T/D T-Paper, Fluting&Testliner Paper production line .
Project: Toilet Tissue Roll Making Project Egypt.
Zhengzhou Leizhan Technology Paper Machinery Co.,LTD is a professional manufacturer with more than 30 years manufacturing experience in making complete set of screening, impurity removal, pulping and refining equipment. Our company is located in Zhengzhou which is the hometown of machinery in Henan Province. We have more than 200 staffs including 50 engineering technicians which can be your best technical support. With high quality products and perfect pre-sale and after-sale service, we have won lots customers from all over the world.

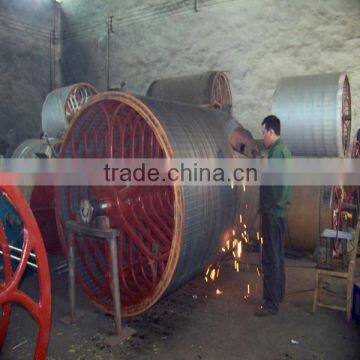

Factory show
Every year, We participate in international exhibition including that in India, Egypt, Shanghai, Beijing, Guangzhou, China etc.
Q: What's your advantages?
A: We have more than 30 years experience in the field of papermaking industry. 20000 square meters workshop with more than 200 staffs including 50 engineers.
Q: What are your company's flagship products?
A: Our pulp equipment is advanced like screening, impurity removal, pulping and refining equipment.
Q: Where is your company's advantage in the industry ?
A: We have 30 years experience, We are leading in terms of pulping equipment,
in addition, we provide a more personalized service.
