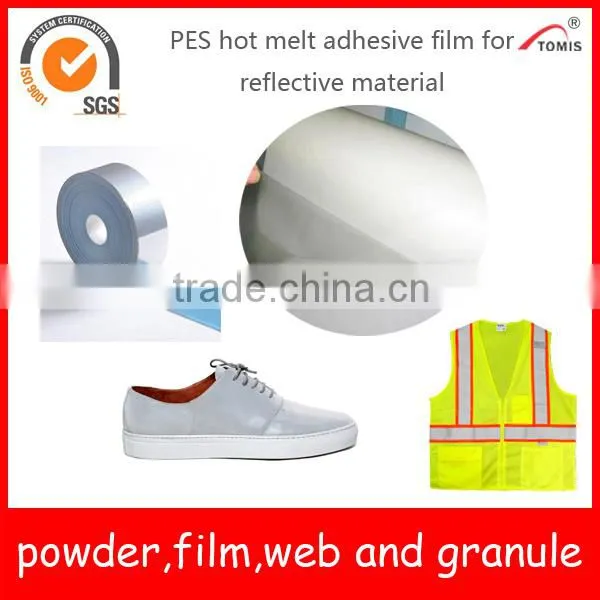

PES/copolyester hotmelt adhesive film for reflective heat transfer film

Specifications

A.PES hot melt adhesive film
B.Y1205F5 without release paper
C.reflective heat transfer film
D.Save labor cost,CS4002-B

Co-polyester hotmelt adhesive film for reflective heat transfer film





A.Feature

Low temp,save labor cost,good bond strength,good in resistance to water,no leaking,environmentally

friendly etc.



B.Application

Wildly used for garment labels;embroidery patches and badges;top fly of outdoor jacket;cap peak;

mesh fabric lamination for sport shoes;reflective materials;car mats;car seats;automobile trims;conductive

cloth,conductive foam;polishing wheel;heat and sound insulation materials;PVC,PE materials lamination etc.



C.Specification

Width:1cm - 150cm

Thickness:0.03mm - 0.3mm

Length:100 yards /roll or according to the customers’requirement



D.Technical data



Product	Y1201f	Y1205f
Melting temp   (°C)	105-115	110-120
Melt Index (g/10min@160°C)	30	20
Viscosity     (Pa.s@160°C)	350	380
Operating temp (°C)	130-155	140-160
Operating time (S)	10-20	10-20
Operating pressure (kg/cm2)	0.5-1.5	0.5-1.5
Resistance to washing	40°C Good	40°C Good
Resistance to laundry	No	No



E.Process suggestion

The product will be processed by high-frequency machine,laser cutting machine,heat roller machine,flat-bed heat press machine,iron etc.



F.Packages&Stores

2rolls/ctn or pallet packing;to avoid UV,it is put on wooden pallets and kept in cool and dry places



Remarks:The above information and technical support are based on our current knowledge and experience.The yare without

guarantee and legal claim.To obtain the best processing conditions,we suggest customers test the samples before using

our products.



G. Applications



1. PES Hotmelt Adhesive Film for cap peak



2. PES Hotmelt Adhesive Film for car mats



3. PES Hotmelt Adhesive Film for car trim



4. PES Hotmelt Adhesive Film for conductive cloth



5. PES Hotmelt Adhesive Film for conductive clothes



6. PES Hotmelt Adhesive Film for conductive foam



H.Packaging and Shipment

Powders and granule
1. 20kgs/bag & 25kgs/bag, with composite kraft paper bag
2. palletizing suitable for sea and air transportation
3. shrink film



Films and web
1. 1-2 rolls packed by composite kraft paper bag
2. palletizing, suitable for sea and air transportation
3. shrink film
