Help CenterPES/copolyester Hotmelt Adhesive Film for Fabric Laminating
Related Products
-
Woodworking Adhesive FilmUS$ 0.6 - 3MOQ: 3000 Square Meters -
Thermo Hot Melt Adhesive FilmsUS$ 0.6 - 3MOQ: 3000 Square Meters
-
Thermoplastic Adhesive FilmsUS$ 0.6 - 3MOQ: 3000 Square Meters
-

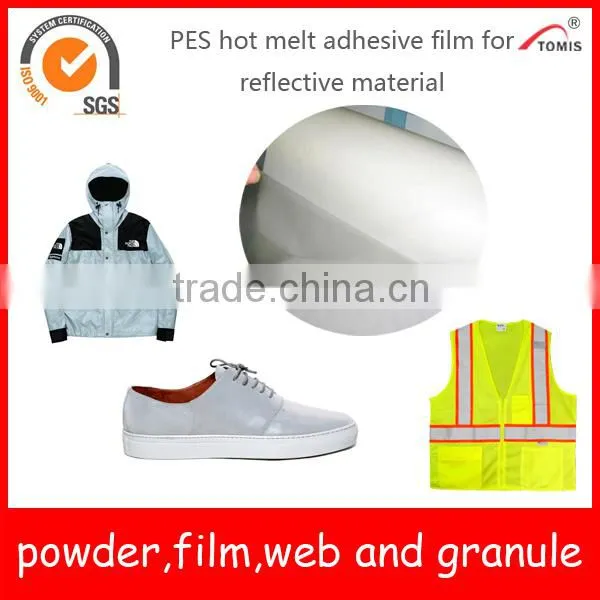

PES/copolyester Hotmelt Adhesive Film for Reflective MaterialUS$ 0.6 - 3MOQ: 3000 Square Meters
-
PES/copolyester Hotmelt Adhesive Film for Reflective TapeUS$ 0.6 - 3MOQ: 3000 Square Meters
Specifications
A.hot laminating film thermal laminating filmB.Y1205F5 without release paper
C.reflective heat transfer film
D.Save labor
Co-polyester hotmelt adhesive film for reflective stickers
A.Feature
Low temp,save labor cost,good bond strength,good in resistance to water,no leaking,environmentally
friendly etc.
B.Application
Wildly used for garment labels;embroidery patches and badges;top fly of outdoor jacket;cap peak;
mesh fabric lamination for sport shoes;reflective materials;car mats;car seats;automobile trims;conductive
cloth,conductive foam;polishing wheel;heat and sound insulation materials;PVC,PE materials lamination etc.
C.Specification
Width:1cm - 150cm
Thickness:0.03mm - 0.3mm
Length:100 yards /roll or according to the customers’requirement
D.Technical data
Product |
Y1201f |
Y1205f |
Melting temp (°C) |
105-115 |
110-120 |
Melt Index (g/10min@160°C) |
30 |
20 |
Viscosity (Pa.s@160°C) |
350 |
380 |
Operating temp (°C) |
130-155 |
140-160 |
Operating time (S) |
10-20 |
10-20 |
Operating pressure (kg/cm2) |
0.5-1.5 |
0.5-1.5 |
Resistance to washing |
40°C Good |
40°C Good |
Resistance to laundry |
No |
No |
E.Process suggestion
The product will be processed by high-frequency machine,laser cutting machine,heat roller machine,flat-bed heat press machine,iron etc.
F.Packages&Stores
2rolls/ctn or pallet packing;to avoid UV,it is put on wooden pallets and kept in cool and dry places
Remarks:The above information and technical support are based on our current knowledge and experience.The yare without
guarantee and legal claim.To obtain the best processing conditions,we suggest customers test the samples before using
our products.
G. Applications
1. PES Hotmelt Adhesive Film for cap peak
2. PES Hotmelt Adhesive Film for car mats
3. PES Hotmelt Adhesive Film for car trim
4. PES Hotmelt Adhesive Film for conductive cloth
5. PES Hotmelt Adhesive Film for conductive clothes
6. PES Hotmelt Adhesive Film for conductive foam
H.Packaging and Shipment
Powders and granule
1. 20kgs/bag & 25kgs/bag, with composite kraft paper bag
2. palletizing suitable for sea and air transportation
3. shrink film

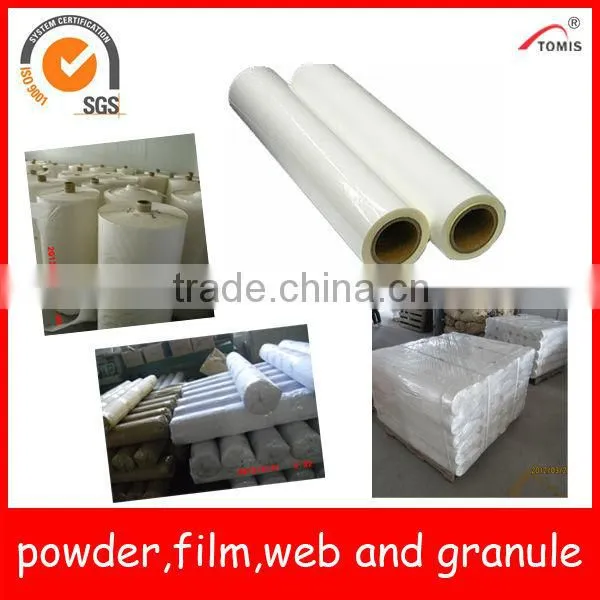

Films and web
1. 1-2 rolls packed by composite kraft paper bag
2. palletizing, suitable for sea and air transportation
3. shrink film
