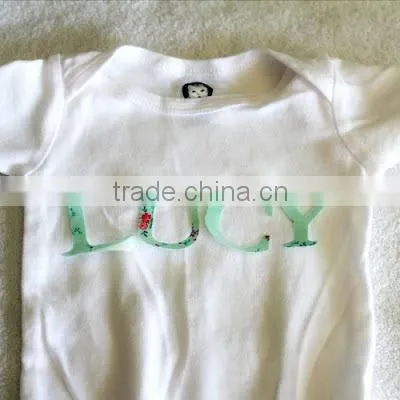

TPU/PES hot melt adhesive film is back adhesive of DIY heat transfer Vinyl
Step 1. Heat laminate our hot melt adhesive film on the vinyl
Step 2. make computer design
Step 3. Laser cutting
Step 4. heat transfer
Welding film / welding adhesive / fusible film / fusible adhesive
Polyurethane hotmelt adhesive film—TPU
A.Feature
Low temp,save labor cost,feel soft,good toughness,good bond strength,water proof,good resistance to water
and dry laundry, no leaking,environmentally friendly etc.
B.Application
Wildly used for seamless zipper,seamless pocket,top fly,mesh fabric lamination for sport shoes,seamless
underwear,TPU and leather lamination,seamless mobile phone case,plywood,metal film,conductive fabric,
reflective materials,automobile trims,IC card sealing,PVC lamination etc.
C.Specification
Width:1cm - 150cm
Thickness:0.03mm - 0.3mm
Length:100 yards /roll or according to the customers’requirement
D.Technical data
Product |
U1105f |
T6108f |
T6109f |
T808f |
T6208f |
T908f |
Melting temp (°C) |
85-105 |
95-105 |
65-85 |
95-115 |
95-115 |
115-125 |
Melt Index (g/10min@160°C) |
15-25 |
6-12 |
15-25 |
10-20 |
8-15 |
2-8 |
Viscosity (Pa.s@160°C) |
300 |
350 |
300 |
320 |
350 |
400 |
Operating temp (°C) |
125-150 |
135-150 |
105-125 |
125-145 |
135-155 |
145-160 |
Operating time (S) |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
10-20 |
Operating pressure (kg/cm2) |
0.5-1.5 |
0.5-1.5 |
0.5-1.5 |
0.5-1.5 |
0.5-1.5 |
0.5-1.5 |
Resistance to washing |
Good |
Good |
Good |
Good |
Good |
Excellent |
Resistance to laundry |
Good |
Good |
Good |
Good |
Good |
Excellent |
E.Process suggestion
The product will be processed by high-frequency machine,laser cutting machine,heat roller machine,flat-bed heat press machine,iron etc
F.Packages&Stores
2rolls/ctn or pallet packing;to avoid UV,it is put on wooden pallets and kept in cool and dry places.
Remarks:The above information and technical support are based on our current knowledge and experience.The yare without guarantee
and legal claim.To obtain the best processing conditions,we suggest customers test the samples before using our products.
G. Applications
1. TPU Hotmelt Adhesive Film for underwear
2. TPU Hotmelt Adhesive Film for outdoor garment
3. TPU Hotmelt Adhesive Film for mesh fabric lamination for tablet PC cover
4. TPU Hotmelt Adhesive Film for mesh fabric lamination for sports shoes
5. TPU Hotmelt Adhesive Film for seamless pocket
6. TPU Hotmelt Adhesive Film for leather labels
H. Packaging and Shipment
Powders and granule
1. 20kgs/bag & 25kgs/bag, with composite kraft paper bag
2. palletizing suitable for sea and air transportation
3. shrink film
Films and web
1. 1-2 rolls packed by composite kraft paper bag
2. palletizing, suitable for sea and air transportation
3. shrink film
