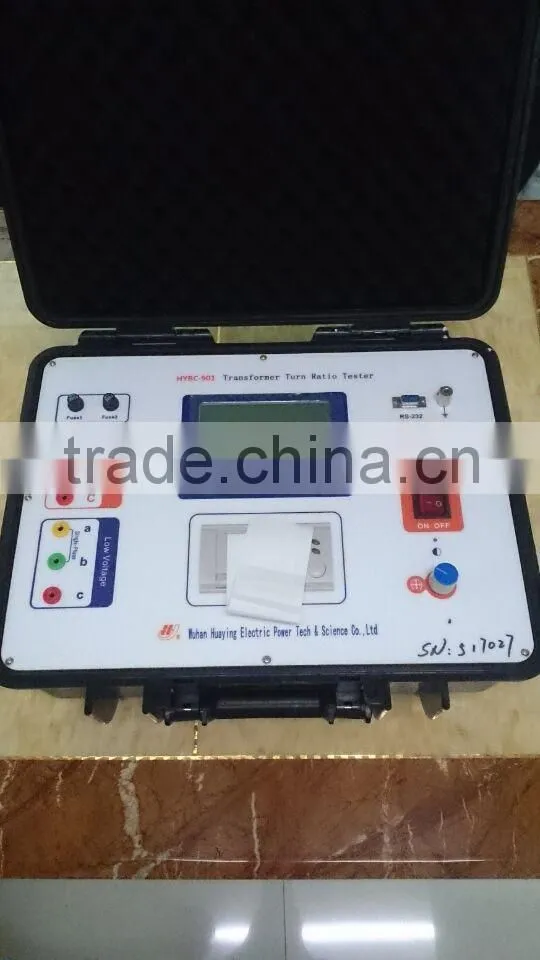

3 Phases Transformer Turns Ratio Meter

Name: 3 Phases Transformer Turns Ratio Meter
Brand: Chuangxin
SKU: 110735981
Availability: InStock

US$ 4000.00 - 4000.00 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Chuangxin

Model Number:

HYBC-901

Shenzhen Chuangxin Instruments Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Chuangxin

Model Number HYBC-901

Power Electronic

Usage Other, transformer test

Transformer Turns ratio meter It is to test voltage ratio, vector, polarity, ratio error of current transformer and voltage transformer

Transformer turns ratio meter functions:

1	The voltage ratio measurement for three or singe phase transformer
2	The group vector measurement for three phase transformer.
3	The polarity measurement for single phase transformer or CT/PT
4	Voltage ratio error calculation
5	Current transformer ratio measurement
6	Excitation current measurement in ratio testing
7	Reproduction the AC test voltage from power source to reduce the effects of bad power source
8	Save the test results in the memory internal the tester
9	Print the test results by micro printer
10	Reverse connection detect unit to prevent the high voltage injected to operator
11	Over current protection unit integrated in software and hardware
12	Upload the test results to PC by RS232 and make word report by software

Tansformer ratio meter technique index:

1	Ratio measurement range:1~10000
2	Group measurement:1~12
3	Phase measurement error:1 degree
4	Ratio measurement error:1~2000 ± 0.2%RDG 2000~10000 ± 0.5%RDG
5	Test voltage:0~80V
6	Power supply:AC220V ± 10%, 50Hz/60Hz
7	Size 400´350´200 mm3 Weight 7kg Humidity: ≤85%RH
