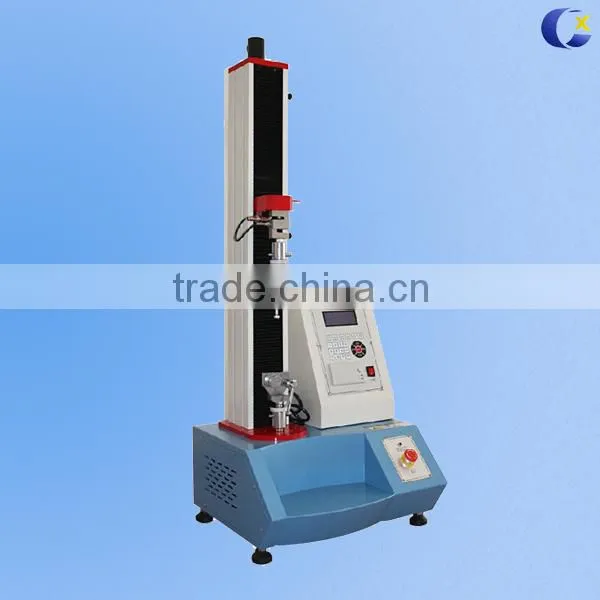

Computerized Universal Tensile Testing Machine
The Tensile Testing Machine is widely applied in all kinds of materials, such as metal, cable and etc, it’s used to test the tensile, tear, peel, compressive strength and bending of the material. It conforms to the standard of GB, ISO7500/1, JJG475-88, ASTME4, DIN5122, JISB7721/B7733, EN1002-2, BS1610, and CNS9471/9470.
Parameters:
Load Cell | 0.5 high precision power sensor |
Capacity | 5KG, 10KG, 20KG, 50KG, 100KG, or 200KG for selection |
Accuracy | Class 1 |
Force Testing Range | 0.4%~100%FS |
Load Accuracy | ±1% |
Load Resolution | 1/200000 |
Displacement Error Value | ±1% of value |
Displacement Resolution | 0.005mm |
Control System | Frequency Converter |
Drive Method | AC Frequency Conversion Motor |
Motor Function | 0.37KW |
Test Speed | 50-200mm/min |
Speed Accuracy | ±1% of Value |
Test Stroke (not include the clamp) | 600mm |
Dimension | 500x420x1500mm |
