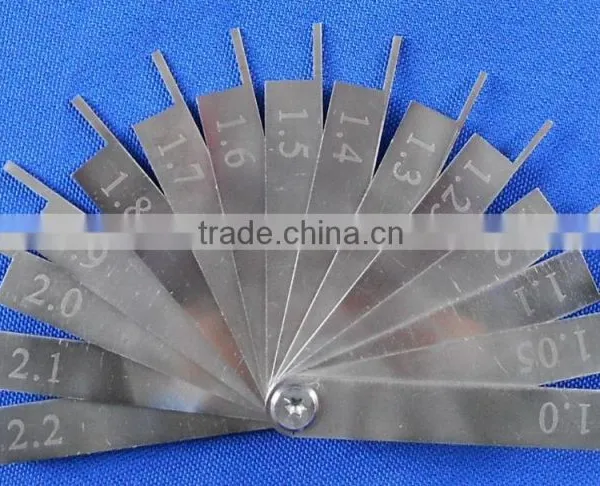

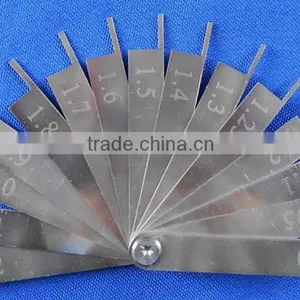

High Quality Iec60335 Creepage Distance Gauge For Tracking Index

US$ 190 - 349 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

CX-PD10

Shenzhen Chuangxin Instruments Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CX

Model Number CX-PD10

Power Other

Usage Other, distance measurement

Test Equipment Electronic Safety High Quality Iec60335 Creepage Distance Gauge For Tracking Index

Key words: metal feeler gauge, measuring & gauging tools, reepage ruler, Creepage caliper

1.Basic introduction

For gauging the creepage and clearance distances in dead state between parts under voltage in the operating conditions as well as between touchable metal pieces and parts under voltage in the operating conditions. e. g. in installation material, switchgears, plugs, socket-outlets and electric appliances
according to IEC and CEE Publications,EN Standards,VDE Specifications.
It is used to determine the shortest path between two conductive parts, or between a conductive part and the bounding surface of the equipment, measured along the surface of the insulation, with specifications made according to the requirements.
Creepage distance test card or feeler gauge is made of whole stainless steel.

2.Dimensions:

Creepage Distance Gauges for gauging the creepage and clearance distances in dead state between parts under voltage in the operating conditions as well as between touchable metal pieces and parts under voltage in the operating conditions e. g. in installation material, switchgears, plugs, socket-outlets and electric appliances
according to IEC and CEE Publications,EN Standards,VDE Specification

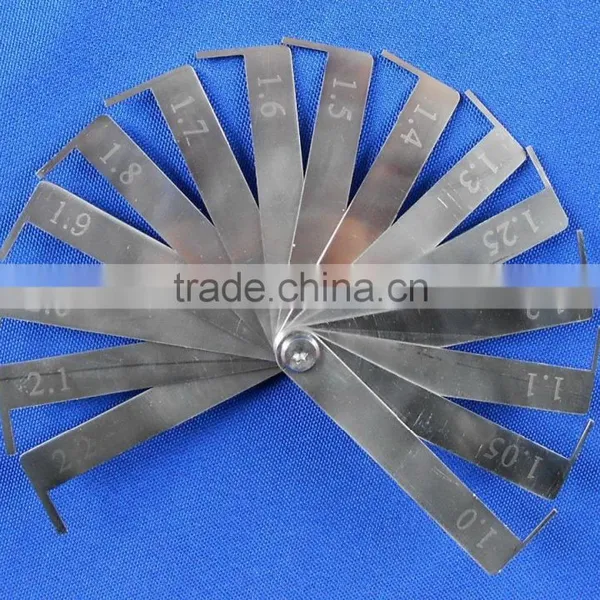

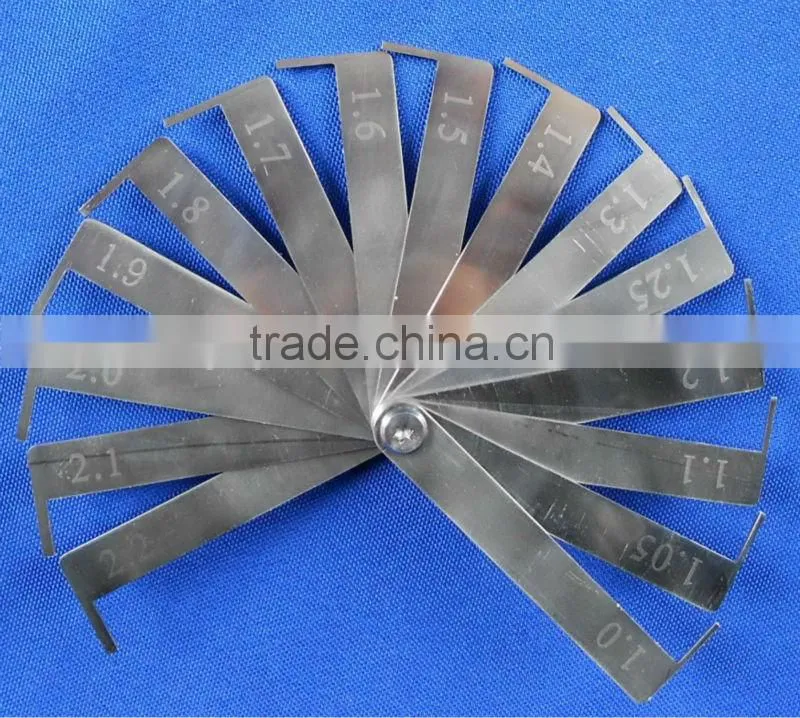

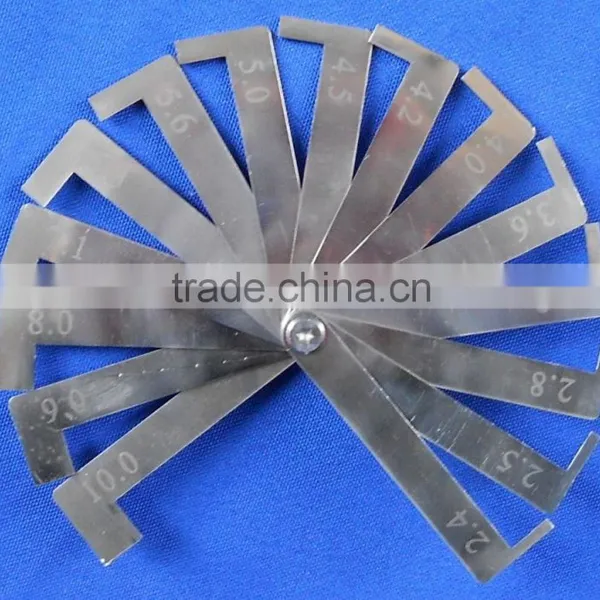

Picture of CX-PD10

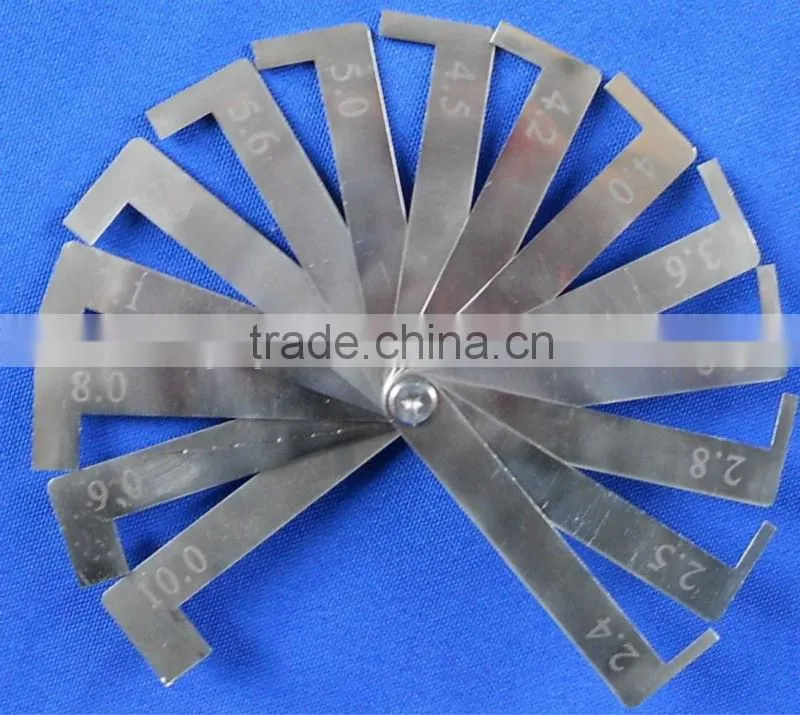

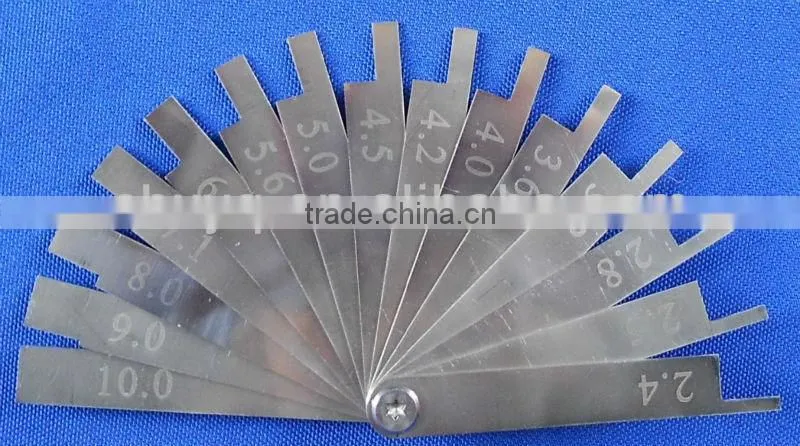

CX-PD30
