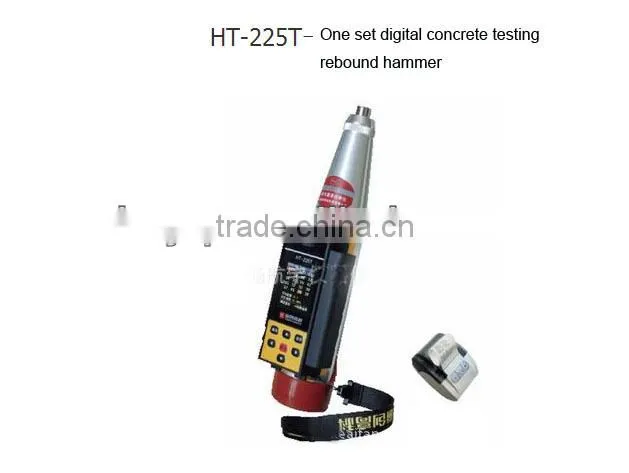

Ht-225t Digital Schmidt Concrete Test Hammer
HT-225D concrete hammer is an integrated digital concrete test hammer which combines data processor and test hammer into one unit. It is widely used for non destructive testing quality of concrete and building materials in finished structure or prefabricated blocks. From its rebound value, the compressive strength of con¬crete can be calculated out automatically. All testing data can be stored in memory and transferred to PC by USB cable or wireless by Blue tooth.
Characteristics:
1: Portable design, light to take.
2, Raster sensor and display instrument no contact, no friction, so as to prolong the service life;
3, Special color screen display, automatic record test time date;
4, &keyword$ Equipped with different curves, can set freely.
5, Angles, test face, pump, carbide and other parameters can be set in a scene;
6, Voice enroll function, noisy environment can also be with headphones listening;
7, Optional miniature printer to print test results;
8, Ultra low power design, power supply duration is more than 60 hours;
9, &keyword$ Equipped with high speed USB data transmit port, can transmit the data to the computer;
10, PC software to save data in Excel format, can be directly generated Word report format, make you late software process easy and convenient.
Technical Parameter: | |
Model |
HT-225 |
Nominal kinetic/dynamic energy |
2.207J(0.225kgf.m) |
Flip tension spring rigidity |
7.85N (0.80kgf)/cm |
Punch advance for impact hammer |
75mm |
|
Impact surface hardness value between impact hammer and rod |
HRC59-63 |
Maximum breakout friction of pointer system |
0.49-0.78N(50-80g) |
|
Average calibration of steel anvil
|
80+/-2 |
Standards |
ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993 |
Dimension |
60x280mm |
Meausring Range |
10-60Mpa |
Net weight |
1kg |
Our service:
We offer qualify superior pre-sale service to help you choose the right goods, highclass after service to ravel out your concerns,and life long technical support.
Our warranty policy:
1. For instruments (total station,theodolite,GNSS,auto level), we offer 1 year warranty,for accesories(Prism,pole,tripod ,levelling staff).we offer 6 months warranty,from the day you get the product.
2.For product within the warranty period,please send us photos to show the problem.And then we will decide to send you parts or you send the instrument back to us to repair.We will be responsible for the double-run freight and other cost.Please make sure to contact us first instead of sending the damaged parts direct to us.
3.For problem out of the warranty period or warranty liability,we will judge the probelm and quoted for you.You need to pay double-run freight and the maintenace cost.
4.For all instrument we provide life-long technical support.Remark:Improper use of the instrument and man-made damage of the instrument is not coverd in warranty liablity.Warranty only aimed at the problem caused by the product quality.
