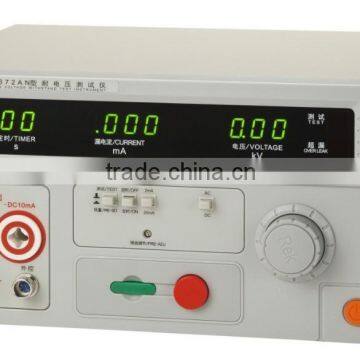

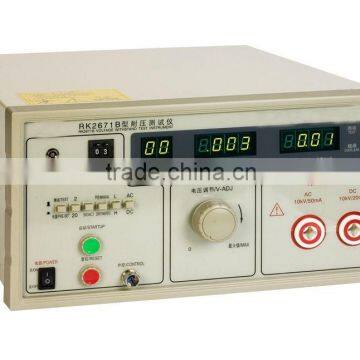

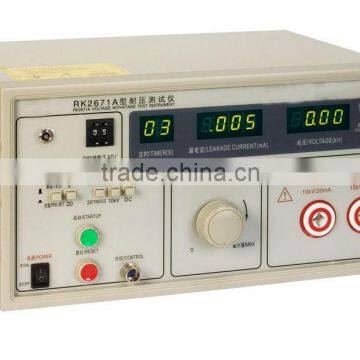

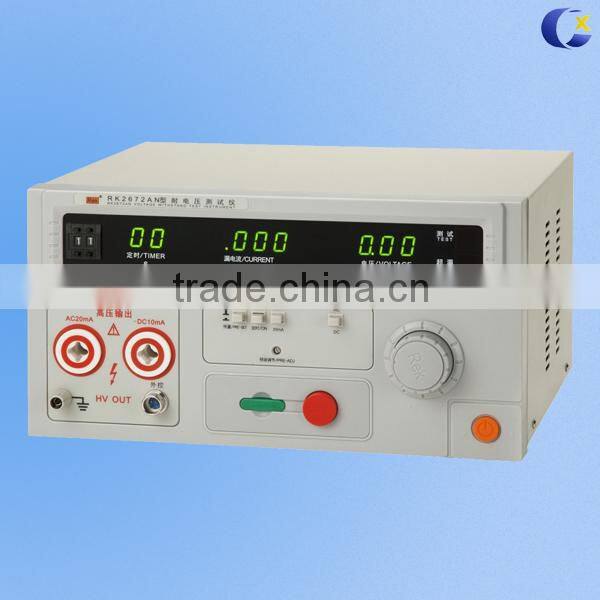

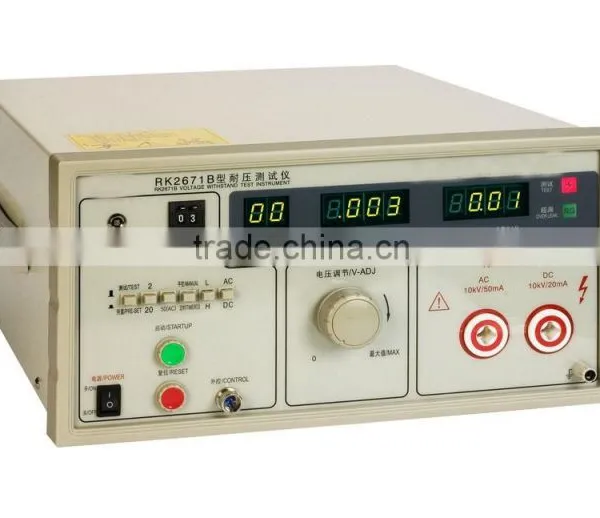

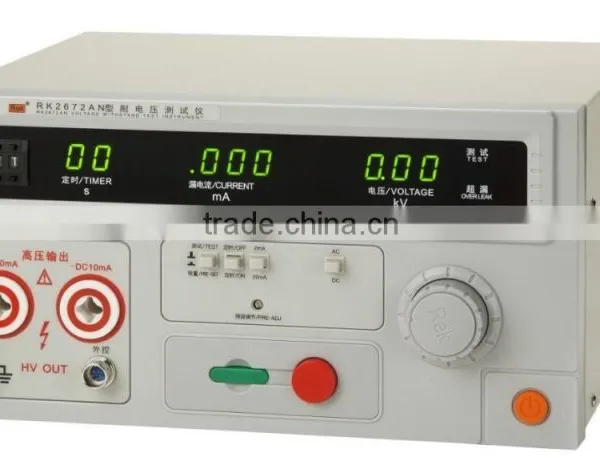

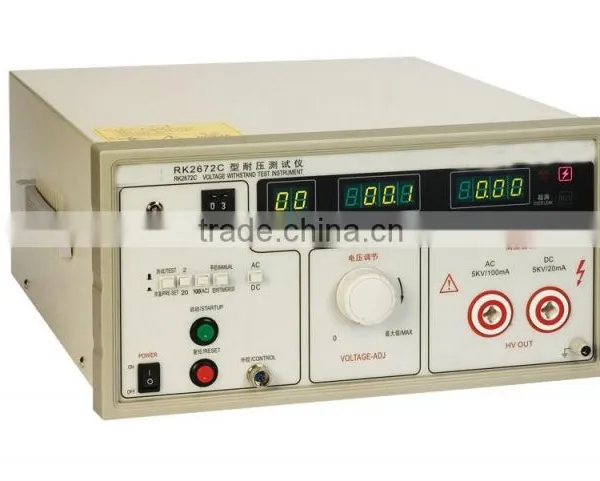

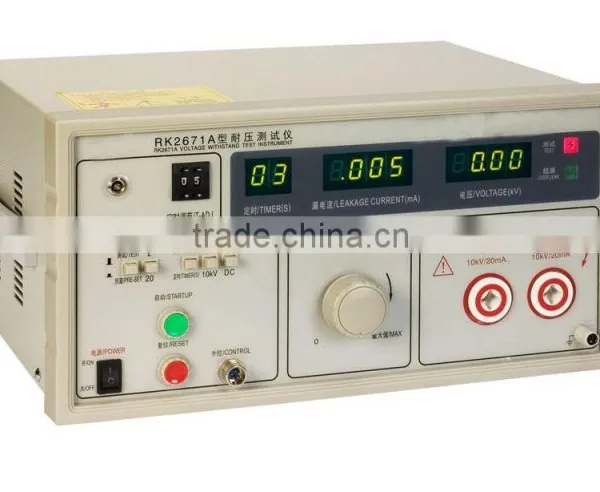

RK2672 0-5KV hipot tester withstanding voltage tester
Key words: withstand voltage tester, Voltage tester, Hi-pot tester
| Model | RK2672A/AN | RK2672B | RK2672C | RK2672D | 2672E |
| Output Voltage Range | 0~5kv(AC/DC) | 0~5kv(AC) | 0~5kv(AC/DC) | 0~5kv(AC/DC) | 0~5kv(AC) |
| Voltage Resolution | 10V | 10V | 10V | 10V | 10V |
| Voltage Accuracy | ±5% | ±5% | ±5% | ±5% | ±5% |
| Leakage current (AC) | 0-2/20mA | 0-100mA | 0-2/20/100mA | 0-2/20/200mA | 0-2/20/200mA |
| Leakage current (DC) | 0-2/10mA | 0-2/20mA | 0-2/20mA | ||
| Current Resolution |
0-2mA:1μA 2-20mA:10μA |
0~2mA:1μA 2~20mA:10μA 20~100mA:100μA |
0~2mA:1μA 2~20mA:10μA 20~200mA:100μA |
0~2mA:1μA 2~20mA:10μA 20~200mA:100μA |
|
| Current Accuracy | ±5% | ||||
| Measurement Time Setting | 0s-99s,Continuously setting and manual | ||||
| Maximum output power | 100VA | 500VA | 500VA | 1000VA | 1000VA |
| Capacitor of Transformer | 500VA | 750VA | 750VA | 1500VA | 1500VA |
| Display Form | LED Digital display | ||||
| Power Requirements | 220V±10%,50Hz±5% | ||||
| Operation Environment | 0°C~40°C,≤85%RH | ||||
| Dimensions | 320*270*180mm | 430*370*200mm | 430*370*200mm | ||
| Weight | 9.4kg | 13.2kg | 17.2kg | 32kg | 32kg |
Service we can provide:
1.High quality guarantee.
2.Shipment/Freight with professional documents.
3.Packing as your request, with photo before shipment.
4.Professional after-service from our engineers.
5.Warranty period one year.
Our advantages:
Professional technology support.
Full experience of large numbers containers loading in Chinese sea port.
Fast shipment by reputed shipping line.
Best service after shipment with emails.
Cargoes photo before and after loading into container.
Our concept:
1.Client is first. We are trying to bring maximum profit to our clients and we only share small.
2.Credibility is the most important.
3.Quality control is our life.
4.Great sense of responsibility.
We will be responsible for not only our products, our clients, our suppliers, also the society
We can also provide Test Fingers & Probes,Spring impactor,Go and IEC60061-3 Not Go Gauge,Flammability Testing equipment,Plug and Socket Gauges ,ETC
Welcome to your kindly inquiry!
