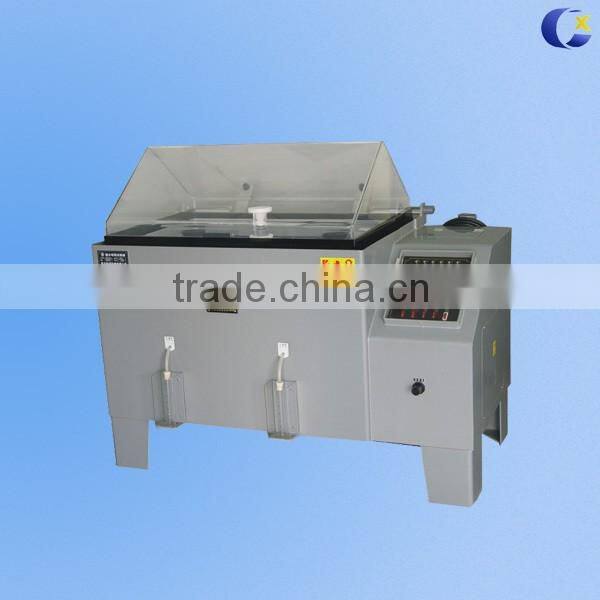

Water Salt Spray Test Fog Corrosion Tester

wooden case

Water Salt Spray Test Fog Corrosion Tester

Technical parameters:

3. Technical Features:

• Box material :   Local temperature and humidity inside and outside the box are used for A-level gray high-corrosive PVC, for salt spray, copper acetate, and other test specifications Test
• Saturation pressure barrel :   It uses the A-level German imports of gray PVC material.
• Laboratory Racks:  It uses sophisticated Class A gray PVC material designed "V" shape long, products tested by the 15 ° -30 ° angle be adjusted.
• Laboratory cover:It uses a 5mm thick transparent imported high toughness PVC board, bending method designed to cover 100 degree ridge-type transparent
• With power failure memory function of time, so after the original call time to complete the remaining time of the experimental work, with a double over-temperature protection, water shortage warning, ensure safety
• Technical basis:According to JIS, ASTM, CNS, GB standard parameter setting operation.

4. Systems:

•Heating system

It uses steam heating, heating speed, reduce the standby time, when the temperature reached, the thermostat automatically switches the state, the temperature accuracy, less power consumption

•Control system

High-precision temperature controller, Japan OML timer to control the time, the overall temperature error of ± 1°c

5.Corresponding Standard:
1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89  salt spray test
9.CNS.4158  salt spray test
10.CNS.4159 CASS  Accelerated acetic acid copper salt spray test
11.GB/T 12967.3-91 CASS  Accelerated acetic acid copper salt spray test
