Digital Lamp Cap Torque Tester

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 per Month
Port Shenzhen
Payment TermsCredit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangxi, China	Brand Name	CX
Model Number	LCX-338	Power	Electronic
Usage	Torsion Tester

Packaging Details

each in a wooden case

Product Description

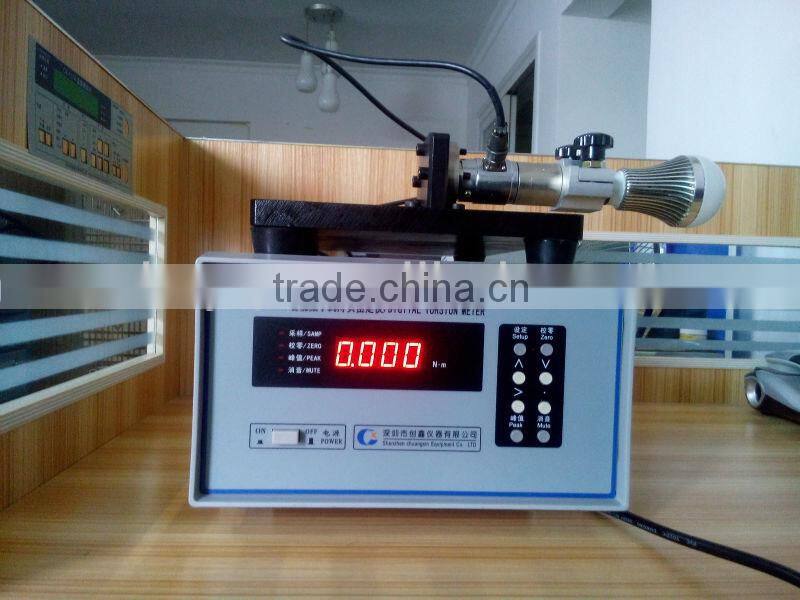

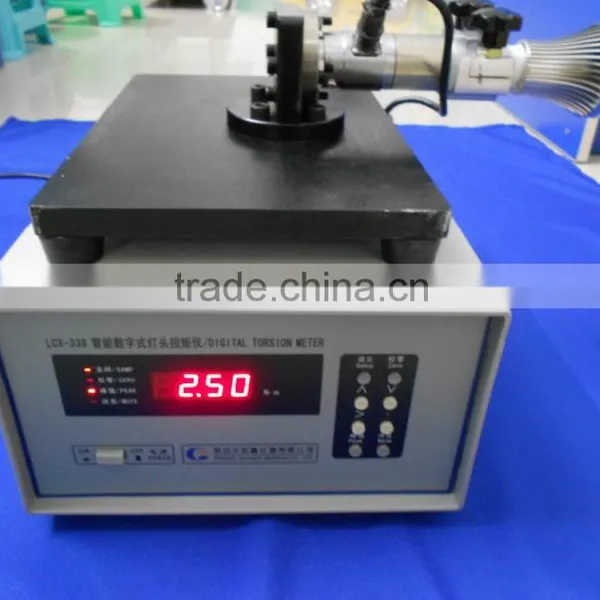

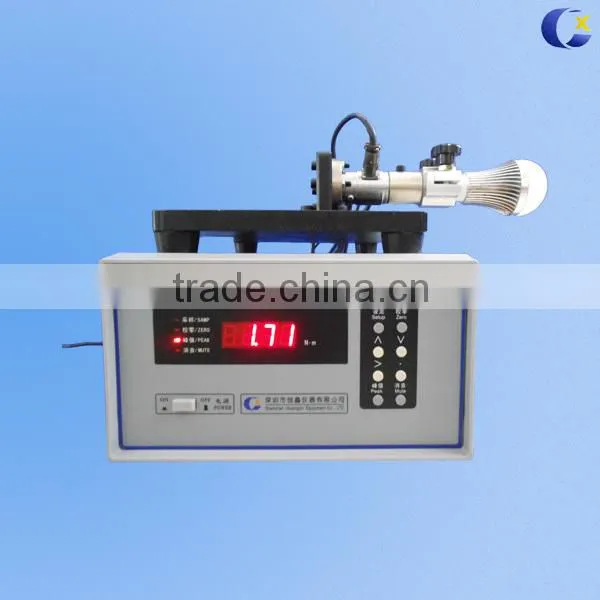

Digital Lamp Cap Torque Tester

Characteristics:

1) It can measure the clockwise and anti-clockwise torque of lamp cap. And it can preset upper limit alarm. Auto save data after system shutting down.

2) Instrument has the function of zero point calibration. The zero point is very steady. Instrument uses 4 digits of number to display. So it is of high accuracy and high stability.

3) Double watchdogs designed inside to ensure the instrument high reliability and will not shut down under complicated environment.

4) Instrument is convenient to be used because of several clamps of lamp caps such as E27/E26, B22d, E14/E12, G13/G5 and so on.

5) Conform to Chinese and international standard.

Specification:

Range	0-10N•m
Accuracy	≤1%
Repeatability	≤0.5% FS
Linearity	≤0.5% FS
Lag	≤0.5% FS
Over loading capacity	120% FS
Temperature compensation range	-10°c-60°c
Requirements for environment	Working temperature: 25±5°c
	Relative humidity: ≤65% R.H
	Power: AC 220V ± 10V, 50Hz ± 1Hz
Limitation for environment	Working temperature: 0-40°c
	Relative humidity: ≤75% R.H
	Power: AC 220V ± 10%, 50/60Hz
Store condition	Temperature: -20~50°c
	Humidity<75% R.H.
Dimension	W330mm x H110mm x 335mm
Power	15VA
