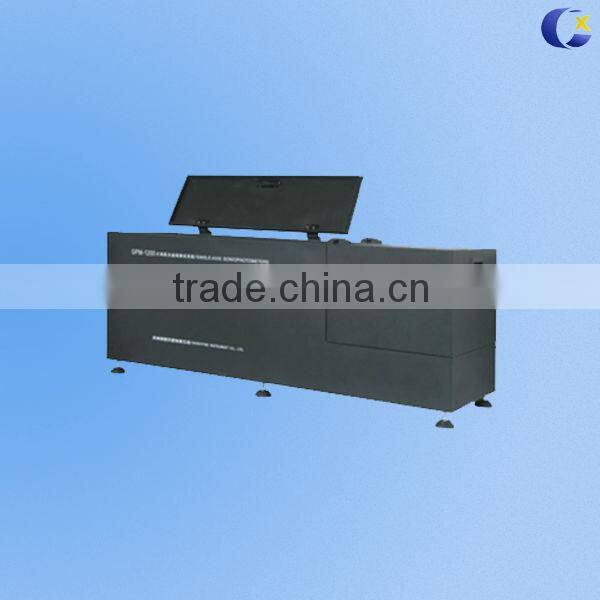

Compact Goniophotometer for measuring Luminous Intensity Distribution Curve
The compact goniophotometer of CX-1200/CX-1200A is used to measure the luminous intensity distribution curve, intensity data, spread angle and other parameters for Chip LED, LED Module, LED Bulb, LED spotlight and CFL Lamp.
Option Function: The CX-1200/CX-1200A can work with a Digital Power Meter (UI2010 Harmonic Analyzer or UI2012 DC & AC Power Meter) and CX-500VA AC Power Source.
Specification:
• Meets the requirements of IEC, CIE and LM-79 standards
• Measures beam angle automatically: staple half intensity angle as well as 1/4 intensity angle, 3/4 intensity angle and 1/10 intensity angle which meets the special requirements.
• Measured data is matched with international standard form (IES) and can be applied for lighting design by other lighting design software such as DiaLux
• CX-1200/CX-1200A has included a dark room, measures the maximum size of lamps: 180mm
• Test range of luminosity: 0.1~30,000lx. Test accuracy of detector: Class 1
• The distance between the tested lamp and detector is 316mm/1000mm
• Angle interval: Horizontal angle: 1°/5°/10°/15°/22.5°/30°/45°/90°, Vertical angle: 0.5°/2°/1.5°
• Test accuracy of angle: ±0.2°. Test range of angle:
| CX-1200 | Horizontal angle: -0°~360° (Manual) |
| Vertical angle: -90°~+90°(Automatic) | |
| CX-1200A | Horizontal angle: -0°~360° (Automatic) |
| Vertical angle: -90°~+90°(Automatic) |
