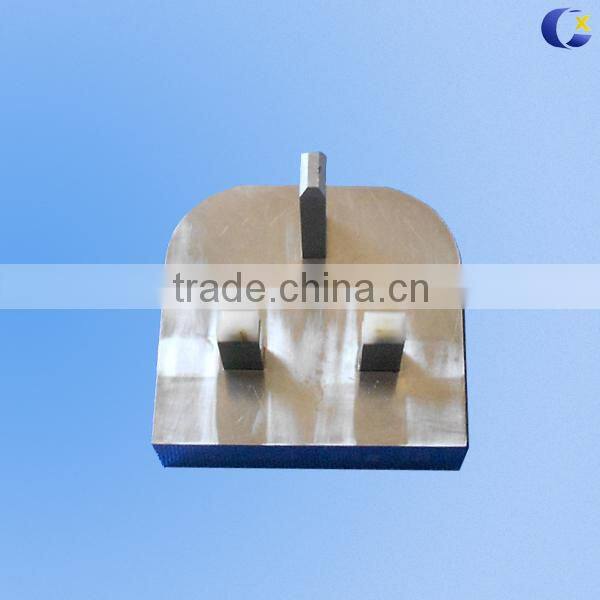

Bs Plug&lamp socket Gauge Testing Gauge Bs1363 British Standard
Application:
BS1363-3 Plug and Socket Gauges
1.Application:
Chuang Xin offers a wide range of gauge to meet the most common standards including those from IEC,EN,UL,GB,DIN,VDE and other similar international standards.Such standards require the checking of size & definition etc,these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 60HRC and a roughness according to standard require.
British standards test gauge is strictly designed and manufactured according to the relevant standard requirements of BS1363-2.
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to BS1363-2 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
2.Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Surface corrosion and abrasion resistance can resist normal contact corrosion and not embroidered patch (the operator hand may exist in the sweat, the corrosion effect equivalent to NACL salt solution or NH4CL salt solution corrosion);
Material hardness is more than 60HRC;
Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable

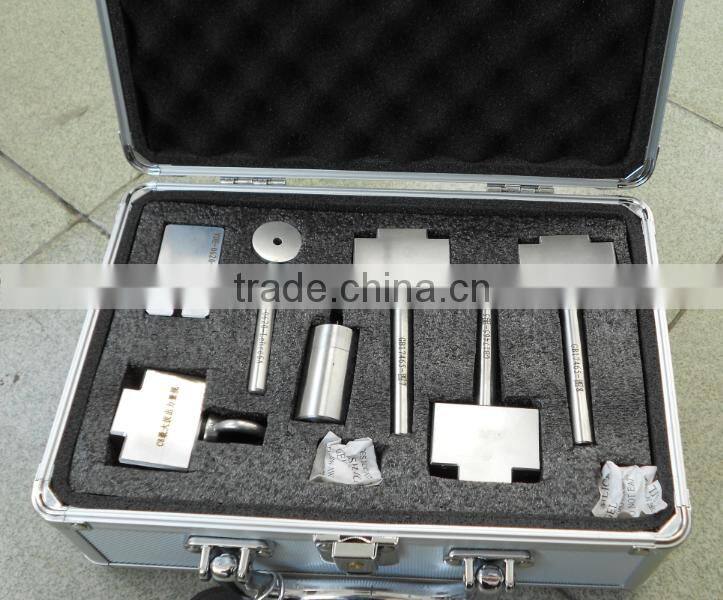

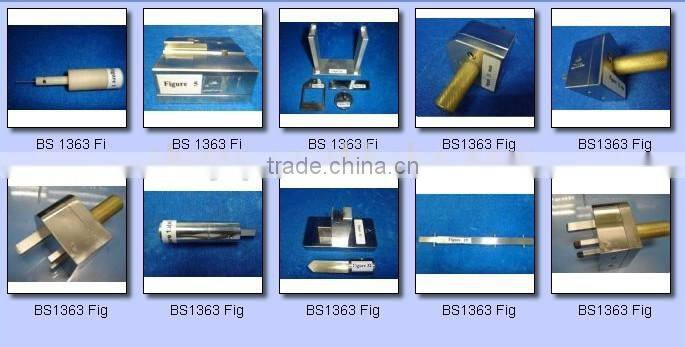

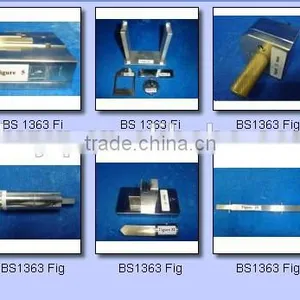

Plug Pin Measuring & Gauging Tools BS1363 Gauges
| Name | Description | QTY.(piece) |
| BS1363-2-Fig1 | Test PIN | 1 |

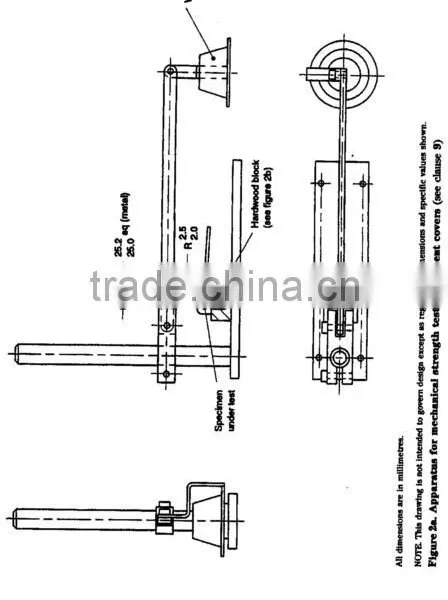

| BS1363-2-Fig2a.2b | Elastic shell mechanical strength test device | 1 |
| BS1363-2-Fig 5 | plug gauges | 1 |

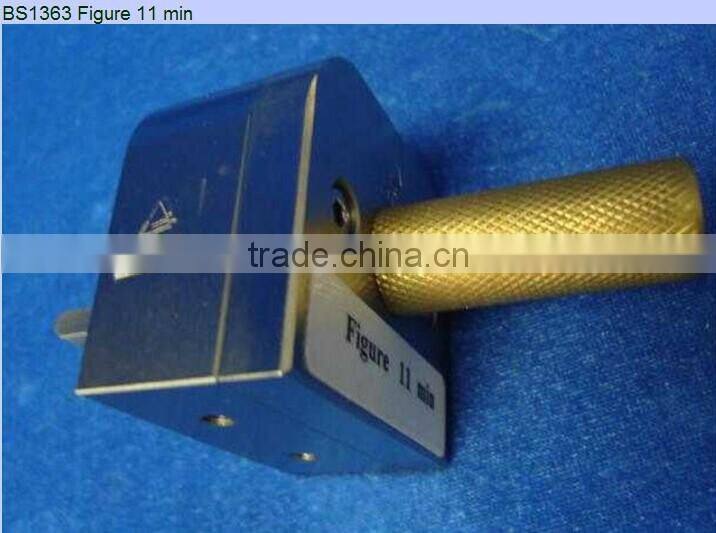

| BS1363-2-Fig11 | plug gauges | 2 |
| BS1363-2-Fig12 | Contact test gauge | 1 |
| BS1363-2-Fig14 | Non contact test | 1 |
| BS1363-2-Fig15 | Insert transverse stress gauge | 1 |

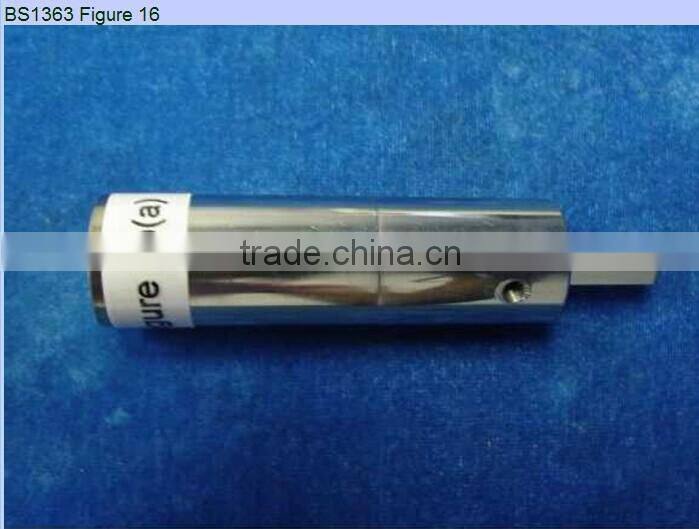

| BS1363-2-Fig16 | Insert pull-out force gauge | 2 |
| BS1363-2-Fig17a/b | Temperature rise test device and the simulationpanel | 1 |
| BS1363-2-Fig19 | Stainless steel solid fuse | 1 |
| BS1363-2-Fig23 | Pressure test device | 1 |
| BS1363-2-Fig29 | correction clamp | 1 |
| BS1363-2-Fig30 | gauges | 1 |
| Total quantity | 13 | |
We can also provide other probes for household appliance testing, such as Jointed Finger Test Probe, Cylindrical Pin Test Probe, Short Pin Test Probe, Children Test Finger Probe 18, Children Test Finger probe 19, 2.5mm Rod Test probe and so on.
Welcome your kind enquiries!
