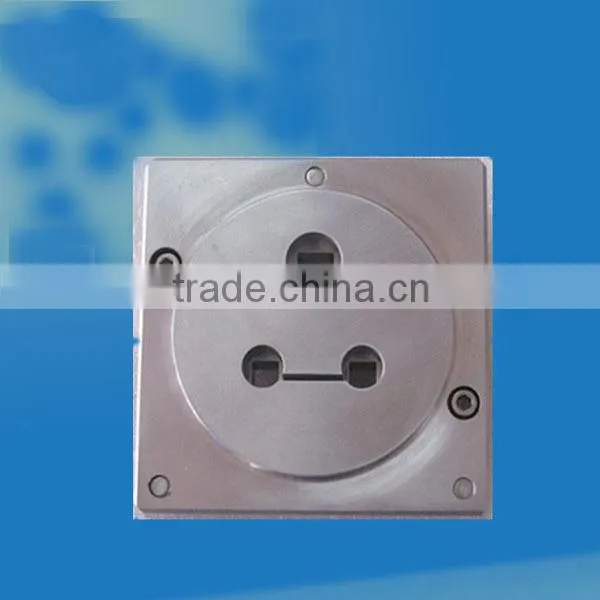

AS/NZS 3112 Australian plug and socket gauge plug adaptor
1.Application:
Autostrong offers a wide range of gauge to meet the most common standards including those from IEC,EN,UL,GBDIN,VDE and other similar international standards.Such standards require the checking of size & definition etc,these gauges are constructed from senior stainless steel and appropriate steel with a hardness of at least 60HRC and a roughness according to standard require.
Australia plug and socket gauge is strictly designed and manufactured according to the relevant standard requirements of AS/NZS 3112 figure A,B,C,D,E,F,G size, amount in 9pcs.
This plug and socket test gauge is mainly used to test and inspect whether the structure and size of plugs and sockets conform to AS/NZS 3112 standards. And the mainly application industries is electronics, electrical appliances, plugs and sockets and other similar areas.
2.Features:
Gauge dimensions, tolerances, material, hardness, surface roughness conform to the standards requirements;
Surface corrosion and abrasion resistance can resist normal contact corrosion and not embroidered patch (the operator hand may exist in the sweat, the corrosion effect equivalent to NACL salt solution or NH4CL salt solution corrosion);
Material hardness is more than 60HRC;Material thermal expansion coefficient is small,dimensions and tolerances is stable and reliable
3.Quantity:
| Name | Description | QTY. |
| AS/NZS3112 figure3.1/10A/15A | Depth of No-contact test gauge | 1 |
| AS/NZS3112 figure3.6 Max 10A | Device for checking the resistance to lateral strain (Three Pin Gauge) |
1 |
| AS/NZS3112 figure3.7 Max 10A | Device for checking the resistance to lateral strain (Two Pin Gauge) | 1 |
| AS/NZS3112 figure A1 | Gauge for three –Pin Flat-Pin Plugs | 1 |
| AS/NZS3112 figure B1 | Gauge for Two-Pin Flat-Pin Flat- Pin Plugs with Parallel Pins | 1 |

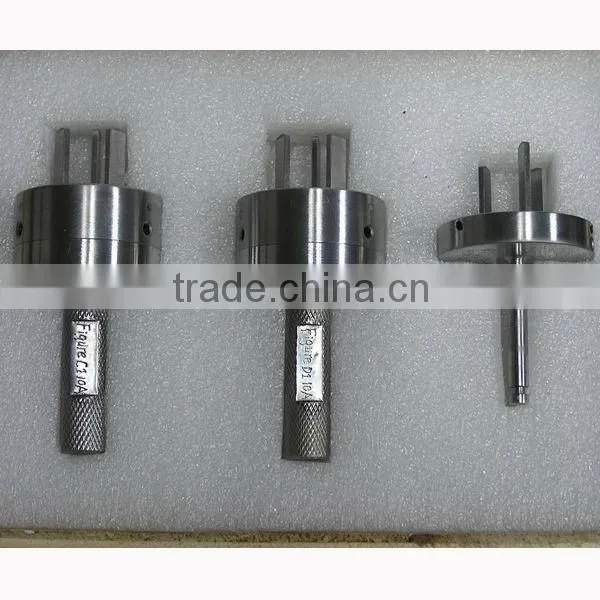

| AS/NZS3112 figure C1 | Three-pin test plug with flat pins for full insertion test and the finger test during normal insertion test. | 1 |
| AS/NZS3112 figure D1 | Three-pin test plug with flat pins for abnormal insertion test . | 1 |
| AS/NZS3112 figure E1 | Plugs and socket-outlets for use in extra-low voltage circuits |
1 |
| AS/NZS3112 figure G1 | Three-pin test plug with flat and round pins for the full-insertion test and test finger test during normal insertion test | 1 |
| Total quantity | 9 | |
