IEC60529 IPX1 IPX2 Fixed Drip Box Waterproof Testing Machine With Clean Water Filtration Unit
- 300 Set / Sets per Month
- Shenzhen Hongkong
- Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Chuangxin | Model Number: | CX-IPX12 |
Power: | Electronic | Usage: | Other, electric safety test |
Packaging Details
Wooden case
Product Description
IEC60529 IPX5 IPX6 Handheld Water Jest Nozzles Dia 6.3mm 12.5mm

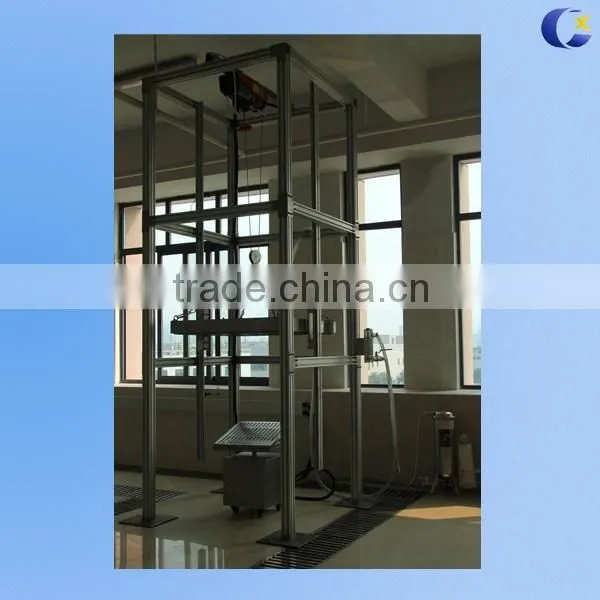

This test device is to verify Protection against Vertically Falling Water Drops. It is designed and manufactured in accordance with the standard requirement of IEC60529 clause IPX1 and IPX2. The rise and fall of the drip box is controlled by the motor. It is equipped with the rotatable objective table whose rotating speed is 1r/min for IPX1 test;It is also equipped with 15°bevel for supporting sample for the IPX2 test. What’s more, this device is with the clean water filtration unit which can prevent pinhole from jamming.
Technical parameters:
No. | Item | Parameter |
1 | Power supply | Single phase AC220V,50Hz |
2 | Water supply | Water flow rate>10L/min±5% clean water without inclusion. This device is equipped with clean water filtration unit |
3 | Water tank size | L*W*H=1100×800×350mm |
4 | Drop test area | L*W*H=1000×600mm,customizable |
5 | Drop height | 200mm~1650mm adjustable |
6 | Dripping speed (water flow) | 1+0.05 0mm/min or 3+0.05 0mm/min (Switchable) |
7 | Water hole | 0.4mm |
8 | Distance between holes | 20mm |
9 | Diameter of rotary table | 600mm |
10 | Rotating speed of the rotary table | 1r/min |
11 | Load bearing of the rotary table | ≤150kg electrical equipment (without rotary column) |
12 | 15°bevel for supporting sample | 15°bevel |
13 | Site requirements | Dedicated IP waterproof test room,The ground should be flat with illumination 10A waterproof leakage switch(or socket)used for equipment |
14 | The area | L*W*H=1500mm×1500mm×2650mm,the size can be customized by the customers’ need. |
