Home > Instruments & Meters > Test Instrument > Test Machine > IEC60529 Handheld Ipx5/6 Water Jet Spray Nozzle With High Quality

IEC60529 Handheld Ipx5/6 Water Jet Spray Nozzle With High Quality

IEC60529 Handheld Ipx5/6 Water Jet Spray Nozzle With High Quality thumbnail-3

IEC60529 Handheld Ipx5/6 Water Jet Spray Nozzle With High Quality photo-1

IEC60529 Handheld Ipx5/6 Water Jet Spray Nozzle With High Quality photo-2

IEC60529 Handheld Ipx5/6 Water Jet Spray Nozzle With High Quality photo-3

US$ 300 - 550 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

CX-IPX5/6

Contact Supplier Request Quote Chat Now

Shenzhen Chuangxin Instruments Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name CX

Model Number CX-IPX5/6

Power Hydraulic

Usage Other, Waterproof test

IEC60529 Handheld Ipx5/6 Water Jet Spray Nozzle With High Quality

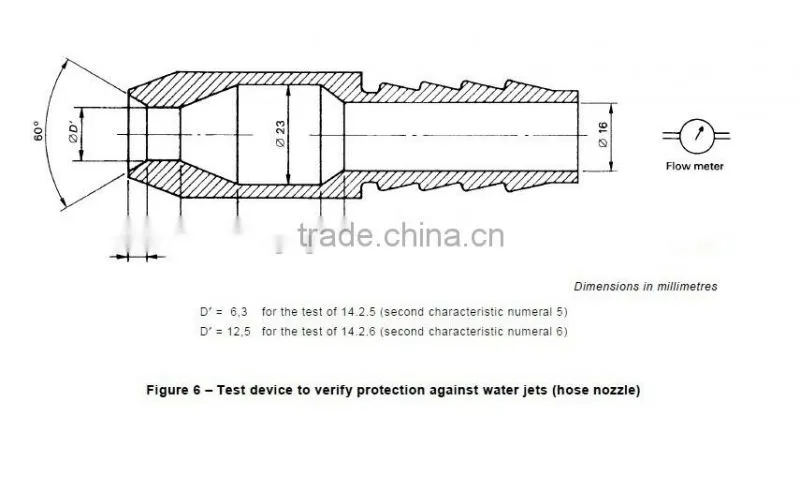

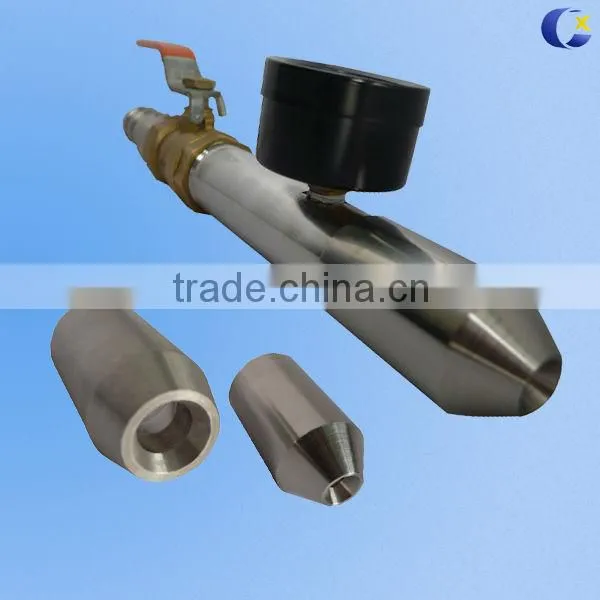

The IPX5/6 Spray Nozzle consists of a jet handle that is equipped with a pressure gauge and an easy-to-adjust flow valve. The interchangeable nozzles assemble easily to the jet handle. The nozzles are made from stainless steel.

Technical Parameters:

Item	IPX5	IPX6
Water supply	Water flow rate > 12.5L/min±5% clean water witho ut inclusion. It can be achieved by the stainless steel water tank and pressurized equipment.	Water flow rate > 100L/min±5% clean water witho ut inclusion. It can be achieved by the stainless steel water tank and pressurized equipment.
The nozzle diameter	6.3 mm	12.5 mm
Water flow	12.5±0.625L/min, Flow meter is adjustable.	100±0.625L/min, Flow meter is adjustable.
Testing time	Not less than 1min/m2 (not less than 3 mins)
Environment requirements	Dedicated IP waterproof test room whose width is more than 3m, With good function of inflow and drainage. Wall installation.
The distance from jet nozzle to enclosure	2.5~3m
Pressure Gauge	0 - 2.5 bar ( 0 - 0.25 MPa )
Reference standards	IEC60529,IEC60598-1,IEC60335-1,IEC60745-1
Nozzle Material	Stainless Steel
Include	Pressure gauge, Stainless steel nozzle IPX5 and IPX6, Valve for water flow regulation and shut off, Hose connector.
