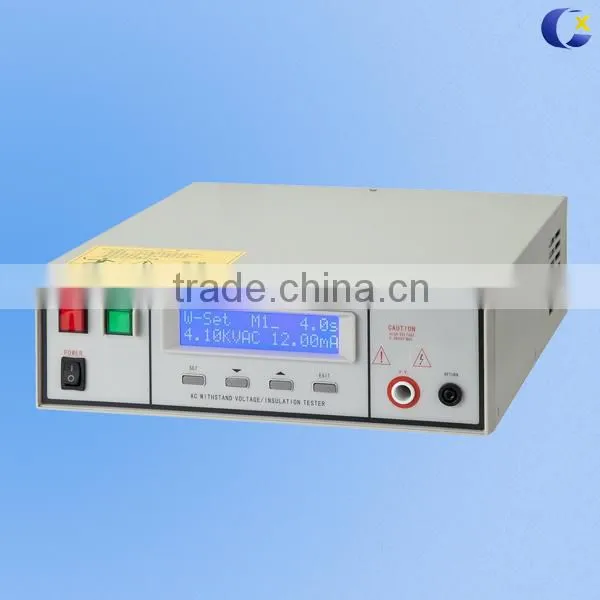

Withstanding Voltage Tester With Digital Display
Feature:
Small volume, light weight
Easy to operate, has keyboard lock function
Provide 5 groups memory setting, each group has four kinds of work mode
LCD display
Voltage gradient rise by time, real-time analysis and look for breakdown point
Current threshold settings and intelligent alarm
Arc detection function (grade 1 to grade 9)
Provide remote PLC control interface
Specifications
Parameter |
Range |
Resolution
|
Accuracy |
AC withstand voltage characters | |||
Output voltage |
0 – 5.00(Kvac)/ 12(mA) |
0.01 |
±(2% of setting +5V) |
Output frequency waveform |
50 or 60 Hz, ±100 ppm, Sine wave, distortion(THD)< 2% |
||
current upper and lower limits setting |
0.10 – 12.009(mA) |
0.01 |
±(2% of setting +2 counts) |
Rising time (s) |
0.1 – 999.9 (s) |
0.1 |
±(0.1% +0.05 counts ) |
Testing time(s) |
0, 0.2 – 999.9 (s) (0 = 0 = continuous) |
0.1 |
±(0.1% +0.05 counts) |
Arc detection |
9grades (0 mean close,1mean The most sensitive) |
||
Insulation resistance characters | |||
Output voltage |
0.10 – 1.00(KVdc) |
0.01 |
±(2% of setting +5V) |
insulation resistance upper limits |
0 – 2000 (MΩ) (0=close) |
1 |
±(2% of setting+2c.) ≥500vdc ±(5% of setting+2c.) < 500vdc |
insulation resistance lower limits |
1 – 2000 (MΩ) |
1 |
|
Testing time(s) |
0, 0.5 – 999.9 (s) (0 = 0 = continuous)) |
0.1 |
±(0.1% +0.05 counts ) |
Others | |||
Memory |
5groups memory, 4 kinds of testing mode: W,I,W – I,I -- W |
||
Remote control and PLC interface |
Provide Pass, Fail, Processing remote monitoring signals and the TEST, STOP contact |
||
Protection |
Overload or short circuit ,automatically cut off the output, light and buzzer alarm |
||
Dimensions |
280mm(W) × 89mm(H) × 320mm(D) / 10Kg |
||
We can also provide Test Fingers & Probes,Spring impactor,Go and IEC60061-3 Not Go Gauge,Flammability Testing equipment,Plug and Socket Gauges, Electric safety tester, ETC
welcome to your kindly inquiry!
