Mini Relay 12v

Mini Relay 12v thumbnail-1
Mini Relay 12v photo-1
US$ 0.29 - 0.29 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YONGNENG
Model Number:
YT106-S-212D
Contact Supplier Request Quote Chat Now
Dongguan Yongneng Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Dongguan Guangzhou Hongkong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name YONGNENG
Model Number YT106-S-212D
Theory Electromagnetic Relay
Usage Telecommunication
Size Miniature
Protect Feature Sealed
Contact Load Other, High Power, 1A/125VAC, 2A/30VDC
Product image

Product picture for you to assure Mini Relay 12v can be used on your instruments or appliances.

Mini Relay 12vMini Relay 12v

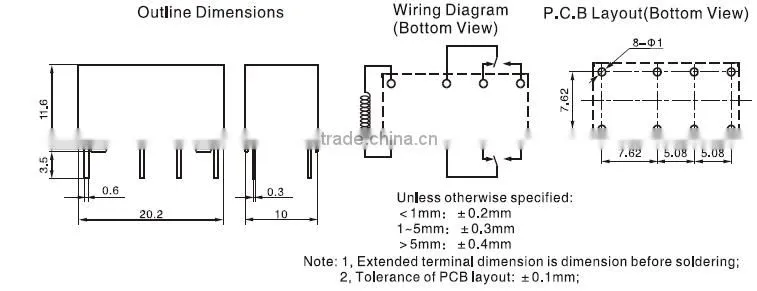

Size and Mounting

 Mini Relay 12v Housing Size and Mounting

Mini Relay 12v



Usages

Mini Relay 12V YT106



Communication equipment, computer accessories,office equipment, medical equipment

Parameters

Parameters for Mini Relay 12V

 Contact Data
Model No. YT106-S-212D
Contact Arrangement 2c
Contact Resistance 50 mΩ Maximum.
Contact Material Silver Alloy
Resistive Load 1A/125VAC      2A/30VDC
Maximum Switching Current 2A
Maximum Switching Voltage 125VAC / 30VDC
Maximum Switching Power 125VA / 60W
Mechanical Endurance 1x107ops
Electrical Endurance 1x105ops

Coil Data
Nominal Coil Voltage (VDC) 3v,5v, 6v, 9v,12v,15v,24v, 48v
Nominal Operating Power 0.15w, 0.2w, 0.36w, 0.58w

Characteristics
Operate Time 6ms Maximum.
Release Time 4ms Maximum.
Insulation Resistance 1000MΩ Maximum.(500VDC)
Dielectirc Strength between open contacts: 750VAC, 50/60Hz 1Min.
between coil&contacts: 1000VAC, 50/60Hz 1Min.
Vibration Resistance Destructive: 10-55HZ, Double amplitude of 1.5mm
Functional: 10-55HZ, Double amplitude of 1.5mm
Shock Resistance Functional: 10G Min.
Destructive: 50G Min.
Ambient Temperature  -30C - +70C (Not Condensation)
Weight Approx. 4.9g

YT106 housing size: 20.2x10.0x11.6mm
High Sensitivity: 150mW coil power
Plastic sealed type

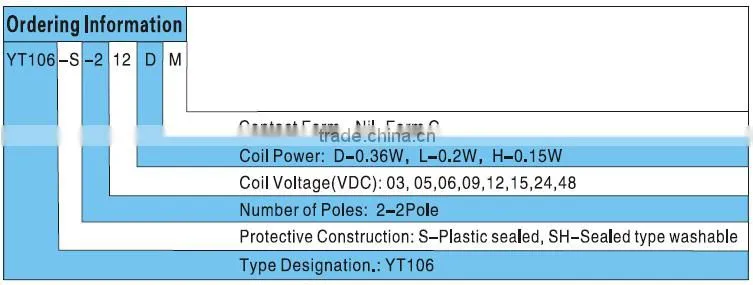

Order information

Mini Relay 5v Code Principle

Mini Relay 12v

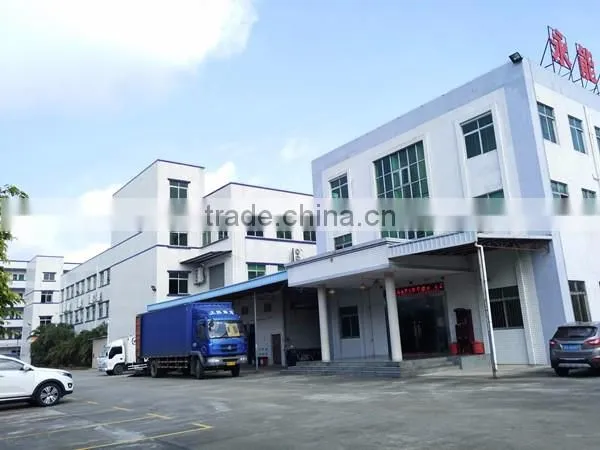

Factory

Mini Relay 12vMini Relay 12v
