Home > Electrical & Electronics > Relay & Contactor > Relay > Home Appliance PCB Power Low Relay 250VAC HF32F 5.5g 18.4X10.2X15.5 mm

Home Appliance PCB Power Low Relay 250VAC HF32F 5.5g 18.4X10.2X15.5 mm

Name: Home Appliance PCB Power Low Relay 250VAC HF32F 5.5g 18.4X10.2X15.5 mm
Brand: YONGNENG
SKU: 110716397
Availability: InStock

Home Appliance PCB Power Low Relay 250VAC HF32F 5.5g 18.4X10.2X15.5 mm thumbnail-1

Home Appliance PCB Power Low Relay 250VAC HF32F 5.5g 18.4X10.2X15.5 mm photo-1

US$ 0.25 - 0.4 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

YONGNENG

Model Number:

YX201

Contact Supplier Request Quote Chat Now

Dongguan Yongneng Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Dongguan Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name YONGNENG

Model Number YX201

Theory Electromagnetic Relay

Usage PCB

Size Miniature

Protect Feature Sealed

Contact Load Low Power

Home Appliance PCB Power Low Relay 250VAC HF32F 5.5g 18.4X10.2X15.5 mm

Description:

UL&TUV certificated

Rohs and Reach Compliance

Dielectronic strength : 6KV

Plastic Sealed Type Available

Small size : 18.4X10.2X15.5 mm

High Sensitivity : 200mW coil power

Applications:

Home Appliance

Vending machine

Air Conditioner

Electric heater

Sepecifications :

PCB Power Relay

Home Appliance Relay

Electromagnetic Relay

General Purpose Power Relay

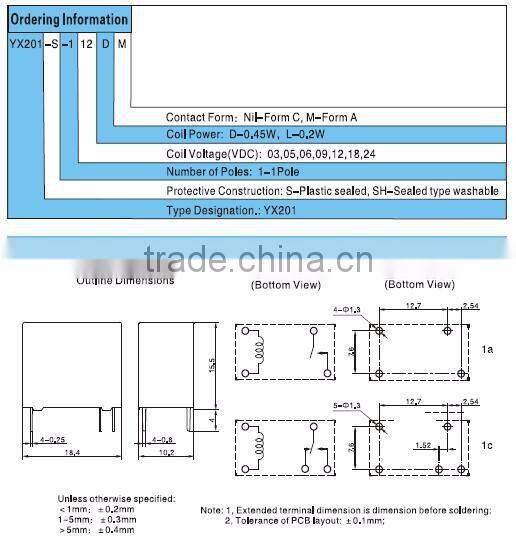

Model	YX201
Contact Form	1c,1a ,1b
Contact Material	Silver Alloy
Rated Load	3A/5A/10A 250VAC
Max.Switching Current	10 A
Max. switching voltage	277VAC
Max. switching capacity	2500VA

CHARACTERISTICS DATA

Insulation Resistance	1000MΩMin at 500VDC
Dielectric Strength Between Open Contacts	1000VAC(50/60Hz for one minute)
Between Contacts and coil	4000VAC(50/60Hz for one minute)
Operate Time	10 ms
Release Time	5 ms
Temperature Range	-40℃to+105℃
Shock Resistance	Operating Extremes: 10G
Shock Resistance	Damage Limits: 100G
Vibration Resistance	10-55Hz, 1.5mm
Weigh	Approx 5.5 g
Safety Standard	TUV,UL,Rosh and Reach Compliance
