Help CenterAirconditioner Relay
US$ 0.15 - 0.7
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
YONGNENG
Model Number:
YX201-S-112D
Payment & Shipping
Payment Methods:
Port of Shipment:
Gungzhou Shenzhen Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
YONGNENG
Model Number
YX201-S-112D
Theory
Electromagnetic Relay
Usage
General Purpose
Size
Miniature
Protect Feature
Sealed
Contact Load
High Power
Detailed Images
Detaild Images Can Help You Make Sure Airconditioner Relay 12V Can Be Applied to Your Appliance
Other Usage
Other Usage for Airconditioner Relay 12V
- household appliances
- office equipment
- door control system
Characteristics
Characteristics for Airconditioner Relay 12V
| Operate Time | 10ms Max. |
| Release Time | 5ms Max. |
| Insulation Resistance | 1000MΩ Max.(500VDC) |
| Dielectirc Strength | between open contacts: 1000VAC, 50/60Hz 1Min. |
| between coil&contacts: 4000VAC, 50/60Hz 1Min. | |
| Vibration Resistance | Destructive: 10-55HZ, Double amplitude of 1.5mm |
| Functional: 10-55HZ, Double amplitude of 1.5mm | |
| Shock Resistance | Functional: 10G Min. |
| Destructive: 100G Min. | |
| Ambient Temperature | -40C-105C (Not Condensing) |
| Airconditioner Relay Weight | Approx.5.5g |
Outline Dimensions
Outline Dimensions for Airconditioner Relay 12V

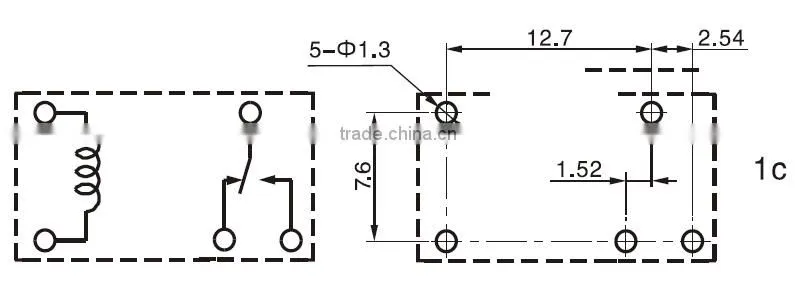

Wiring and Mounting
Wiring Diagram and PCB layout (bottom view) for Airconditioner Relay
Coil Data
Coil Data for Airconditioner Relay 12V

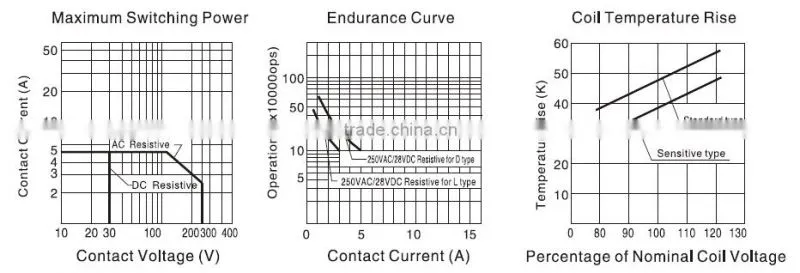

Curves
Characteristics Curves for Airconditioner Relay 12V

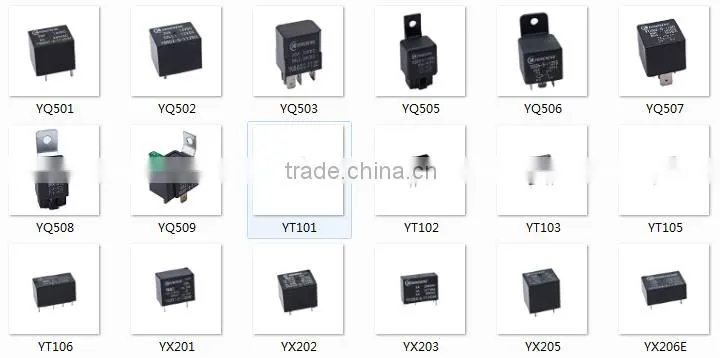

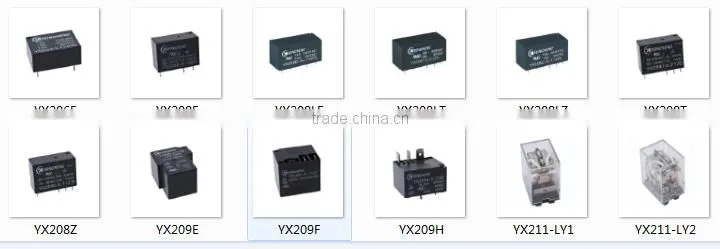

Other Products
Click this picture or this sentence to get more products information
