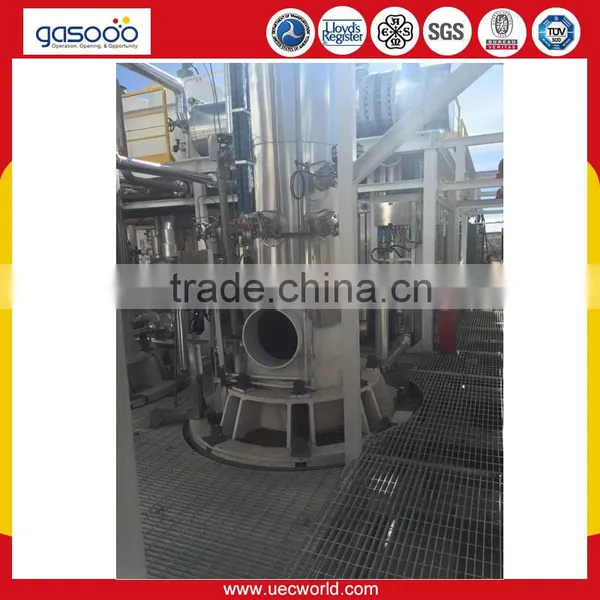

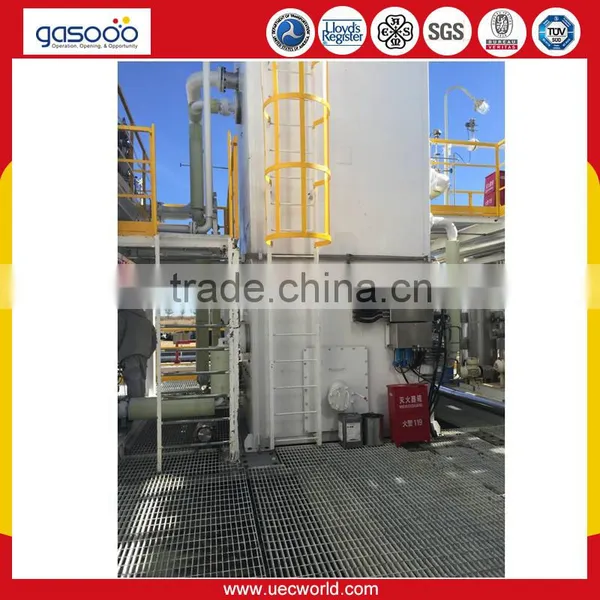

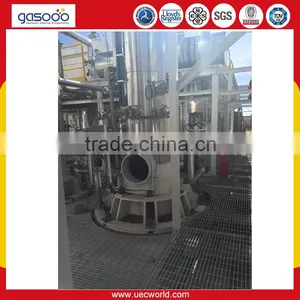

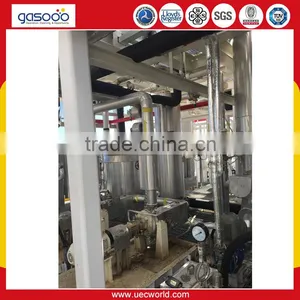

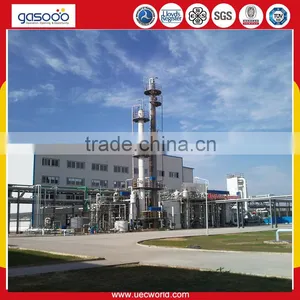

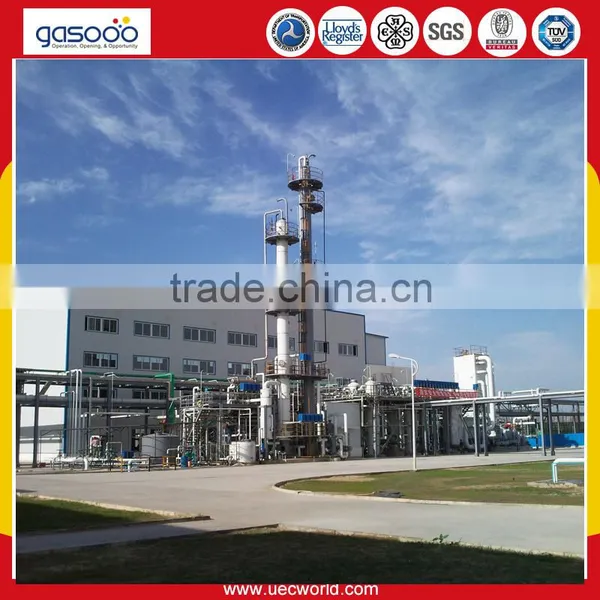

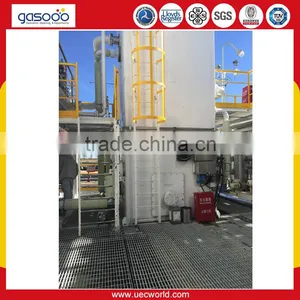

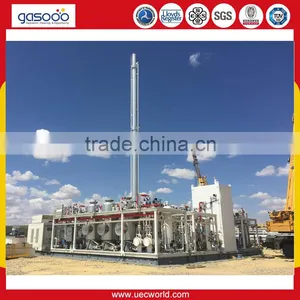

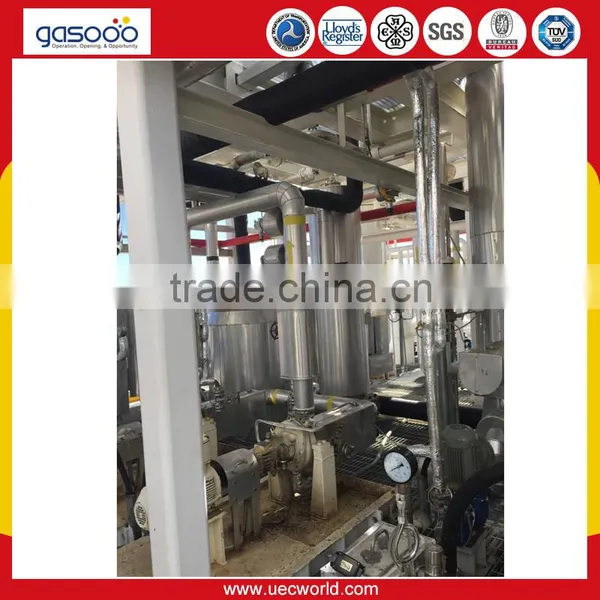

50000Nm3/d Natural Gas Liquefaction Plant

Name: 50000Nm3/d Natural Gas Liquefaction Plant
Brand: GASOOO
SKU: 110714413

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

China

Brand Name:

GASOOO

Beijing Uec Corporation

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin China

Brand Name GASOOO

Usage Other, LNG production

50000Nm³/d Natural Gas Liquefaction Plant

Data Sheet

Main Technical Performance

1	Design Capacity
1.1	NG Incoming Capacity	50000Nm³/day (43T/day) (Nm³ is defined at the condition of 1.01325Bar and 15℃)
1.2	NG Incoming Pressure	0.5MPa
1.3	NG Incoming Temperature	15℃
1.4	Operation Flexibility	50~100%
1.5	Annually Operation Hours	8000 hours
1.6	Design Working Life	20 years
2	LNG Specifications
2.1	LNG Output	36.88 T/day
2.2	LNG Storage Temperature	-162℃
2.3	LNG Storage Pressure	300KPa
2.4	Main mole Composition	C1:88.3862% C2:6.4809% C3:2.391% C4:0.9769% C5:0.3543% C6+:0.11422% N2:1.29637%
2.5	LNG Heat value	HHV: 53.1MJ/kg LHV: 48.35MJ/kg
3	NGL Specifications
3.1	NGL Output	2.422t/d;
3.2	NGL Temperature	37℃
3.3	NGL Storage Pressure	1.7MPa
3.4	Main mole Composition%	C1:5.63% C2:6.71% C3:11.14% C4:15.53% C5:17.44% C6:17.18% C7:18.97% C8:6.41% C9:0.87
3.5	NGL Heat value	HHV: 48.74MJ/kg LHV: 45.33MJ/kg
4	Venting Acid Gas
4.1	Venting Acid Gas Flow	90Nm³/h(4.16TPD)
4.2	Main mole Composition	CmHn:0.74% CO2:93.76% H2O:5.5%

General Scope of Supply by Seller

Technological Process Packaging Design (incl. design for process package, instrument control, electrical control and static equipment)

Design for Skid Modules

Selection of Outsourcing Equipment within Seller’s Scope of Supply

Supply of Equipment and Transportation up to FOB Delivery Point within Seller’s Scope of Supply

Supervision for Erection & Commissioning; Training (Optional, Subject to final Commercial Agreement)

......

For More, please contact us directly
