Mica Heater:
DRAGONPOWER mica heaters are heater bands with mica insulation that are employed in the heating of the plastification cylinders of the plastic moulding machines, Dies, Drums, Tanks, Injection and Blow Moulding Machinery and Plastic Extruders . They can be used when the operational temperature does not exceed 280°C. Thanks to the most advanced technical solutions, to the selection of the most appropriate materials and to the severe quality control procedures.
Types of mica heater:
Mica heater with unpolished stainless steel sheath
Mica heater with polished stainless steel sheath
Mica heating plate
Mica band heater
Features of mica heater:
Optimum heat conduction and uniform heat distribution
High electrical insulation
Constant Efficiency during lifetime
Easy installation
Great mechanical resistance to shocks and to tearing applied to the cables
Tight manufacturing tolerances
Long Operational Life.
Reference table for mica heater:
Model |
Dimension(mm) |
Voltage(V) |
Power(W) |
LK-YM-Φ55Χ80 |
Φ55Χ80 |
230 |
800 |
LK-YM-Φ120Χ141 |
Φ120Χ141 |
230 |
2000 |
LK-YM-Φ120Χ51 |
Φ120Χ51 |
230 |
520 |
LK-YM-Φ80Χ60 |
Φ80Χ60 |
230 |
775 |
LK-YM-Φ58Χ43 |
Φ58Χ43 |
230 |
250 |
LK-YM-Φ90Χ51 |
Φ90Χ51 |
230 |
300 |
LK-YM-Φ185Χ51 |
Φ185Χ51 |
230 |
1100 |
LK-YM-Φ130Χ66 |
Φ130Χ66 |
230 |
1000 |
LK-YM-Φ165Χ66 |
Φ165Χ66 |
230 |
1100 |
LK-YM-Φ160Χ70 |
Φ160Χ70 |
220 |
1000 |
LK-YM-Φ230Χ90 |
Φ230Χ90 |
220 |
2200 |
LK-YM-Φ154Χ94 |
Φ154Χ94 |
220 |
1500 |
LK-YM-Φ152Χ100 |
Φ152Χ100 |
220 |
1500 |
LK-YM-Φ180Χ80 |
Φ180Χ80 |
220 |
1300 |
LK-YM-Φ265Χ75 |
Φ265Χ75 |
220 |
1500 |
LK-YM-Φ90Χ180 |
Φ90Χ180 |
220 |
1700 |
LK-YM-Φ90Χ60 |
Φ90Χ60 |
220 |
550 |
LK-YM-Φ120Χ80 |
Φ120Χ80 |
220 |
1100 |
LK-YM-Φ190Χ135 |
Φ190Χ135 |
220 |
3000 |
LK-YM-Φ185Χ75 |
Φ185Χ75 |
220 |
1500 |
LK-YM-Φ280Χ48 |
Φ280Χ48 |
220 |
1500 |
LK-YM-Φ300Χ100 |
Φ300Χ100 |
220 |
2500 |
LK-YM-Φ320Χ100 |
Φ320Χ100 |
220 |
3000 |
LK-YM-Φ165Χ45 |
Φ165Χ45 |
220 |
800 |
LK-YM-Φ180Χ45 |
Φ180Χ45 |
220 |
900 |
LK-YM-Φ65Χ30 |
Φ65Χ30 |
220 |
200 |
LK-YM-Φ230Χ45 |
Φ230Χ45 |
220 |
1000 |
LK-YM-Φ55Χ100 |
Φ55Χ100 |
230 |
1000 |
LK-YM-Φ80Χ70 |
Φ80Χ70 |
230 |
650 |
LK-YM-Φ70Χ70 |
Φ70Χ70 |
230 |
600 |
LK-YM-Φ85Χ45 |
Φ85Χ45 |
230 |
530 |
LK-YM-Φ110Χ100 |
Φ110Χ100 |
230 |
150 |
LK-YM-Φ102Χ70 |
Φ102Χ70 |
230 |
700 |
Note: Other models of mica heaters are available according to your specifications. | |||

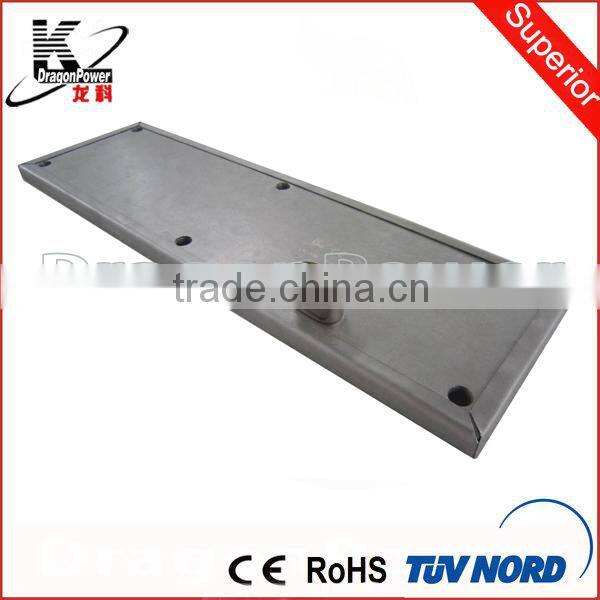

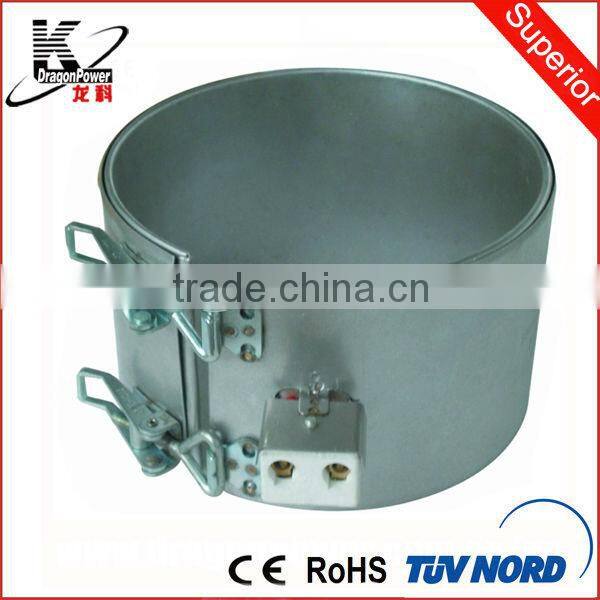

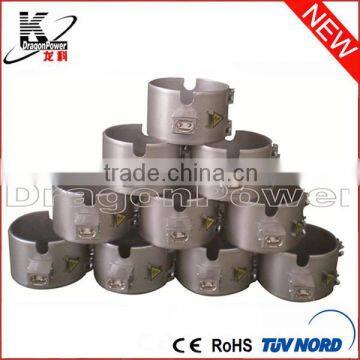

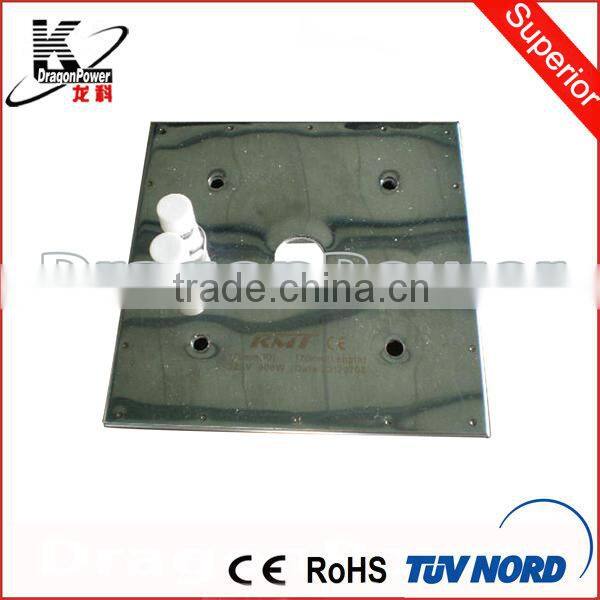

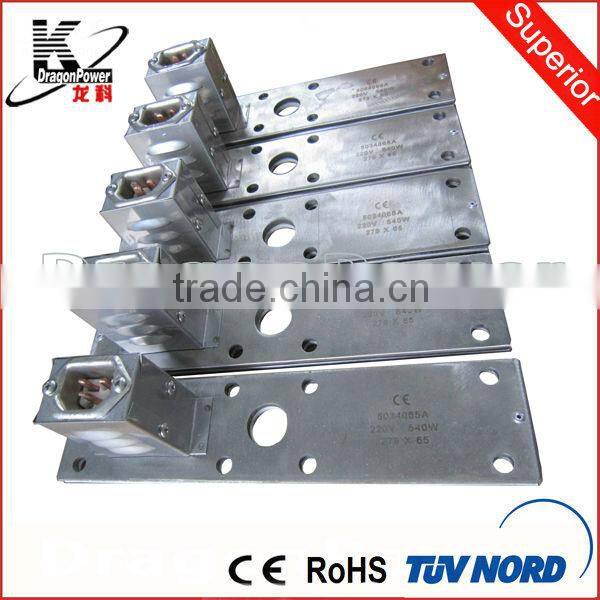

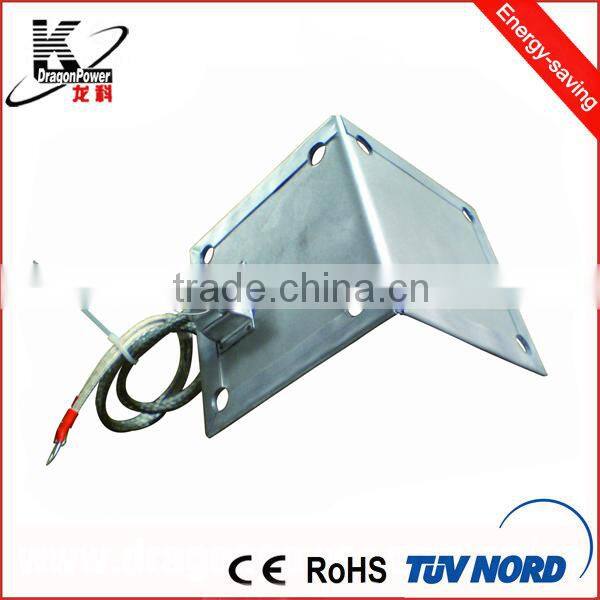

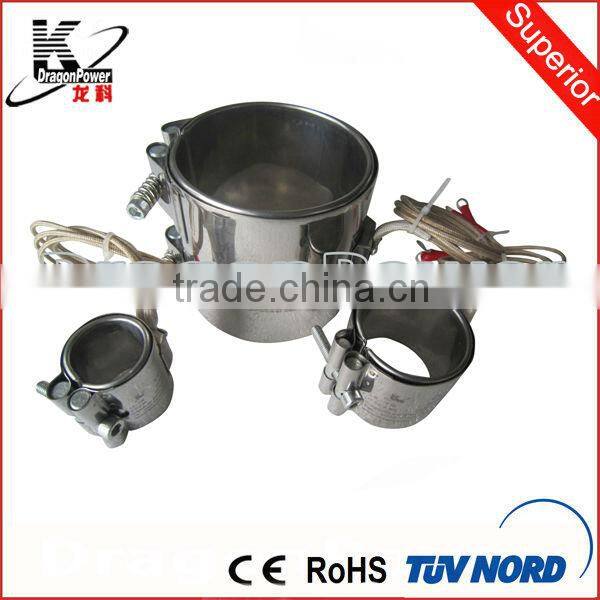

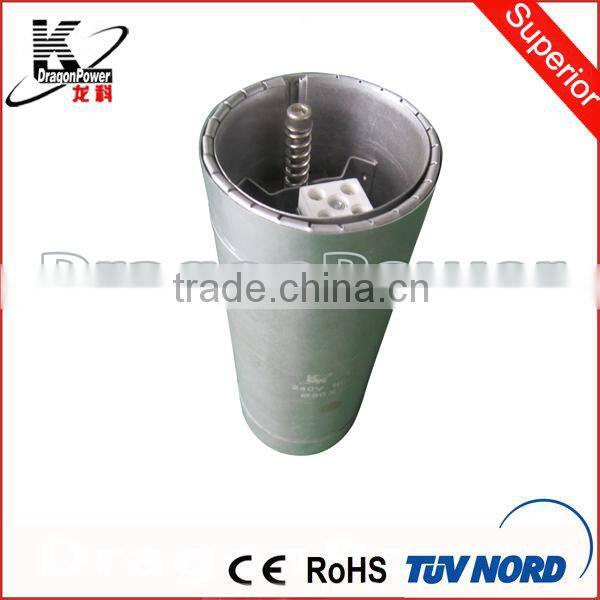

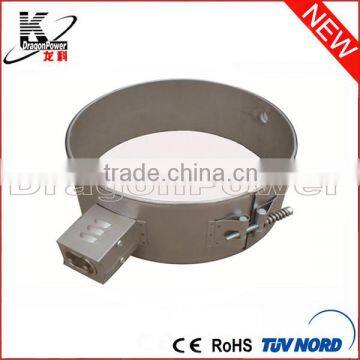

Pictures of Mica heater:
Plywood case or paper carton for mica heater.
1. Customized service
2. One year warranty period
3. Professional purchasing guid
4. Technial support
DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services. The other services we are committed to offer include:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.
Located in Yancheng, Jiangsu, 3 hour drive away from Shanghai, the company covers an area about 27,000 square meters and has over 30 years of experience in this industry.
DragonPower had passed ISO9001 and CE certificate. It applies strict test and control over every single part of the products as well as every processing step, ensuring that our products have longer lifetime, better insulation, more even heating and longer thermal inertia.
Our company has been authorized the import and export rights. Our products are sold to Europe, Australia, the US, South East Asia, Taiwan etc. So far, overseas market contributes about 30% of our annual sales. Now we hope to further develop our customer base abroad and continuously maintain win-win relationship with everyone of you.
Order Guide of mica heater:
Please specify the following when ordering:
- The diameter (mm) of heaters (inner diameter for external heating or external diameter for internal heating)
- Width of heaters
- Type, length and position of leads
- The position and size of the hole for connecting thermocouple OR of the incision.
- Voltage and power density
- One piece OR two piece
- Special gap between two pieces
- Content of the laser stamping on the sheath of heaters if needed
- Order quantity
- Delivery date
* It’s better to provide us with the drawings/pictures
