YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale

YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale thumbnail-1
YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale thumbnail-2
YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale thumbnail-3
YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale thumbnail-4
YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale thumbnail-5
YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale thumbnail-6
YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale photo-1
YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale photo-2
YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale photo-3
YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale photo-4
YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale photo-5
YEMOO 50hp Bitzer R22 Refrigeration Semi-hermetic Piston Compressor for Sale photo-6
US$ 400 - 3,000 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Type:
Compressor
Place of Origin:
Zhejiang, China
Brand Name:
YEMOO
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shangai / Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Compressor
Place of Origin Zhejiang, China
Brand Name YEMOO
Model Number YMBF6-501 piston compressor for sale
Certification CE, ROHS
After-sales Service Provided Overseas third-party support available



Product Description



1. Features:



1) Introdution

Developed technology, compact dimensions

Small volume and space

High precision machining to ensure the compressor confirm with the standard

CNC processing center

Concentricity due to specific processing technology

Minimal dead space

Steady operation, small vibration and low noise

Excellent stability

Refrigerant like R22 and R404 are adopted to protect the environment

For mid&low temperature application

Electrical motor protect device

PTC sensor

Wear resistant driver gear

Chrome plated piston rings and aluminum pistons

Hardened crank-shaft

Low friction bearing set

Efficient valve plate design, high refrigerating capacity and low energy consumption

Efficient compression rate

Valve reed made of imported impact resistant spring steel

General spare parts, convenient for maintenance



2)Wide range of application

piston compressor for sale uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to the international environment protection requirement. The machine can be used at a low or high condensing temperature.



3)Excellent performance

piston compressor for sale has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.



4)Reliable safety device

piston compressor for sale is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and  piston compressor for sale and the operation beyond approved application pressure.



2.Accessories of YEMOO Condensing unit:



Note: Our connecting welding rod is using Harris imported from USA. Other spare parts can based on the customer's requests.





  compressor for cold room

Technical Data



Model Condensing Temperature oC   Refrigerant gas :R22        Refrigerating Capacity QO (W)         Power Consumption Pe(KW)
 Evaporating Temperature oC
  12.5 10 7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40
YMBF6-400 30 Qo           106100 86800 70100 55900 43800 34000 25100 17600
Pe           27.40 25.50 23.50 21.20 18.92 17.07 14.95 12.96
40 Qo           95300 77700 62600 49650 38700 29150 20900 13960
Pe           31.90 29.50 27.00 24.30 21.40 18.61 15.80 13.06
50 Qo           85100 69200 55600 43600 33250 24450 17060 10890
Pe           36.40 33.50 30.40 27.04 23.71 20.21 16.60 12.94
YMBF6-501 30 Qo 201400 184800 169400 155000 129100 106700 87300 70600 56300 44150 33900
Pe 31.90 31.40 30.80 30.20 28.70 27.10 25.30 23.30 21.20 18.97 16.66
40 Qo 181700 166700 152800 139800 116300 95900 78300 63100 50100 39050 29700
Pe 37.60 36.90 36.10 35.20 33.30 31.30 29.00 26.60 24.00 21.30 18.44
50 Qo 163200 149700 137100 125300 104100 85700 69700 56000 44250 34250
Pe 43.00 42.10 41.10 40.10 37.90 35.50 32.80 29.90 26.80 23.50





  compressor for cold room

Model Condensing Temperature oC Refrigerant gas :R404a-R507a     Refrigerating Capacity QO (W)         Power Consumption Pe(KW)
 Evaporating Temperature oC
  7.5 5 0 -5 -10 -15 -20 -25 -30 -35 -40 -45
YMBF6-400E 30 Qo       118800 98100 80100 64700 51400 40100 30500 22400 15600
Pe       31.46 29.74 27.69 25.37 22.84 20.14 17.34 14.49 11.63
40 Qo       100900 83100 67600 54300 42800 32950 24600 17570 11680
Pe       36.00 33.43 30.59 27.55 24.36 21.06 17.73 14.40 11.14
50 Qo         68300 55300 44050 34300 26050 18990 13060
Pe         36.68 33.08 29.33 25.49 21.62 17.76 13.98
YMBF6-501E 30 Qo 184400 169300 142200 118600 98100 80400 65200 52100 40900 31400 23450
Pe 36.24 35.76 34.49 32.87 30.95 28.79 26.43 23.94 21.38 18.79 13.26
40 Qo 157900 145000 121700 101300 83600 68300 55000 43600 33850 25600 18620
Pe 43.13 42.10 39.80 37.22 34.43 31.47 28.40 25.28 22.15 19.09 16.14
50 Qo 131000 120200 100800 83800 68900 56000 44800 35150 26950 19960 14090
Pe 49.80 48.21 44.85 41.30 37.60 33.83 30.02 26.24 22.53 18.97 15.59





YEMOO 50hp bitzer r22 refrigeration semi-hermetic piston compressor for sale



 YEMOO 50hp bitzer r22 refrigeration semi-hermetic piston compressor for sale

  compressor for cold room

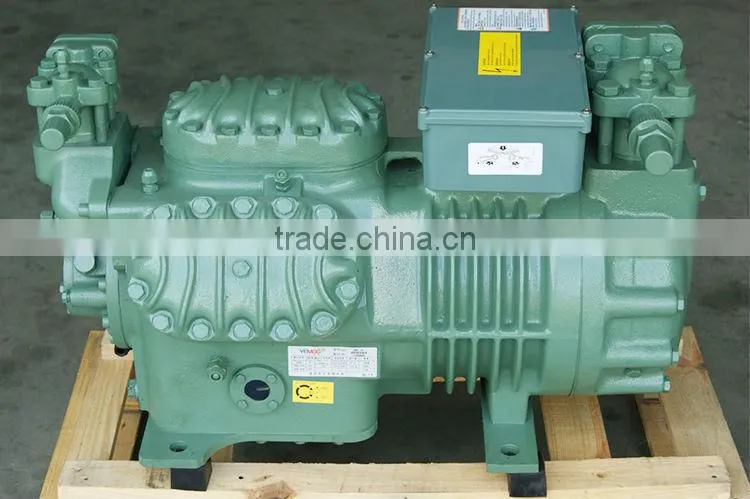

Detailed Images

 YEMOO 50hp bitzer r22 refrigeration semi-hermetic piston compressor for saleYEMOO 50hp bitzer r22 refrigeration semi-hermetic piston compressor for saleYEMOO 50hp bitzer r22 refrigeration semi-hermetic piston compressor for sale













Packaging & Shipping













Our Services



1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong  technique  support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.



So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.
