Immersion water heaterHigh or low watt density
Rapid heat transfer
Economic
Explosion resistant juction boxes are available
Immersion water heater intruduction:

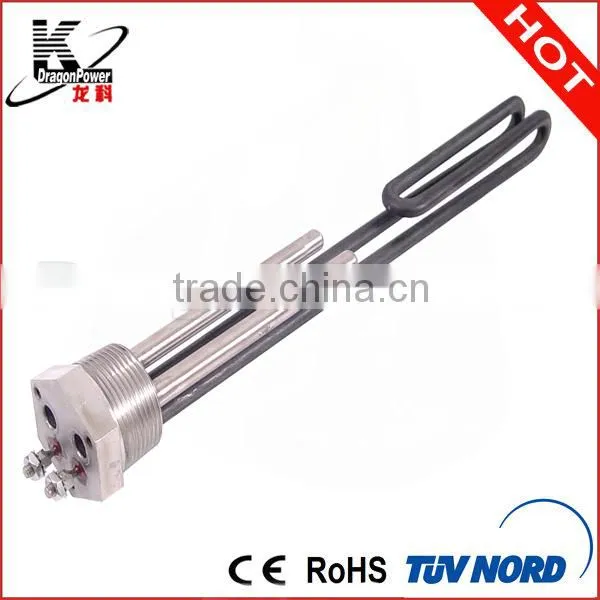

Immersion water heaters consist of hairpin tubular elements welded or brazed into an ANSI pipe flange & provided with wiring boxes for electrical connections. Designed for use in tanks and pressurized vessels, portable electric immersion water heaters are commonly used for heating gases & liquids such as water, oil, heat transfer fluid, and corrosive solutions.
Selection suggestion:
Be sure the element sheath material & watt density is compatible with the medium being heated. Listed below are the most common flange sizes, however, other sizes and watt densities are available. We have the capability to design and manufacture to your specifications, with a minimal lead time.
High Watt Density Immersion Water Heater:
Immersion water heaters are used in industrial water boilers and storage tanks. They feature high watt density for rapid heat transfer. The steam boiler heaters feature the highest quality, high nickel Incoloy sheath that provides the highest practical protection available against hard water containing minerals, scale and salts while resisting stress, corrosion, cracking, and sulphur attack. The water heater has a copper sheath and copper face plate. These heaters are not supplied with enclosures since they are normally mounted in boilers or tanks which have a surrounding enclosure for terminal protection.
Example:
Wattage: 5 to 18 kW Power: 208 and 240 or 480VAC, 3 Phase Watt Density: 79-184 W/in2 Sheath: 0.315" dia. Incoloy (steam boiler heater) or copper (water heater).
Low Watt Density Immersion Water Heaters:
LOW WATT DENSITY FLANGE HEATERS AT 23 WATTS/ SQ. INCH
- Applications: 304SS & 316SS-lightweight oils, degreasing solutions,
heat transfer oils. - Incoloy - forced air & gases, caustic solutions, degreasing solutions.
- Titanium - seawater, brine, chromic acid.
STANDARD WATT DENSITY FLANGE HEATERS AT 48 WATTS SQ. INCH
- Applications: 304SS & 316SS-process water.
- Incoloy - deionized water, demineralized water.
- Titanium -seawater, brine, chromic acid, nitric acid.
Plywood case or paper carton.
Customized service
One year warranty period
Professional purchasing guid
Technial support
DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services. The other services we are committed to offer include:
1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.

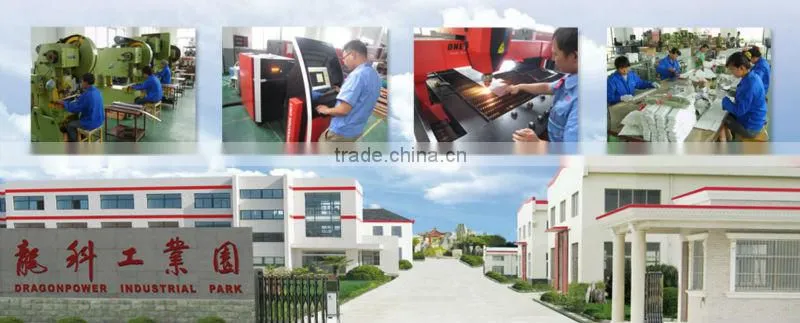

Located in Yancheng, Jiangsu, 3 hour drive away from Shanghai, the company covers an area about 27,000 square meters and has over 30 years of experience in this industry.
DragonPower had passed ISO9001 and CE certificate. It applies strict test and control over every single part of the products as well as every processing step, ensuring that our products have longer lifetime, better insulation, more even heating and longer thermal inertia.
Our company has been authorized the import and export rights. Our products are sold to Europe, Australia, the US, South East Asia, Taiwan etc. So far, overseas market contributes about 30% of our annual sales. Now we hope to further develop our customer base abroad and continuously maintain win-win relationship with everyone of you.
Order Guide:
Please specify the following when ordering:
- The diameter (mm) of heaters (inner diameter for external heating or external diameter for internal heating)
- Width of heaters
- Type, length and position of leads
- The position and size of the hole for connecting thermocouple OR of the incision.
- Voltage and power density
- One piece OR two piece
- Special gap between two pieces
- Content of the laser stamping on the sheath of heaters if needed
- Order quantity
- Delivery date
* It’s better to provide us with the drawings/pictures
