Flanged immersion heater

Specifications

Flanged immersion heater

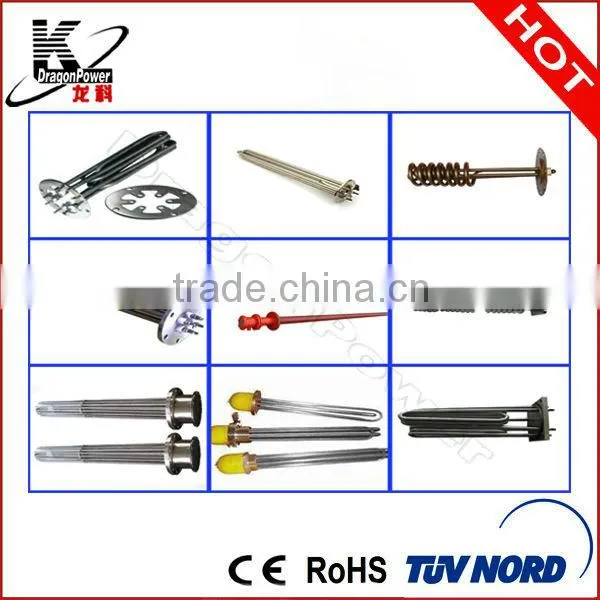

Flanged immersion heater are used by the process heat industry for a wide range of applications. This type features a broad selection of screw plug sizes, wattage, materials and junction box types. Screw plug heaters may be threaded directly into a sufficient tank wall or used with a companion coupling.

Type:

thread flange and plate flange immersion heater

Common voltage: 200V-220V-380V

Power: depend on sizes, 3KW-4.5KW-6KW-8KW-9KW-10KW-12KW-15KW-18KW-21KW, ect

Construction: Composed of 3, 6, or 9 U type tubular heater and flange, welding method: TIG argon arc

Sizes of flange:

Thread flange: M47 x 2.5mm, M58 x 2.5

Plate flange: DN32-DN40-DN50-DN65-DN80-DN100-DN125-DN150-DN200-DN250-DN350-DN400-DN450, JIS150 ect.

Advantage:

1. Small volume, high power

2. Can be used in any cases to heating all kinds of material, such as explosion-proof occasions

3. Heating temperature could reach 700°C

4. Heating system could be controlled automaticly, including controlling the heater by DCS system

5. Long lifetime, and with multiple protection system, safe to use

Applications:

C = Copper Sheath
Hot Water Storage for washrooms, showers, part washing or rinsing, freeze protection of sprinkler systems and cooling towers.
SA = 304 Stainless Steel
Tanks or processes with tar, asphalt, wax, heat transfer fluids, oil and other petroleum products, fuel oil, alcohol, caustic, and other "heavy" mediums.
SB = 316 Stainless Steel
Detergent based cleaning solutions, liquid ammonia, vegetable oil, Deionized water, electroless nickel and other alkaline plating solutions.
T = Titanium
Seawater, brine, chromic acid, Deionized water.
N = Incoloy ®
Air and many gases, Deionized water and other high temperature processes.
TF = Teflon ®
Hydrofluoric acid,ammonia bi-fluoride, Deionized water.

Installation Recommendations

• Select the heater size best suited for your application.
• Choose the appropriate watt density for the solution.
• Choose the proper sheath for the solution being heated to avoid corrosion.
• Uniform heat distribution in larger tanks is enhanced by the use of several heaters rather than one large heater.
• Protect heaters and tank against liquid level drops with safety controls.
• Clean heaters periodically to avoid premature failure.
• Avoid physical damage to heaters.
• Mount all heaters securely.
• Use the appropriate terminal box for each application.
• Select an appropriate temperature control.
• Electrical wiring should be in accordance with national and local codes.
• Contact us for any sales or service questions or problems.

Note:

• Heaters available with special wattage and voltage.
• Excellent selection for vapor degreasing systems.
• Low watt density for oil heating.
• Easily installed with a wrench.
• Thermostat control available.
• Excellent choice for jacketed process tanks.
• Provides freeze protection in outdoor environment.
• UL Listed / CSA Certified up to 18 KW, 600 VAC.
• Applied for pipeline heating.
• Prompt delivery.
• 100% Utilization of energy.
• Minimum resistance to free flow and circulation to heated solutions.
• Electropolish available.

Plywood case or paper carton.

Customized service

One year warranty period

Professional purchasing guid

Technial support
