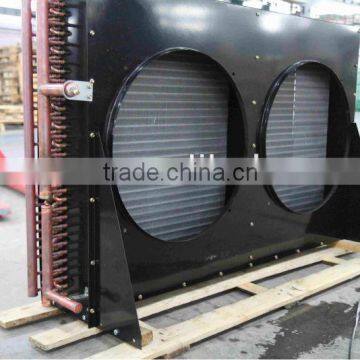

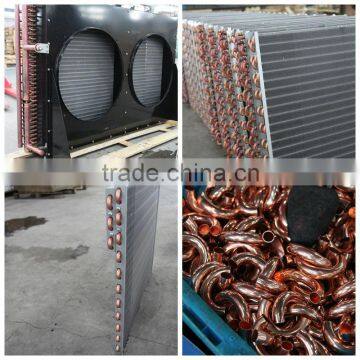

Help CenterHangzhou 10hp Outdoor Power Equipment Part/air Conditioning Units With Cooling System
Related Products
-
Hangzhou Yemoo Air Cooled Water Chiller Monoblock Refrigeration Unit for Cold Storage RoomUS$ 680 - 2,800MOQ: 1 Piece -
Hangzhou 3.6kw 5hp Cooling Systems/chiller System Air Conditioning UnitsUS$ 680 - 2,800MOQ: 1 Piece
-
3.6kw 5hp Zhejiang Hangzhou Yemoo Semi-hermetic Piston Monoblock Cold Room Unit for SaleUS$ 680 - 2,800MOQ: 1 Piece
-
3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling SystemUS$ 800 - 1,800MOQ: 1 Piece
-
3hp 2.2kw Hangzhou Yemoo Refrigerated Wall Mounted Indoor Small Cold Room Refrigeration UnitUS$ 680 - 2,800MOQ: 1 Piece
Characteristics:
1. Air conditioning units for medium & high temperature (environment +12℃~ -10 ℃)
2. Air conditioning units for low temperature & frozen environment (-10℃ ~ -30℃)
3.Equipped with YEMOO semi-hermetic piston compressor
4.Air cooled condensers are punched by high velocity ram machine. Folded by secondary
operation:condenser coils are expanded by mechanical tube expansion to obtain high heat exchanging capacity.
5.Shell &tube water condensers use high efficient wire-whorled copper pipes which can highly increase condensers’ heat exchanging efficient. Take small volume and keep light weight All condensers are produced and inspected strictly based on “Pressure Vessel of Refrigeration equipment” to ensure products’ quality.
6.Equipped with well-known brand of refrigeration parts:
1)Normal configuration of air conditioning units :filter drier, solenoid valve, double pressure controller, high & low pressure meter.
2)Standard configuration of air conditioning units:vibration absorber, oil separator, filter drier, sight glass. solenoid valve, double pressure controller, high & low pressure meter.
7.We offer additional parts to meet your special requests.
Other components of air conditioning units:
Receiver, solenoid valve, dry filter, sight glass, higher pressure meter, low pressure meter, pressure controller, unit frame
Optional components:
Shock absorber, oil separator, gas liquid separator
If you need any further information, please feel free to contact us.
We offer customize service, OEM welcomed!
| Technical data | Air cooling condensing unit for medium & high temperature | |||||
| Unit model | YMC2-030A | YMC2-040A | YMC2-050A | YMC2-080A | YMC2-100A | YMC3-150A |
| Compressor model | YMC2-030 | YMC2-040 | YMC2-050 | YMC2-080 | YMC2-100 | YMC3-150 |
| Norminal motor power (KW) | 2.2 | 3 | 3.7 | 5.88 | 7.35 | 11 |
| Displacement (W) | 5314 | 6622 | 8745 | 12334 | 17746 | 25774 |
| Refrigerant | R22 | |||||
| Power | 380/400V-3PH-50Hz | |||||
| Starting Current (A) | 30-32 | 38-44 | 53-58 | 74-81 | 112-126 | 162-184 |
| Max Operating current(A) | 5.7 | 7.6 | 8.6 | 15 | 17.6 | 24.3 |
| Crankcase heater (W) | 60 | 60 | 60 | 120 | 180 | 180 |
| Power of condensina fan motor | 180 | 250 | 250 | 370 | 250x2 | 370x2 |
| Fan motor working current | 0.4 | 0.55 | 0.55 | 0.8 | 0.55x2 | 0.8x2 |
| Range of Eva. Temp.(oC) | 0 ~ -20 oC | |||||
| Fitting environment Temp.(oC) | +0 ~ -10 oC | |||||
| Dimension and installing dimension | Condenser | Receiver | Dimension | Installation Size | Connecting tube | Weight | ||||
| Air Cap. | Volume | A | B | C | E | F | Air Inlet | Liquid | ||
| Model | M3/h | dm3 | mm | mm | mm | mm | mm | Ø(mm) | Ø(mm) | kg |
| YMC2-050A | 15 | 930 | 930 | 610 | 870 | 640 | 25 | 12 | 180 | 168 |
| YMC2-080A | 17 | 1078 | 970 | 635 | 1018 | 680 | 32 | 16 | 250 | 249 |
| YMC2-100A | 20 | 1150 | 1030 | 760 | 1090 | 740 | 32 | 16 | 284 | 325 |
| YMC3-150A | 22 | 1130 | 1070 | 982 | 1070 | 780 | 38 | 19 | 350 | 376 |
1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.
2.We insist on innovation,purchasing the international quality materials,strong technique support,strictly control the production.
3.We firmly believe quality first,perfect production responsibility system.
4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.
So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.
Yemoo's value is what we supply you is not only products,but also creating you most value.
