3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling System

3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling System thumbnail-1
3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling System thumbnail-2
3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling System thumbnail-3
3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling System thumbnail-4
3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling System thumbnail-5
3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling System photo-1
3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling System photo-2
3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling System photo-3
3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling System photo-4
3.6kw 5HP Hangzhou YEMOO U-box Type Portable Box Type Condensing Unit With Mini Refrigerator Refrigeration Cooling System photo-5
US$ 800 - 1,800 MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Other, condensing unit, portable box type condensing unit
Place of Origin:
Zhejiang, China
Brand Name:
YEMOO(portable box type condensing unit)
Contact Supplier Request Quote Chat Now
Hangzhou Yemoo Refrigeration Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanshai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, condensing unit, portable box type condensing unit
Place of Origin Zhejiang, China
Brand Name YEMOO(portable box type condensing unit)
Model Number YMB4-050U
Certification CE, ROHS
After-sales Service Provided Overseas third-party support available



Product Description



 Features of portable box type condensing unit:



1. Portable box type condensing unit , compact structure and good-looking figure;



2.Scientific designs, steady air flow, can fully exert heat-transfer capacity of the portable box type condensing unit;



3.Rational performance design, high energy efficiency;



4.Axial fan, good-looking figure, low processing noise level;



5.Convenient design for maintain (front board can be easily take down);



6.We keep in touch well with our portable box type condensing unit supplier,

    to guarantee material quality and production lead time of every order.



7.Various brand of compressor for your choice;



8.Fits different refrigerant: R134a·R404A·R507A·R22





Range of application of portable box type condensing unit:



Refrigeration industry, cold-room project

Agricultural, food, restaurants, chemical industry







Technical Data



Technical data Box type condensing unit with U type condenser
Unit model YMB4-050U YMB4-080U YMB4-100U YMB4-120U YMB4-150U YMB4-200U YMB4-250U YMB6-300U
Compressor model YMB4-050 YMB4-080 YMB4-100 YMB4-120 YMB4-150 YMB4-200 YMB4-250 YMB6-300
Rated input power (HP) 5 8 10 12 15 20 25 30
Titular refrigeration capacity (W) 7284 12333 14722 16796 21250 24565 31535 36380
Refrigerant R22
Power 380V-3PH-50Hz
Rated input current (A) 62.2 81 99 113 132 158 193 220
Max Operating current(A) 13.5 17 21 24 31 37 45 53
Power of crankcase heater (W) 0 ~ 120 140
Power of condensina fan motor 330 160x2 230x2 230x2 450x2 600x2 520x2 830x2
Fan motor working current 0.8 0.5x2 0.6x3 0.6x3 0.9x2 1.2x2 1.5x2 1.6x2
Range of Eva. Temp.(oC) +5 ~ -40 oC
Fitting environment Temp.(oC) +10 ~ -35 oC



 3.6kw 5HP hangzhou YEMOO U-box type portable box type condensing unit with mini refrigerator refrigeration cooling system

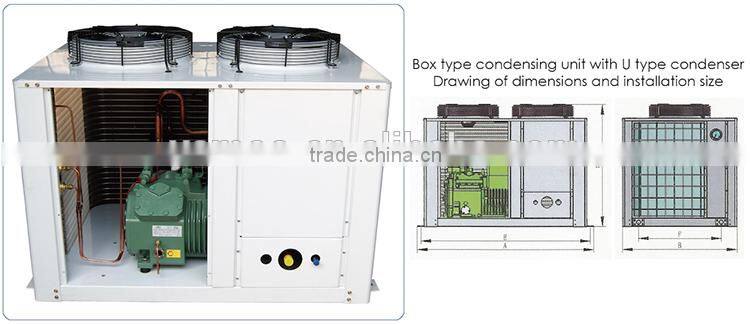

Dimension and installing dimension Receiver Dimension Installation Size Connecting tube Weight
Volume A B C E F Air Inlet Liquid
Model dm3 mm mm mm mm mm Ø(mm) Ø(mm) kg
YMB4-050U 8 990 753 857 950 530 1-1/8  1/2 133
YMB4-080U 12 1240 803 852 1200 580 1-3/8  5/8 195
YMB4-100U 14 1500 854 867 1460 630 1-3/8  5/8 210

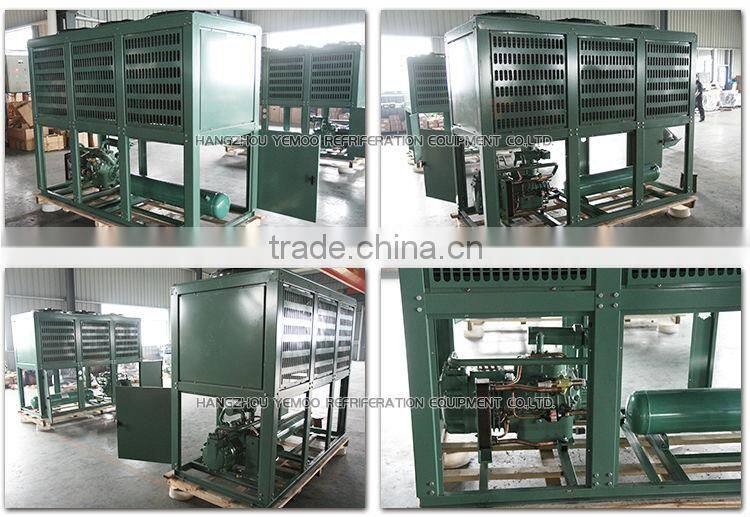

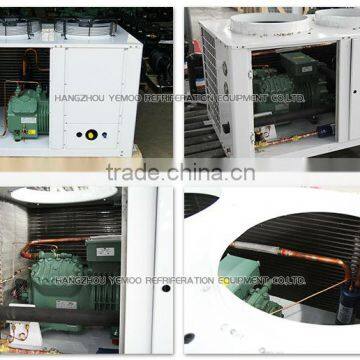

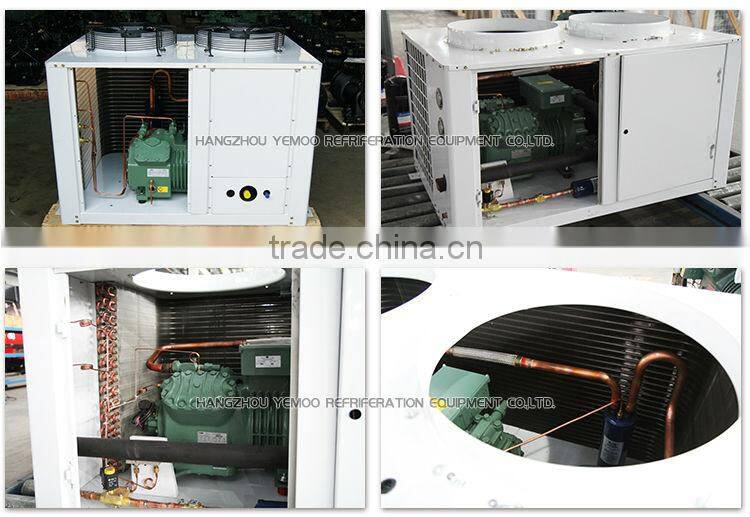

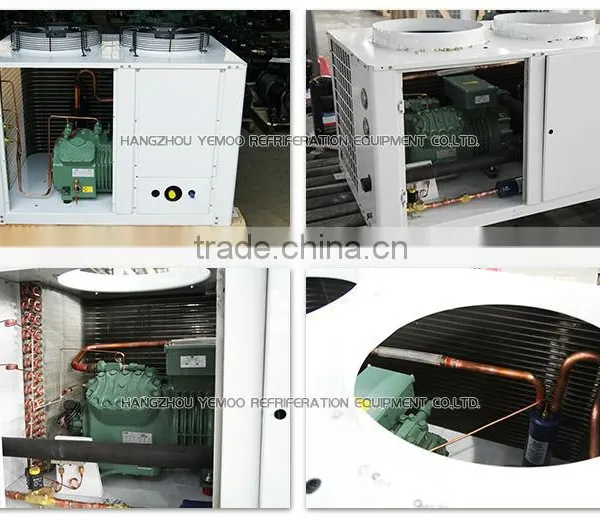

Detailed Images

 3.6kw 5HP hangzhou YEMOO U-box type portable box type condensing unit with mini refrigerator refrigeration cooling system3.6kw 5HP hangzhou YEMOO U-box type portable box type condensing unit with mini refrigerator refrigeration cooling system





Packaging & Shipping



3.6kw 5HP hangzhou YEMOO U-box type portable box type condensing unit with mini refrigerator refrigeration cooling system





Our Services



1.We are Professional factory to make semi-hermetic compressor and condensing unit more than 10 years.

2.We insist on innovation,purchasing the international quality materials,strong  technique  support,strictly control the production.

3.We firmly believe quality first,perfect production responsibility system.

4.We promise all Yemoo brand products,we supply 3 months new products guarantee replacement,12 months quality guarantee service.



So,what Yemoo can support you ? It's best price ratio products,perfect after-sales service guarantee.

Yemoo's value is what we supply you is not only products,but also creating you most value.







Certifications







Our workflow



3.6kw 5HP hangzhou YEMOO U-box type portable box type condensing unit with mini refrigerator refrigeration cooling system3.6kw 5HP hangzhou YEMOO U-box type portable box type condensing unit with mini refrigerator refrigeration cooling system
