Heating panel (manufacturer)

Specifications

Heating panel:

We manufacture a comprehensive range of high quality Mica / Aluminum / brass heating panel in flat, 'L' form, 'U' form or frame configurations which are all tailored to suit each individual customer's requirements.

All heaters are custom-made to include fixing holes, Thermocouple holes, eyebolt holes and cutouts. Threaded bridges to accommodate Thermocouples can also be included. All voltage combinations including 3 phase can be manufactured.

Numerous termination options such as terminal boxes, 2 pin or 3 pin sockets and flying leads can be fitted.

In addition Mica versions can be supplied with separate re-useable clamp plates in both flat & frame constructions. Brass liners & insulating cloths can be included to ensure that they are constructed to the same specification as original tooling heaters.

Technical Specification of heating panel:

Mica heating panel:

Maximum operating temperature of 300°C
Watts density: 20 watts/square inch (3.0 watts/square cm)

Cast Aluminium heating panel:

Maximum operating temperature of 450°C
Watts density: 40 watts/square inch (6.0 watts/square cm)

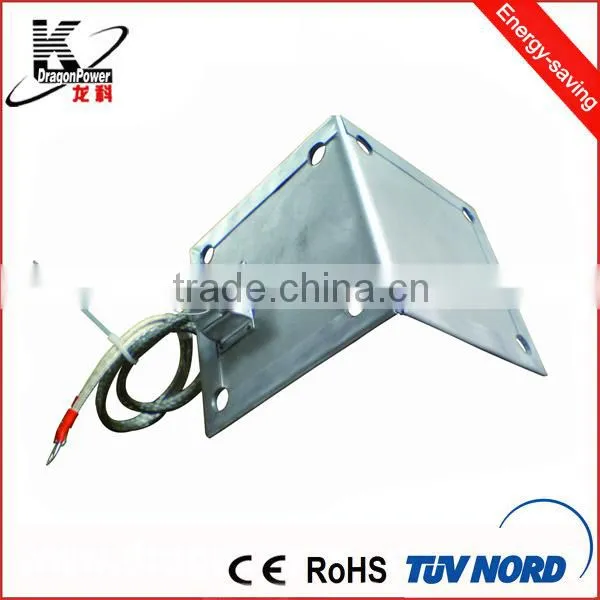

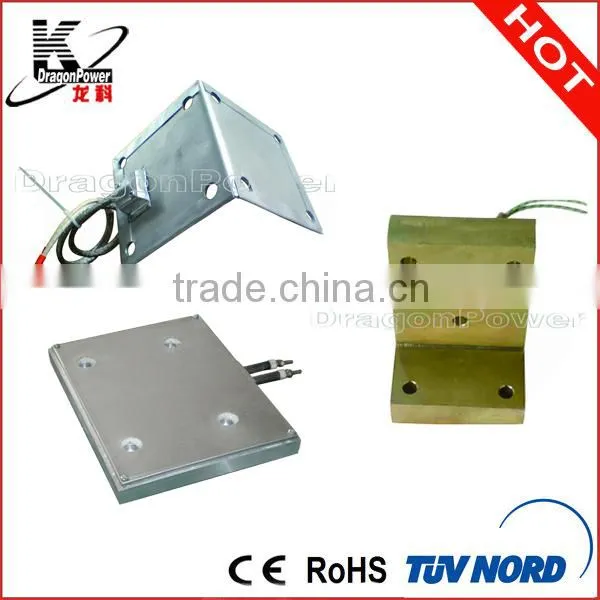

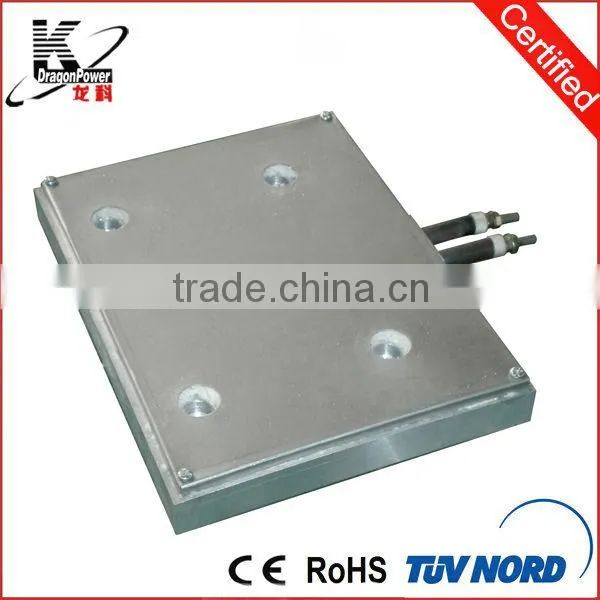

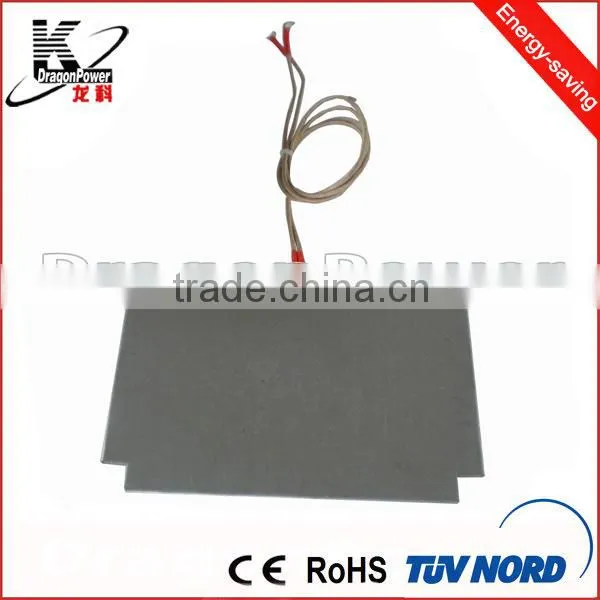

Pictures of heating panel:

Plywood case or paper carton for heating panel.

1. Customized service

2. One to two years warranty period

3. Professional purchasing guid

4. Technial support

DragonPower specializes in producing industrial electric heaters with a strength in R&D. Our products include air cooling & heating system, ceramic heaters, cast aluminum/copper heaters, mica heaters, cartridge heaters, infrared heaters, tubular heaters, immersion heaters, thermocouples, high temperature insulated wires & cables, etc. We provide OEM and design services. The other services we are committed to offer include:

1. Flexibility with minimum order requirements
2. On-time delivery
3. Free replacement if any product quality issues within guarantee period
4. Technical support
5. Simple ordering procedure: Email, fax or mail.

Located in Yancheng, Jiangsu, 3 hour drive away from Shanghai, the company covers an area about 27,000 square meters and has over 30 years of experience in this industry.

DragonPower had passed ISO9001 and CE certificate. It applies strict test and control over every single part of the products as well as every processing step, ensuring that our products have longer lifetime, better insulation, more even heating and longer thermal inertia.

Our company has been authorized the import and export rights. Our products are sold to Europe, Australia, the US, South East Asia, Taiwan etc. So far, overseas market contributes about 30% of our annual sales. Now we hope to further develop our customer base abroad and continuously maintain win-win relationship with everyone of you.

Order Guide of heating panel:

Please specify the following when ordering:

1. The diameter (mm) of heaters (inner diameter for external heating or external diameter for internal heating)
2. Width of heaters
3. Type, length and position of leads
4. The position and size of the hole for connecting thermocouple OR of the incision.
5. Voltage and power density
6. Content of the laser stamping on the sheath of heaters if needed
7. Order quantity
8. Delivery date

* It’s better to provide us with the drawings/pictures
