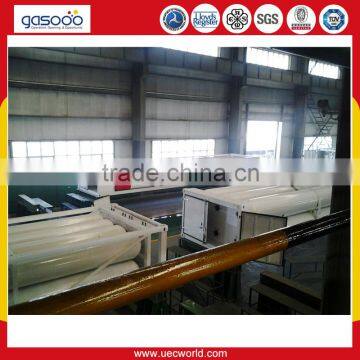

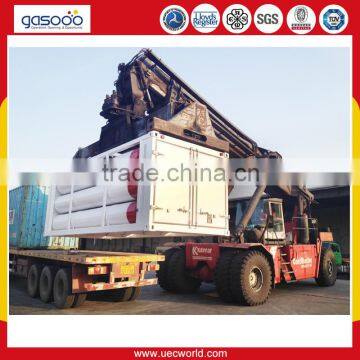

25Mpa Jumbo Storage And Transportation CNG Tube Trailer

Model No.

UEC0825CS-40F

UEC1025CS-40F

UEC1225CS-20F

UEC1225CS-40F

UEC0625CS-40F-711

Cylinder quantity

8

10

12

12

6

Working pressure/MPa

25

25

25

25

25

Cylinder size/mm

OD559*17.4*10975

OD559*17.4*11580

OD559*17.4*5400

OD559*17.4*11580

OD711*22.1*10975

Steel type

4130X/30CrMo

4130X/30CrMo

4130X/30CrMo

4130X/30CrMo

4130X/30CrMo

Working temperature

-20~65℃

-20~65℃

-20~65℃

-20~65℃

-20~65℃

Cylinder weight/KG

2825

2981

1390

2825

4460

Equipment weight /KG

25860

33920

19700

37260

31000

Water volume/M³

17.8

23.33

12.6

27

22.2

Filling gas volume /NM³

^{(CNG as example)}

5300

7000

3700

8030

6600

Loading weight/KG

3800

5019

2654

5760

4736

Total weight/KG

29660

38939

22354

43020

35735

Skid/Trailer dimension

12192*2438*1400

(skid)

12192*2438*2071

(skid)

6058*2438*2010

(skid)

12192*2438*2010

(skid)

12192*2438*1775

(skid)

How about price?

We provide competitive price. Just let us know your market request to choose exact type.

How about delivery time?

It is based on quantity and exact type, from 45-90 days.

How to choose type?

1. Filling gas; 2. Working Pressure; 3. Water Volume; 4.  Road Limitation;

5. Certification request.

How to ensure quality?

Advance quality management assures Uec product the perfect performance including approval of ISO11120, ISO11439, ASME Standards and Lloyd’s , BV, SGS Inspections. Our Clients and end-users have already Indonesian, UAE, African and so on. Also we can manufacture the skid according to your requirement.

How about payment?

TT and L/C are both ok. We also support online order on alibaba or on our online store BUYCYLINDER. Just contact us for details.
