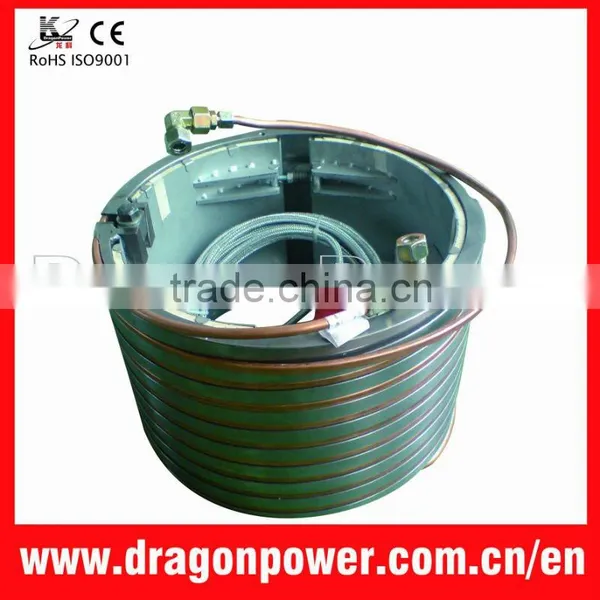

Double Screw Extrusion/extruder Heater

Double Screw Extrusion/extruder Heater thumbnail-1
Double Screw Extrusion/extruder Heater photo-1
Negotiable MOQ: 5 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Screw Design:
Single-screw
Place of Origin:
Jiangsu, China
Contact Supplier Request Quote Chat Now
Yancheng DragonPower Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Screw Design Single-screw
Place of Origin Jiangsu, China
Brand Name DragonPower
Model Number LK-TC

Specifications

Various ceramic band heaters available:
1. Cr20Ni80 wire
2. HIgh watt density
3. ISO9001, CE, RoHS
4. min ID20mm*20mm

Description

Ceramic band heater is mainly used for extrusion, casting and down-stroke machines. The operating temperature can reach up to 600°C. The maximum surface loading rate is 8 W/sqm.Its advantages include fast speed of heating, high rate of heat utilization, excellent energy saving (energy consumption is reduced by 30%), high resistance of high temperature creep, long lifetime, resistance of high temperature and high insulation rate. It is one of the most suiTable: electric heaters for plastic extrusion and injection machines, plastic hollow and blowing machines and chemical fibre moulding machines.



Table

Model

Dimension(mm)

Voltage(V)

Power(W)

Key Technical Indexes

LK-TC-Φ125X51

Φ125X51

230V

500W

1.Use condition: environment temperature -20~+60°C, Relative temperature <80%

2.Leakage current: <0.5MA

3.Insulation resistance:≥5Mo

4.Ground resistance: <0.1o

5.Voltage resistance: no electric breakdown for 1 minute under 1500V

6.Temperature endurance: 500-800°C

7.Power deviation:+5%-10%



LK-TC-Φ105X66

Φ105X66

230V

800W

LK-TC-Φ185X51

Φ185X51

230V

1100W

LK-TC-Φ190X85

Φ190X85

230V

1500W

LK-TC-Φ220X75

Φ220X75

230V

1700W

LK-TC-Φ180X90

Φ180X90

230V

1700W

Note: Other models are available according to your specifications.

Please refer to the Order Guide



Order Guide

Please specify the following when ordering:

  1. The diameter (mm) of heaters (inner diameter for external heating or external diameter for internal heating)
  2. Width of heaters
  3. Type, length and position of leads
  4. The position and size of the hole for connecting thermocouple OR of the incision.
  5. Voltage and power density
  6. One piece OR two piece
  7. Special gap between two pieces
  8. Content of the laser stamping on the sheath of heaters if needed
  9. Order quantity
  10. Delivery date

* It’s better to provide us with the drawings/picturesDouble screw extrusion/extruder heaterDouble screw extrusion/extruder heater
