Specifications
Various industrial heaters available:1. Cr20Ni80 wire
2. ISO9001, CE
3. For industrial, e.g. extrusion, injection, blow mold
Description

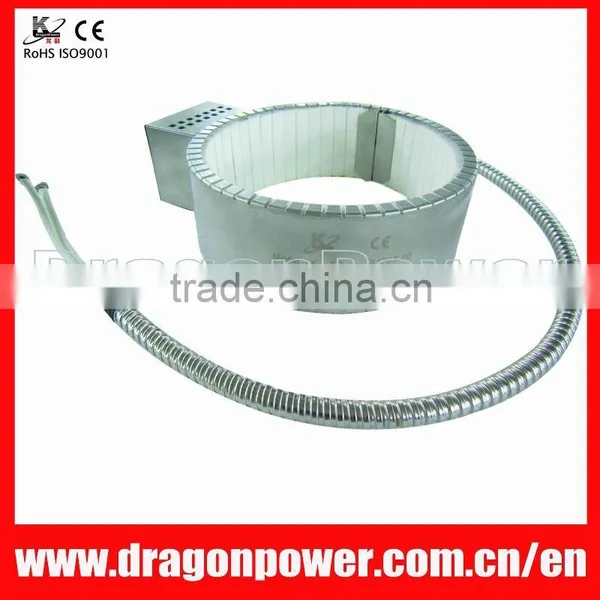

Ceramic band heater is mainly used for extrusion, casting and down-stroke machines. The operating temperature can reach up to 600°C. The maximum surface loading rate is 8 W/sqm.Its advantages include fast speed of heating, high rate of heat utilization, excellent energy saving (energy consumption is reduced by 30%), high resistance of high temperature creep, long lifetime, resistance of high temperature and high insulation rate. It is one of the most suiTable: electric heaters for plastic extrusion and injection machines, plastic hollow and blowing machines and chemical fibre moulding machines.
Table
Model |
Dimension(mm) |
Voltage(V) |
Power(W) |
Key Technical Indexes |
LK-TC-Φ125X51 |
Φ125X51 |
230V |
500W |
1.Use condition: environment temperature -20~+60°C, Relative temperature <80% 2.Leakage current: <0.5MA 3.Insulation resistance:≥5Mo 4.Ground resistance: <0.1o 5.Voltage resistance: no electric breakdown for 1 minute under 1500V 6.Temperature endurance: 500-800°C 7.Power deviation:+5%-10%
|
LK-TC-Φ105X66 |
Φ105X66 |
230V |
800W |
|
LK-TC-Φ185X51 |
Φ185X51 |
230V |
1100W |
|
LK-TC-Φ190X85 |
Φ190X85 |
230V |
1500W |
|
LK-TC-Φ220X75 |
Φ220X75 |
230V |
1700W |
|
LK-TC-Φ180X90 |
Φ180X90 |
230V |
1700W |
|
|
Note: Other models are available according to your specifications. Please refer to the Order Guide | ||||
Application Cases

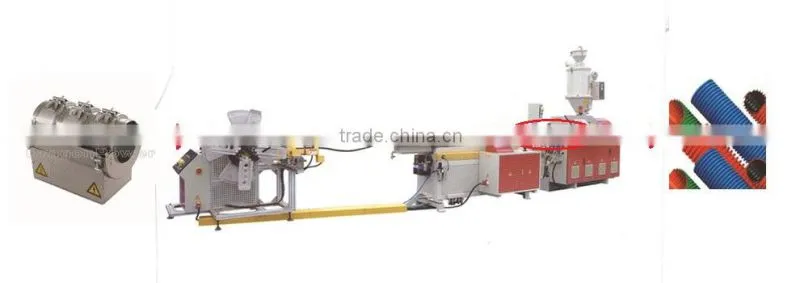

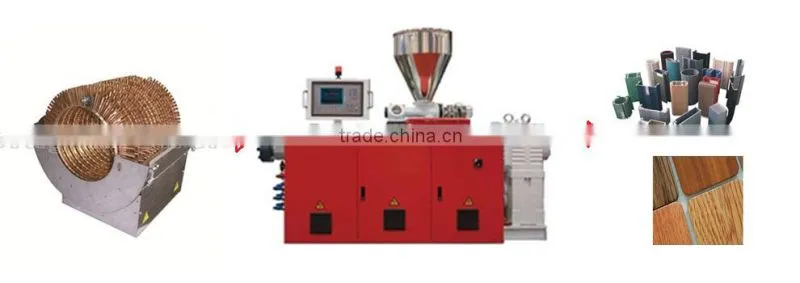

- Plastic injection moulding machine
- Hollow shaping machine/Blow-molding machine
- Extrusion machine/Co-extrusion line
- Raw material processing equipment
- Pelletizing equipment
- Granular machine
Rigorous working and best after-sales services guarantee the first class quality for customers worldwide!
Our factory
Certificates
We will attend 2013 K Show 16.—23. October in Dusselduff Germany
Welcome to visit our booth HALL 16C58 !
Order Guide
Please specify the following when ordering:
- The diameter (mm) of heaters (inner diameter for external heating or external diameter for internal heating)
- Width of heaters
- Type, length and position of leads
- The position and size of the hole for connecting thermocouple OR of the incision.
- Voltage and power density
- One piece OR two piece
- Special gap between two pieces
- Content of the laser stamping on the sheath of heaters if needed
- Order quantity
- Delivery date
* It’s better to provide us with the drawings/pictures
